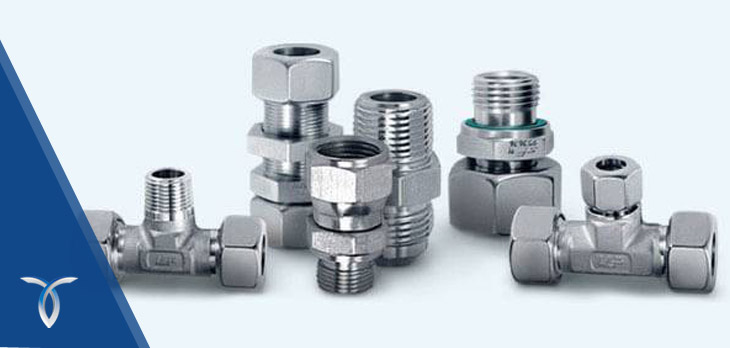

Metallon Pipings FZ LLC is one of the foremost supplier, exporter and trader of an extensive selection of Alloy 20 Tube Fittings which are being widely used in diverse range of industries, including process oil and gas, petrochemical, power generation, military, pharmaceutical, and more.
Cu-Ni UNS C70600 Male Connector Exporter, Copper Nickel 90-10 Caps and Plugs, Cupro Nickel 70/30 Port Connector, Cu-Ni 90/10 Female Elbow, 70/30 Cu-Ni tube 90deg. Elbow, Cu-Ni WERKSTOFF NR. 2.0872 union Tee Exporter in UAE.
We are dedicated to offering a wide assortment of Alloy 20 Tube Fittings & all instrumentation compression tube fittings in a range of corrosion resistant alloy materials, sizes and shapes.
Standard Specification For Alloy 20 Tube Fittings
Specifications
ASTM B366 ASME SB366
Size
6mm to 38mm to 1/4″ to 1 1/2″
Thread
NPT, BSP, BSPT, UNF, ISO, SAE etc.
Standards
ASTM B16 ASTM B453
Alloy 20 Tube Fittings For Chemical Composition
Grade
C
Mn
Si
S
Cu
Ni
Cr
Fe
Mo
P
Alloy 20
0.07 max
2.00 max
1.00 max
0.035 max
3.00 – 4.00
32.00 – 38.00
19.00 – 21.00
29.85 min*
2.00 – 3.00
0.045 max
Alloy 20 Tube Fittings For Mechanical Properties
Element
Density
Melting Point
Tensilee Strength
Yield Strength (0.2%Offset)
Elongation
Alloy 20
8.1 g/cm3
1443 °C (2430 °F)
Psi -80,000, MPa -551
Psi – 35,000, MPa – 241
30 %
Alloy 20 Tube Fittings For Equivalent Grades
STANDARD
WERKSTOFF NR.
UNS
EN
AFNOR
Alloy 20
2.4660
N08020
NiCr20CuMo
Z2NCUD31-20AZ
Alloy 20 Tube Fittings Packaging
Alloy 20 Tube Fittings are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our Alloy 20 Tube Fittings are manufactured in accordance with international standards. Alloy 20 Tube Fittings are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Alloy 20 Tube Fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on Alloy 20 Tube Fittings.
