Manufacturer of API 5L X56 Pipe & API 5L X56 PSL2 Pipe Material in UAE
X56 Pipe is a grade of pipe with a minimum yield strength of 56KPSI and it is stronger than the lower grades in this specification. The specification is monitored by the American Petroleum Institute and there are different grades in it. Metallon Pipings FZ LLC is a exporter and supplier of various grades of pipes in this specification such as the Api 5l X56m which are used to transport oil, gas and water through long lines of pipes. There are two major product level specifications in this grade.
The Api 5l X56 Pipe is the stronger version. The psl1 has lower mechanical properties than the API 5L X56m Psl2 and therefore is less costly. Our API 5L Grade X 56 products are used in petroleum industries, natural gas industries and domestic water supply for the transportation of these liquids. The L390 Pipe can also be used with the same applications. Our X56 Grade Casing is applicable where extra corrosion resistance, temperature resistance and pressure performance are needed. We produce pipes in different classifications such as the API 5l Grade X56a as well. We encourage our customers to contact us to get more information and pricing of pipes in this specification.
Grade X56 pipe Dimensions Standard And Specification
| Standard | API 5L Grade B |
|---|---|
| Product Specification Level | API 5L Product Specification Level 2 API 5L Product Specification Level 1 |
| Sizes | Np Size 1/2″ to Sizes 48 upto Other Daimeter. WT – Sch 10 to 160, XS, STD, XXS. |
| Service | Sand BlastingAROTar EpoxyAnnealedGalvanizing3LPEMachining etc.BendingHeat Treatment |
| Type | ERW /Seamless / Fabricated / Welded / CDW |
| Other stockist | JSL, MSL,ISMT, BAO, USL, Lontrin, TNRS, SMTM, and Wuxi |
| Applications | Petrochemicals, Oil Refineries, Pressure Vessels, Power Generation, Sugar, Steel, Boiler Equipments |
| Test Methods | Hydrostatic testFlattening testDWT test for PSL2 pipeCVN impact test for PSL2 pipe (including pipe body tests, pipe weld and HAZ tests)Guided-bend testBend test |
| Length | Double Random, Single Random, Any Sizes – 12 Meters |
| End | Screwed, Bevel, Plain, Threaded |
| Thickness | Schedule 40, 80, 160, XS, XXS |
Carbon Steel API 5L Gr. X56 PSL-2 Standards
| API 5L PSL 2 X56 Seamless Carbon Steel |
|---|
| Sizes: Out Diameter: 73-630mm, Wall Thickness: 6-35mm Standard: API 5L Application: For gas, water, transportation in Petroleum and natural gas industries |
| API 5L X56 Tube for Structural Purposes |
| Sizes: Out Diameter: 1-1/4″-16″, Wall Thickness: 0.109″-0.562″ Standard: ASTM A53, ASTM A106, ASTM A500/501-98, ASTM A519-98, JIS G3441-1994, JIS G3444-1994, BS EN 10210-1 Application: Used in the general structure and the mechanism, including construction, machinery, transportation |
| API 5L X56 Boiler Pipe |
| Sizes: Out Diameter: 6.0mm-114.0mm, Wall Thickness: 1.0mm-15.0mm Standard: GB3087-1999, ASTM A179, ASTM A106, JIS G3454 Application: Used for manufacturing superheated pipelines, the steam pipe, boiling water tube, flue tube, small flue tube, etc. |
| API 5L X56 Seamless Steel Tubes for Liquid Service |
| Sizes: Out Diameter: 19.05-168.3mm, Wall Thickness: 2.31-14.27mm Standard: GB/T8163-1999, ASTM A53-98, JIS G3452-1998, JIS G3454-1998, ASTM A106, DIN 1629-1984 Application: For conveying of petroleum, gas and other fluids |
| API 5L X56 Line Pipe |
| Sizes: Out Diameter: 73-630mm, Wall Thickness: 6-35mm Standard: API 5L Application: For gas, water, transportation in Petroleum and natural gas industries |
| API 5L X56 Drill Pipe |
| Sizes: Out Diameter: 2-7/8″-6-5/8″, Wall Thickness: up to 0.813″ Standard: API 5D Application: For well drilling |
| API 5L X56 Petroleum Cracking Tube |
| Sizes: Out Diameter: 1.315″- 20″, Wall Thickness: 0.133″-0.500″ Standard: GB9948-1988 Application: For manufacturing of furnace tubes, heat exchangers and pipelines in refineries |
API 5l Grade B X56 Seamless Pipes Price list
| Size” | MSL Make | ISMT make | JSL Make |
|---|---|---|---|
| 1/2″ | 1,429.41 | 1,421.47 | 1,437.35 |
| 3/4″ | 1,191.18 | 1,183.24 | 1,199.12 |
| 1″ | 1,032.35 | 1,024.41 | 1,040.29 |
| 1.25″ | 984.71 | 976.76 | 992.65 |
| 1.5″ | 873.53 | 865.59 | 881.47 |
| Price USD/Ton All prices are applicable for SCH 40, SCH 60, SCH 80 & SCH XS | |||
Stockist of API 5L X56 PSL 1, X56 Grade B Seamless Pipe, Check Dimension of X56 Pipe Material, API 5L X56 Erw Line Pipe, Buy X56 Carbon Steel Pipe Dsaw Pipe at best price

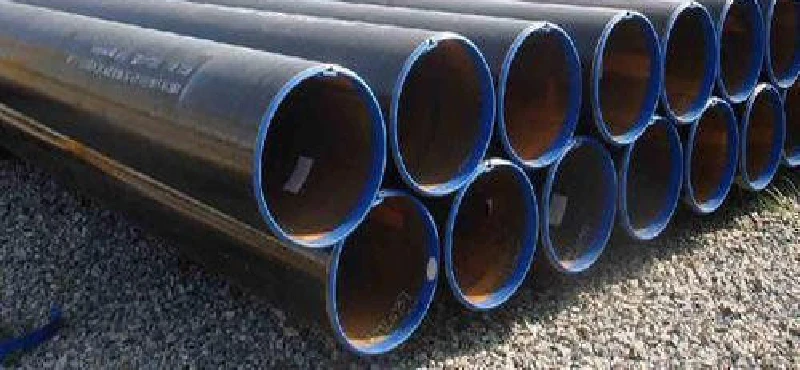

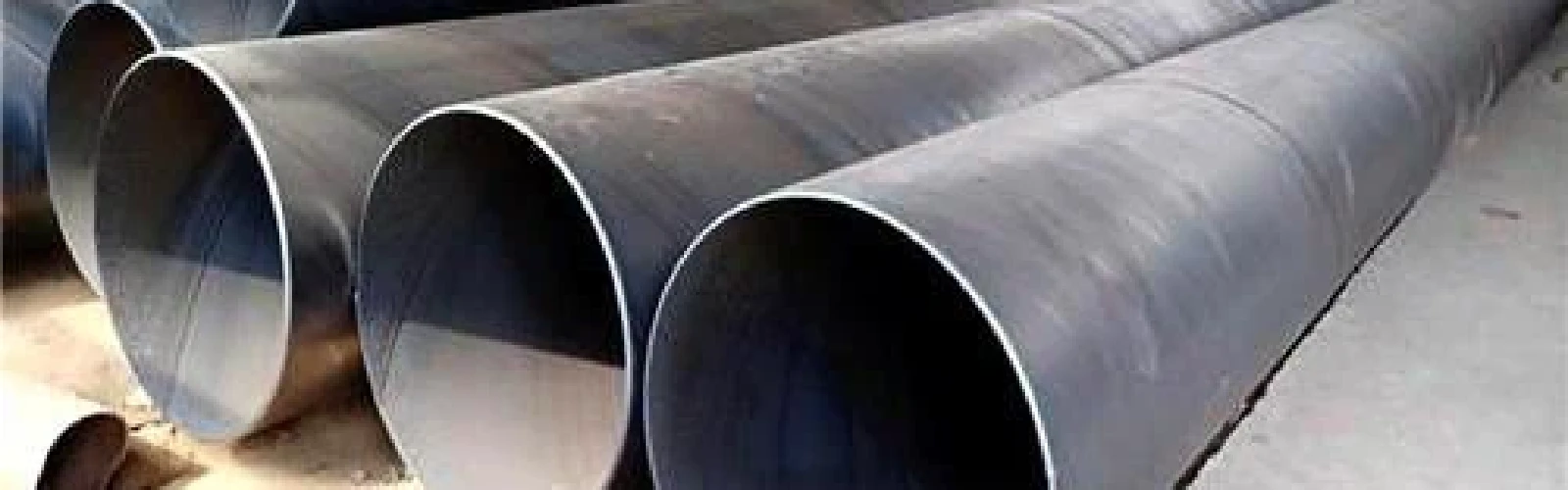

Most Common Types Of API 5L X56 Pipe
API 5L Gr. B X56 Welded Pipe Tolerance
| API 5L X56 Pipe types | API 5L X56 Pipe Size (mm) | Tolerances | |
|---|---|---|---|
| Hot rolled API 5L X56 Seamless Pipe | OD | <50 | ±0.50mm |
| ≥50 | ±1% | ||
| WT | <4 | ±12.5% | |
| ≥4～20 | +15%, -12.5% | ||
| >20 | ±12.5% | ||
| Cold drawn API 5L X56 Seamless Pipe | OD | 6～10 | ±0.20mm |
| 10～30 | ±0.40mm | ||
| 30～50 | ±0.45 | ||
| >50 | ±1% | ||
| WT | <1 | ±0.15mm | |
| >1～3 | + 15%, – 10% | ||
| >3 | + 12.5%, – 10% | ||
API 5l X56 Seamless Pipe Supplier, Find API 5L X56 PSL2 in types of welded, LSAW, SSAW, HFW and in Wall Thickness Schedule 10, SCH 40, SCH 80 & SCH 160
API 5L X56 PSL2 Pipe Schedule Chart
| NPS (in) | Outside Diameter (in) | API 5L X56 Pipe Schedule | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 10 | SCH 20 | SCH 30 | SCH STD | SCH 40 | SCH 60 | SCH XS | SCH 80 | SCH 100 | SCH 120 | SCH 140 | SCH 160 | SCH XXS | ||
| Wall Thickness (in) | ||||||||||||||
| 1/8 | 0.405 | 0.068 | 0.068 | 0.095 | 0.095 | |||||||||
| 1/4 | 0.540 | 0.088 | 0.088 | 0.119 | 0.119 | |||||||||
| 3/8 | 0.675 | 0.091 | 0.091 | 0.126 | 0.126 | |||||||||
| 1/2 | 0.840 | 0.109 | 0.109 | 0.147 | 0.147 | 0.187 | 0.294 | |||||||
| 3/4 | 1.050 | 0.113 | 0.113 | 0.154 | 0.154 | 0.219 | 0.308 | |||||||
| 1 | 1.315 | 0.133 | 0.133 | 0.179 | 0.179 | 0.250 | 0.358 | |||||||
| 1 1/4 | 1.660 | 0.140 | 0.140 | 0.191 | 0.191 | 0.250 | 0.382 | |||||||
| 1 1/2 | 1.900 | 0.145 | 0.145 | 0.200 | 0.200 | 0.281 | 0.400 | |||||||
| 2 | 2.375 | 0.154 | 0.154 | 0.218 | 0.218 | 0.344 | 0.436 | |||||||
| 2 1/2 | 2.875 | 0.203 | 0.203 | 0.276 | 0.276 | 0.375 | 0.552 | |||||||
| 3 | 3.500 | 0.216 | 0.216 | 0.300 | 0.300 | 0.438 | 0.600 | |||||||
| 3 1/2 | 4.000 | 0.226 | 0.226 | 0.318 | 0.318 | |||||||||
| 4 | 4.500 | 0.237 | 0.237 | 0.337 | 0.337 | 0.438 | 0.531 | 0.674 | ||||||
| 5 | 5.563 | 0.258 | 0.258 | 0.375 | 0.375 | 0.500 | 0.625 | 0.750 | ||||||
| 6 | 6.625 | 0.280 | 0.280 | 0.432 | 0.432 | 0.562 | 0.719 | 0.864 | ||||||
| 8 | 8.625 | 0.250 | 0.277 | 0.322 | 0.322 | 0.406 | 0.500 | 0.500 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 | |
| 10 | 10.750 | 0.250 | 0.307 | 0.365 | 0.365 | 0.500 | 0.500 | 0.594 | 0.719 | 0.844 | 1.000 | 1.125 | 1.000 | |
| 12 | 12.750 | 0.250 | 0.330 | 0.375 | 0.406 | 0.562 | 0.500 | 0.688 | 0.844 | 1.000 | 1.125 | 1.312 | 1.000 | |
| 14 | 14.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.500 | 0.750 | 0.938 | 1.094 | 1.250 | 1.406 | |
| 16 | 16.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.500 | 0.656 | 0.500 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | |
| 18 | 18.000 | 0.250 | 0.312 | 0.438 | 0.375 | 0.562 | 0.750 | 0.500 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | |
| 20 | 20.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.594 | 0.812 | 0.500 | 1.031 | 1.281 | 1.500 | 1.750 | 1.969 | |
| 22 | 22.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.875 | 0.500 | 1.125 | 1.375 | 1.625 | 1.875 | 2.125 | ||
| 24 | 24.000 | 0.250 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.500 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | |
| 30 | 30.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.500 | ||||||||
| 32 | 32.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 34 | 34.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 36 | 36.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.750 | ||||||||
| 42 | 42.000 | 0.500 | 0.625 | 0.375 | 0.750 | |||||||||
API 5L X56 Pipe Standards and Applications
| Standards | Grades | Class |
|---|---|---|
| API | API 5L | Line pipe for pipeline transportation systems |
| API 5CT | Tubing and casing for wells | |
| API 5DP | Drill Pipe for well drilling |
API 5l X52 S355 Available Surface Finish
Surface Finishes: Bare, Oiled, Mill Varnish, Galv, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap.
End Finishes: Beveled, Square Cut, Threaded & Coupled.

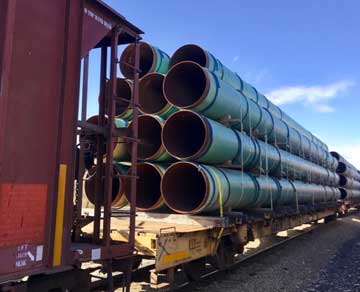

API 5l X56 Line Pipes Packaging & Shipping
API 5l Grade B X56 PSL1 both are loose or in bundles tightened with Iron Strips. Special packings: Metal or Wooden Cases, Pallets etc.
Marking Requirements Rolled, die stamped, or paint stenciled (exporter’s option).
- Manufacturer’s name, brand, or trademark
- Hydrostatic test pressure and/or NDE, or NH if neither is specified
- Size, length, weight per foot (NPS 4 and larger)
- ANSI schedule number or weight class or wall thickness
- Additional “S” if tested supplementary requirements
X56m PSL2 ERW Pipes Material Equivalent
| Material Grade | PSL1 | L390 or x56 |
| Grade | PSL2 | L390Q or X56Q L390N or X56N L390M or X56M |
HIC tested 3LPE coated API 5L X56 ERW Pipe, FBE coated X56 PSL2 and Black Painted X56 Line Pipe, X56 Carbon Steel Pipe Manufacturer in UAE
X56 Steel Pipes Chemical And Physical Properties
| PSL1 | PSL2 | |||||||
|---|---|---|---|---|---|---|---|---|
| Grade | P | C | S | Mn | Mn | C | S | P |
| X56 | 0.03 | 0.26 | 0.03 | 1.40 | 1.40 | 0.22 | 0.015 | 0.025 |
API 5l Grade X56a Minimum Yield Strength
| Pipe Grade | Tensile Strength – X56 Pipe Body of Seamless and Welded Pipes PSL 1 | SMLS of X56 Welded Pipe | ||
|---|---|---|---|---|
| Yield Properties a | Tensile Properties a | Elongation | Tensile Properties b | |
| Rt0,5 PSI Min | Rm PSI Min | (in 2in Af % min) | Rm PSI Min | |
| X56 | 56,600 | 71,100 | c | 71,100 |
| Pipes Grade | Tensile Strength – X56 Pipes Body of SMLS and Welded Pipes PSL 2 | Seam of X56 Welded Pipes | |||||
|---|---|---|---|---|---|---|---|
| Yield Properties a | Tensile Properties a | Ratio a,c | Elongation | Tensile Properties d | |||
| Rt0,5 PSI Min | Rm PSI Min | R10,5IRm | (in 2in) | Rm (psi) | |||
| Af % | |||||||
| X56N, X56Q, X56M | 56,600 | 79,000 | 71,100 | 110,200 | 0.93 | f | 71,100 |
Our Specialization in API 5L Gr. X56 PSL-2 pipe
Metallon Pipings FZ LLC is Specialize in supply of API 5L GR.B X56 Pipe or linepipe supplies that your company needs for use in the oil or gas industries.
Metallon Pipings FZ LLC provides a wide range of OCTG pipes, tubing and accessories for a variety of difficult drilling and production environments, we also provide a wide range of accessories including flanges, flange protectors, cut-to-length pipe, fittings, valves, Branch connections for your complete piping requirements, we stock heavy wall or heavy yield linepipe for oil and natural gas pipelines in (PSL-1, PSL-2 and PSL-3) grade classifications.
Our Specialization comes after providing API 5L Grade X 56 to 300+ companies from Oil & Gas Industry, Petrochemical, Offshore & Onshore Projects, Rigs, Chemical & Fertilizer companies in more than 80 countries.
