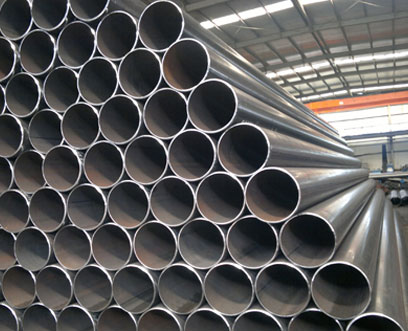

ISO 3183 L485 X70m Line Pipe and API 5L X70 PSL2 Pipe Material Supplier

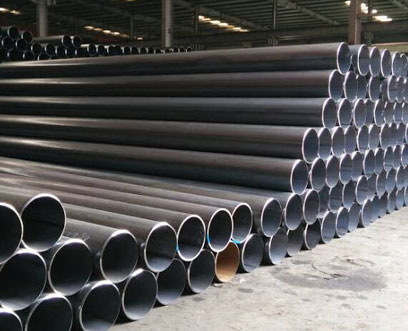

API 5L X70 Seamless Pipe is made up of a carbon, silicon, manganese, phosphorus and sulfur composition. The material has 485MPa minimum yield strength and 570MPa minimum tensile strength. Metallon Pipings FZ LLC is a leading API 5L X70 PSL2 and API 5L X70 Pipe exporter the PS1 in various dimensions and types. The product has two different product specification levels. The PSL1 has high carbon content than the PSL2. Therefore the PSL2 is much stronger. The API 5L gr x70 pipes have high strength, high resistance to dynamic tearing and high toughness under high low temperatures.


The API 5L X70 PSL 1 is the most used with high ductility, but there are applications that require high toughness and the PSL2 is used. The material also has high ductility and embrittlement transition temperature. It could be used under acidic conditions. The API 5L x70 pipe can come in as rolled, normalized, Quenched and tempered, sour service use or thermodynamically rolled or thermodynamically formed types. The seamless API 5L X70 material can be hot rolled or cold drawn. There are electric resistance weld, LSAW, SSAW and HSAW types. The dimensions vary for the seamless pipes up to 24 inches in outer diameter and for welded pipes up to 48 inches. The wall thickness and schedules range from sch20 through sch160. The steel grade API 5L x70 ranges in length from 6m,12m and single random and double random lengths. The material is also coated with black painting, oil varnished, FBE, 3PE or lined and clad coats. Please feel free to contact us for more information on the API 5L grade x70 PSL2 and the pricing.
Buy ISO 3183 L485 X70 Carbon Steel ERW Pipe in required coating at the best price, View API 5l X70 PSL2 Seamless Pipes Price list

API 5l X70 PSL2 Seamless Pipes Specification Schedule
| API 5L X70 Seamless | 1/2” NB – 60” NB |
| API 5L X70 PSL2 SAW | 16” NB – 100” NB |
| Grade X70 ERW | 1/2” NB – 24” NB |
| X70 Carbon Steel LSAW / DSAW | 16’OD TO 54′ OD (8 MM TO 50 MM THK) |
| Standard | API, ASTM, ISO 3183, ASME |
| Test | HIC / SSC TEST, NACE MR0175 / TM0177 / TM0284, H2 SERVICE, IBR etc. |
| Wall Thick. | SCH10, 20, 30, STD, 40, 60, XS, 80, 100, 120, 140, 160, XXS DIN, JIS |
| PSL Level | API 5L X70 PSL 1API 5L X70 PSL 2 |
| Origins | European, Korean, Indian, Japanese, US, Ukraine, Russian |
| Pipe Length | Single /Double Random, 12 Meter lengths, Custom Length, |
Updated API 5L X70 Price List
Check Api 5l X70 Pipe For Sale and Latest API 5L X70 Price list in UAE
| Size” | MSL Make | ISMT make | JSL Make |
|---|---|---|---|
| 1/2″ | 1,429.41 | 1,421.47 | 1,437.35 |
| 3/4″ | 1,191.18 | 1,183.24 | 1,199.12 |
| 1″ | 1,032.35 | 1,024.41 | 1,040.29 |
| 1.25″ | 984.71 | 976.76 | 992.65 |
| 1.5″ | 873.53 | 865.59 | 881.47 |
| Price USD/Ton All prices are applicable for SCH 40, SCH 60, SCH 80 & SCH XS | |||
Exporter of API 5L X70 Grade B Seamless Pipe, Longitudinal Welded pipes, API 5L X70 DSAW Pipe, API 5L X70 Pipe Supplier, Stockist of API 5L X70 PSL1, API 5L Grade X70 Erw Line Pipe
Various Types Of API 5L X70 Grade B Pipe












API 5l X70 Tubular Application
| Standards | Grades | Class |
|---|---|---|
| API | API 5L | Line pipe for pipeline transportation systems |
| API 5CT | Tubing and casing for wells | |
| API 5DP | Drill Pipe for well drilling |
ISO 3183 L485 X70m Line Pipe Schedule Chart
API 5L X70 SAW pipes have diameters ranging between 18” to 56”
| NPS (in) | Outside Diameter (in) | SCH 10 | SCH 20 | SCH 30 | SCH STD | SCH 40 | SCH 60 | SCH XS | SCH 80 | SCH 100 | SCH 120 | SCH 140 | SCH 160 | SCH XXS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wall Thickness (in) | ||||||||||||||
| 1/8 | 0.405 | 0.068 | 0.068 | 0.095 | 0.095 | |||||||||
| 1/4 | 0.540 | 0.088 | 0.088 | 0.119 | 0.119 | |||||||||
| 3/8 | 0.675 | 0.091 | 0.091 | 0.126 | 0.126 | |||||||||
| 1/2 | 0.840 | 0.109 | 0.109 | 0.147 | 0.147 | 0.187 | 0.294 | |||||||
| 3/4 | 1.050 | 0.113 | 0.113 | 0.154 | 0.154 | 0.219 | 0.308 | |||||||
| 1 | 1.315 | 0.133 | 0.133 | 0.179 | 0.179 | 0.250 | 0.358 | |||||||
| 1 1/4 | 1.660 | 0.140 | 0.140 | 0.191 | 0.191 | 0.250 | 0.382 | |||||||
| 1 1/2 | 1.900 | 0.145 | 0.145 | 0.200 | 0.200 | 0.281 | 0.400 | |||||||
| 2 | 2.375 | 0.154 | 0.154 | 0.218 | 0.218 | 0.344 | 0.436 | |||||||
| 2 1/2 | 2.875 | 0.203 | 0.203 | 0.276 | 0.276 | 0.375 | 0.552 | |||||||
| 3 | 3.500 | 0.216 | 0.216 | 0.300 | 0.300 | 0.438 | 0.600 | |||||||
| 3 1/2 | 4.000 | 0.226 | 0.226 | 0.318 | 0.318 | |||||||||
| 4 | 4.500 | 0.237 | 0.237 | 0.337 | 0.337 | 0.438 | 0.531 | 0.674 | ||||||
| 5 | 5.563 | 0.258 | 0.258 | 0.375 | 0.375 | 0.500 | 0.625 | 0.750 | ||||||
| 6 | 6.625 | 0.280 | 0.280 | 0.432 | 0.432 | 0.562 | 0.719 | 0.864 | ||||||
| 8 | 8.625 | 0.250 | 0.277 | 0.322 | 0.322 | 0.406 | 0.500 | 0.500 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 | |
| 10 | 10.750 | 0.250 | 0.307 | 0.365 | 0.365 | 0.500 | 0.500 | 0.594 | 0.719 | 0.844 | 1.000 | 1.125 | 1.000 | |
| 12 | 12.750 | 0.250 | 0.330 | 0.375 | 0.406 | 0.562 | 0.500 | 0.688 | 0.844 | 1.000 | 1.125 | 1.312 | 1.000 | |
| 14 | 14.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.500 | 0.750 | 0.938 | 1.094 | 1.250 | 1.406 | |
| 16 | 16.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.500 | 0.656 | 0.500 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | |
| 18 | 18.000 | 0.250 | 0.312 | 0.438 | 0.375 | 0.562 | 0.750 | 0.500 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | |
| 20 | 20.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.594 | 0.812 | 0.500 | 1.031 | 1.281 | 1.500 | 1.750 | 1.969 | |
| 22 | 22.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.875 | 0.500 | 1.125 | 1.375 | 1.625 | 1.875 | 2.125 | ||
| 24 | 24.000 | 0.250 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.500 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | |
| 30 | 30.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.500 | ||||||||
| 32 | 32.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 34 | 34.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 36 | 36.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.750 | ||||||||
| 42 | 42.000 | 0.500 | 0.625 | 0.375 | 0.750 | |||||||||
API 5l x70 seamless pipes stockist, API 5l grade X70 PSL2 Pipe specification and dimensions and also check tubo API 5L Gr X70 in PSL1 & PSL2 various sizes and wall thickness in ready stock
Standards of API 5L Gr X70 Pipe
| API 5L PSL 2 X70 Seamless Carbon Steel |
|---|
| Sizes: Out Diameter: 73-630mm, Wall Thickness: 6-35mm Standard: API 5L Application: For gas, water, transportation in Petroleum and natural gas industries |
| API 5L X70 Tube for Structural Purposes |
| Sizes: Out Diameter: 1-1/4″-16″, Wall Thickness: 0.109″-0.562″ Standard: ASTM A53, ASTM A106, ASTM A500/501-98, ASTM A519-98, JIS G3441-1994, JIS G3444-1994, BS EN 10210-1 Application: Used in the general structure and the mechanism, including construction, machinery, transportation |
| API 5L X70 Boiler Pipe |
| Sizes: Out Diameter: 6.0mm-114.0mm, Wall Thickness: 1.0mm-15.0mm Standard: GB3087-1999, ASTM A179, ASTM A106, JIS G3454 Application: Used for manufacturing superheated pipelines, the steam pipe, boiling water tube, flue tube, small flue tube, etc. |
| API 5L X70 Seamless Steel Tubes for Liquid Service |
| Sizes: Out Diameter: 19.05-168.3mm, Wall Thickness: 2.31-14.27mm Standard: GB/T8163-1999, ASTM A53-98, JIS G3452-1998, JIS G3454-1998, ASTM A106, DIN 1629-1984 Application: For conveying of petroleum, gas and other fluids |
| API 5L X70 Line Pipe |
| Sizes: Out Diameter: 73-630mm, Wall Thickness: 6-35mm Standard: API 5L Application: For gas, water, transportation in Petroleum and natural gas industries |
| API 5L X70 Drill Pipe |
| Sizes: Out Diameter: 2-7/8″-6-5/8″, Wall Thickness: up to 0.813″ Standard: API 5D Application: For well drilling |
| API 5L X70 Petroleum Cracking Tube |
| Sizes: Out Diameter: 1.315″- 20″, Wall Thickness: 0.133″-0.500″ Standard: GB9948-1988 Application: For manufacturing of furnace tubes, heat exchangers and pipelines in refineries |
Pressure Rating Of API 5L X70 DSAW Pipe
| Nominal Size (mm) | Schedule no. | Wall Thickness (mm) | Temperature (°C) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| -29 – 38 | 205 | 260 | 350 | 370 | 400 | 4301) | 450 | ||||
| Maximum API 5L X70 Allowable Stress (MPa) | |||||||||||
| 137.8 | 137.8 | 130.2 | 117.1 | 115.7 | 89.6 | 74.4 | 59.9 | ||||
| 15 | STD | 40 | 2.77 | 34416 | 34416 | 32528 | 29255 | 28910 | 22372 | 18589 | 14972 |
| XS | 80 | 3.73 | 48092 | 48092 | 45466 | 40878 | 40396 | 31260 | 25969 | 20918 | |
| 160 | 4.78 | 62830 | 62830 | 59378 | 53404 | 52777 | 40837 | 33929 | 27333 | ||
| XXS | 7.47 | 98245 | 98245 | 92836 | 83507 | 82522 | 63857 | 53053 | 42739 | ||
| 20 | STD | 40 | 2.87 | 28070 | 28070 | 26526 | 23860 | 23578 | 18245 | 15158 | 12209 |
| XS | 80 | 3.91 | 39418 | 39418 | 37247 | 33506 | 33106 | 25617 | 21283 | 17142 | |
| 160 | 5.56 | 58152 | 58152 | 54955 | 49429 | 48843 | 37799 | 31398 | 25293 | ||
| XXS | 7.82 | 83107 | 83107 | 78539 | 70643 | 69809 | 54024 | 44881 | 36152 | ||
| 25 | STD | 40 | 3.38 | 26251 | 26251 | 24804 | 22310 | 22048 | 17060 | 14173 | 11417 |
| XS | 80 | 4.55 | 36283 | 36283 | 34285 | 30862 | 30474 | 23584 | 19595 | 15785 | |
| 160 | 6.35 | 52481 | 52481 | 49594 | 44606 | 44082 | 34112 | 28339 | 22827 | ||
| XXS | 9.09 | 77030 | 77030 | 72793 | 65476 | 64704 | 50070 | 41595 | 33506 | ||
| 32 | STD | 40 | 3.56 | 21614 | 21614 | 20421 | 18369 | 18155 | 14049 | 11672 | 9404 |
| XS | 80 | 4.85 | 30178 | 30178 | 28518 | 25651 | 25348 | 19616 | 16295 | 13125 | |
| 160 | 6.35 | 40596 | 40596 | 38364 | 34505 | 34099 | 26389 | 21924 | 17659 | ||
| XXS | 9.70 | 64601 | 64601 | 61045 | 54906 | 54266 | 41988 | 34884 | 28097 | ||
| 40 | STD | 40 | 3.68 | 19444 | 19444 | 18375 | 16529 | 16329 | 12636 | 10550 | 8454 |
| XS | 80 | 5.08 | 27402 | 27402 | 25900 | 23295 | 23019 | 17811 | 14800 | 11919 | |
| 160 | 7.14 | 39738 | 39738 | 37599 | 33816 | 33416 | 25858 | 21483 | 17308 | ||
| XXS | 10.16 | 58779 | 58799 | 55547 | 49966 | 49374 | 38205 | 31742 | 25569 | ||
| 50 | STD | 40 | 3.91 | 16378 | 16378 | 15468 | 13925 | 13759 | 10645 | 8847 | 7124 |
| XS | 80 | 5.54 | 23653 | 23653 | 22351 | 20105 | 19871 | 15378 | 12774 | 10287 | |
| 160 | 8.74 | 38866 | 38866 | 36731 | 33037 | 32652 | 25266 | 20987 | 16908 | ||
| XXS | 11.07 | 50793 | 50793 | 48003 | 43173 | 42670 | 33017 | 27429 | 22096 | ||
| 65 | STD | 40 | 5.16 | 17914 | 17914 | 16929 | 15227 | 15048 | 11644 | 9674 | 7793 |
| XS | 80 | 7.01 | 24818 | 24818 | 23447 | 21097 | 20849 | 16129 | 13401 | 10797 | |
| 160 | 9.53 | 34615 | 34615 | 32714 | 29420 | 29076 | 22503 | 18693 | 15055 | ||
| XXS | 14.02 | 53081 | 53081 | 50159 | 45116 | 44585 | 34498 | 28662 | 23088 | ||
| 80 | STD | 40 | 5.49 | 15558 | 15558 | 14969 | 13222 | 13063 | 10108 | 8399 | 6766 |
| XS | 80 | 7.62 | 21986 | 21968 | 20780 | 18693 | 18472 | 14290 | 11871 | 9563 | |
| 160 | 11.13 | 33079 | 33079 | 31253 | 28111 | 27780 | 21497 | 17859 | 14386 | ||
| XXS | 15.24 | 46976 | 46976 | 44392 | 39928 | 39459 | 30536 | 25369 | 20436 | ||
| 100 | STD | 40 | 6.02 | 13187 | 13187 | 12464 | 11210 | 11079 | 8571 | 7124 | 5739 |
| XS | 80 | 8.56 | 19058 | 19058 | 18010 | 16198 | 16012 | 12388 | 12094 | 8289 | |
| 120 | 11.13 | 25190 | 25190 | 23805 | 21407 | 21159 | 16371 | 13601 | 10995 | ||
| 160 | 13.49 | 31019 | 31019 | 29310 | 26368 | 26058 | 20160 | 16750 | 13208 | ||
| XXS | 17.12 | 40348 | 40348 | 38129 | 34298 | 33892 | 26230 | 21786 | 17549 | ||
| 125 | STD | 40 | 6.55 | 11561 | 11561 | 10921 | 9825 | 9708 | 7510 | 6243 | 5038 |
| XS | 80 | 9.53 | 17060 | 17060 | 16122 | 14503 | 14331 | 11093 | 9212 | 7421 | |
| 120 | 12.70 | 23130 | 23130 | 21855 | 19657 | 19430 | 15034 | 12492 | 10059 | ||
| 160 | 15.88 | 29407 | 29407 | 27787 | 24997 | 24701 | 19113 | 15881 | 12795 | ||
| XXS | 19.05 | 35897 | 35897 | 33926 | 30516 | 30158 | 23337 | 19388 | 15620 | ||
| 150 | STD | 40 | 7.11 | 10550 | 10550 | 9928 | 8924 | 8819 | 6828 | 5370 | 4568 |
| XS | 80 | 10.97 | 16474 | 16474 | 15571 | 14007 | 13842 | 10707 | 8895 | 7165 | |
| 120 | 14.27 | 21745 | 21745 | 20553 | 18448 | 18265 | 14138 | 11747 | 9460 | ||
| XXS | 160 | 18.26 | 28325 | 28325 | 26768 | 24074 | 23784 | 18410 | 15296 | 12319 | |
| 200 | 20 | 6.35 | 7138 | 7138 | 6745 | 6063 | 5994 | 4637 | 3852 | 3100 | |
| 30 | 7.04 | 7924 | 7924 | 7489 | 6732 | 6656 | 5147 | 4279 | 3445 | ||
| STD | 40 | 8.18 | 9246 | 9246 | 8737 | 7855 | 7765 | 6008 | 4995 | 4024 | |
| 60 | 10.31 | 11741 | 11741 | 11093 | 9977 | 9860 | 7627 | 6339 | 5105 | ||
| XS | 80 | 12.70 | 14572 | 14572 | 13766 | 12388 | 12237 | 9474 | 7868 | 6338 | |
| 100 | 15.09 | 17452 | 17452 | 16488 | 14834 | 14655 | 11341 | 9426 | 7593 | ||
| 120 | 18.26 | 21345 | 21345 | 20174 | 18148 | 17935 | 13876 | 11527 | 9288 | ||
| 140 | 20.62 | 24308 | 24308 | 22971 | 20656 | 20415 | 15799 | 13125 | 10569 | ||
| XXS | 22.23 | 26334 | 26334 | 24877 | 22386 | 22124 | 17115 | 14221 | 11458 | ||
| 160 | 23.01 | 27340 | 27340 | 25838 | 23240 | 22964 | 17769 | 14765 | 11892 | ||
| 250 | 20 | 6.35 | 5698 | 5698 | 5388 | 4844 | 4789 | 3707 | 3080 | 2480 | |
| 30 | 7.8 | 7028 | 7028 | 6642 | 5974 | 5905 | 4568 | 3796 | 3059 | ||
| STD | 40 | 9.27 | 8385 | 8385 | 7923 | 7131 | 7048 | 5450 | 4527 | 3652 | |
| XS | 60 | 12.7 | 11596 | 11596 | 10955 | 9853 | 9736 | 7538 | 6263 | 5043 | |
| 80 | 15.09 | 13863 | 13863 | 13098 | 11781 | 11644 | 9012 | 7483 | 6028 | ||
| 100 | 18.26 | 16922 | 16922 | 15992 | 14386 | 14214 | 10996 | 9136 | 7359 | ||
| 120 | 21.44 | 20036 | 20036 | 18934 | 17032 | 16825 | 13022 | 10817 | 8716 | ||
| XXS | 140 | 25.4 | 23998 | 23998 | 16474 | 20394 | 20153 | 15599 | 12960 | 10438 | |
| 160 | 28.58 | 27229 | 27229 | 25734 | 23143 | 22875 | 17700 | 14703 | 11844 | ||
| 300 | 20 | 6.35 | 4795 | 4795 | 4534 | 4072 | 4024 | 3114 | 2591 | 2088 | |
| 30 | 8.38 | 6359 | 6359 | 6008 | 5402 | 5540 | 4134 | 3431 | 2763 | ||
| STD | 9.53 | 7241 | 7241 | 6842 | 6153 | 6084 | 4706 | 3914 | 3149 | ||
| 40 | 10.31 | 7854 | 7854 | 7421 | 6676 | 6601 | 5015 | 4244 | 3417 | ||
| XS | 12.70 | 9722 | 9722 | 9191 | 8268 | 8165 | 6318 | 5250 | 4230 | ||
| 60 | 14.27 | 10969 | 10969 | 10363 | 9322 | 9212 | 7131 | 5925 | 4768 | ||
| 80 | 17.48 | 13525 | 13525 | 12850 | 11492 | 11362 | 8792 | 7303 | 5884 | ||
| 100 | 21.44 | 16736 | 16736 | 15819 | 14227 | 14062 | 10879 | 9040 | 7283 | ||
| XXS | 120 | 25.4 | 20015 | 20015 | 18913 | 17011 | 16811 | 13008 | 10804 | 8702 | |
| 140 | 28.58 | 22682 | 22682 | 21435 | 19278 | 19051 | 14744 | 12244 | 9866 | ||
| 160 | 33.32 | 26740 | 26740 | 25273 | 22730 | 22461 | 17383 | 14441 | 11630 | ||
| 350 | 10 | 6.35 | 4361 | 4361 | 4120 | 3707 | 3665 | 2831 | 2356 | 1895 | |
| 20 | 7.92 | 5457 | 5457 | 5161 | 4644 | 4589 | 3548 | 2949 | 2377 | ||
| STD | 30 | 9.53 | 6580 | 6580 | 6222 | 5595 | 5533 | 4279 | 3555 | 2866 | |
| 40 | 11.13 | 7717 | 7717 | 7310 | 6559 | 6477 | 5016 | 4168 | 3355 | ||
| XS | 12.70 | 8833 | 8833 | 8351 | 7510 | 7421 | 5739 | 4768 | 3845 | ||
| 60 | 15.09 | 10541 | 10541 | 9963 | 8964 | 8861 | 6855 | 5691 | 4589 | ||
| 80 | 19.05 | 13421 | 13421 | 12684 | 11410 | 11272 | 9723 | 7248 | 5836 | ||
| 100 | 23.83 | 16949 | 16949 | 16019 | 14407 | 14242 | 11017 | 9157 | 7372 | ||
| 120 | 27.79 | 19933 | 19933 | 18837 | 16943 | 16743 | 12960 | 10762 | 8675 | ||
| 140 | 31.75 | 22964 | 22964 | 21703 | 19519 | 19292 | 14931 | 12402 | 9990 | ||
| 160 | 35.71 | 26051 | 26051 | 24618 | 22144 | 21883 | 16936 | 14069 | 11334 | ||
| 400 | 10 | 6.35 | 3810 | 3810 | 3603 | 3238 | 3197 | 2474 | 2060 | 1660 | |
| 20 | 7.92 | 4768 | 4768 | 4507 | 4051 | 4004 | 3100 | 2577 | 2074 | ||
| STD | 30 | 9.53 | 5746 | 5746 | 5429 | 4885 | 4830 | 3734 | 3100 | 2501 | |
| XS | 40 | 12.70 | 7703 | 7703 | 7283 | 6545 | 6470 | 5009 | 4126 | 3349 | |
| 60 | 16.66 | 10176 | 10176 | 9618 | 8654 | 8550 | 6614 | 5498 | 4430 | ||
| 80 | 21.44 | 13208 | 13208 | 12478 | 11224 | 11093 | 8585 | 7131 | 5746 | ||
| 100 | 26.19 | 16274 | 16274 | 15378 | 13835 | 13670 | 10576 | 8785 | 7076 | ||
| 120 | 30.96 | 19409 | 19409 | 18341 | 16481 | 16302 | 12616 | 10480 | 8440 | ||
| 140 | 36.53 | 23130 | 23130 | 21855 | 19657 | 19430 | 15034 | 12492 | 10059 | ||
| 160 | 40.49 | 25824 | 25824 | 24404 | 21952 | 21697 | 16784 | 13945 | 11238 | ||
| 450 | 10 | 6.35 | 3383 | 3383 | 3197 | 2873 | 2839 | 2198 | 1826 | 1474 | |
| 20 | 7.92 | 4230 | 4230 | 3996 | 3597 | 3555 | 2749 | 2287 | 1839 | ||
| STD | 9.53 | 5099 | 5099 | 4816 | 4334 | 4286 | 3314 | 2756 | 2219 | ||
| XS | 30 | 11.13 | 5967 | 5967 | 5643 | 5071 | 5016 | 3879 | 3225 | 2598 | |
| 12.70 | 6835 | 6835 | 6456 | 5808 | 5739 | 4437 | 3686 | 2969 | |||
| 40 | 14.27 | 7696 | 7696 | 7276 | 6545 | 6463 | 5002 | 4155 | 3349 | ||
| 60 | 19.05 | 10349 | 10349 | 9784 | 8799 | 8695 | 6725 | 5588 | 4499 | ||
| 80 | 23.83 | 13043 | 13043 | 12326 | 11086 | 10955 | 8475 | 7042 | 5670 | ||
| 100 | 29.36 | 16219 | 16219 | 15323 | 13787 | 13622 | 10542 | 8757 | 7055 | ||
| 120 | 34.93 | 19464 | 19464 | 18389 | 16543 | 16350 | 12650 | 10507 | 8468 | ||
| 140 | 39.67 | 22282 | 22282 | 21056 | 18941 | 18713 | 11483 | 12030 | 9694 | ||
| 160 | 45.24 | 25638 | 25638 | 24225 | 21793 | 21531 | 16660 | 13842 | 11155 | ||
| 500 | 10 | 6.35 | 3038 | 3038 | 2873 | 2574 | 2556 | 1977 | 1640 | 1323 | |
| STD | 20 | 9.53 | 4582 | 4582 | 4327 | 3893 | 3852 | 2976 | 2474 | 1991 | |
| XS | 30 | 12.70 | 6139 | 6139 | 5801 | 5216 | 5154 | 3989 | 3314 | 2666 | |
| 40 | 15.09 | 7317 | 7317 | 6911 | 6215 | 6146 | 4754 | 3948 | 3183 | ||
| 60 | 20.62 | 10080 | 10080 | 9522 | 8564 | 8468 | 6552 | 5443 | 4382 | ||
| 80 | 26.19 | 12898 | 12898 | 12188 | 10962 | 10831 | 8385 | 6966 | 5608 | ||
| 100 | 32.54 | 16171 | 16171 | 15287 | 13746 | 13580 | 10514 | 8730 | 7035 | ||
| 120 | 38.10 | 19085 | 19085 | 18037 | 16226 | 16033 | 12409 | 10307 | 8302 | ||
| 140 | 44.45 | 22475 | 22475 | 21242 | 19106 | 18879 | 14614 | 12140 | 9777 | ||
| 160 | 50.01 | 25450 | 25450 | 24094 | 21675 | 21421 | 16577 | 13766 | 11093 | ||
| 600 | 10 | 6.35 | 2529 | 2529 | 2391 | 2150 | 2129 | 1647 | 1364 | 1102 | |
| STD | 20 | 9.53 | 3810 | 3810 | 3603 | 3238 | 3197 | 2474 | 2060 | 1660 | |
| XS | 12.70 | 5097 | 5097 | 4816 | 4334 | 4286 | 3314 | 2756 | 2219 | ||
| 30 | 14.27 | 5739 | 5739 | 5423 | 4878 | 4823 | 3734 | 3100 | 2494 | ||
| 40 | 17.48 | 7055 | 7055 | 6670 | 5994 | 5925 | 4589 | 3810 | 3066 | ||
| 60 | 24.61 | 10018 | 10018 | 9467 | 8516 | 8420 | 6511 | 5409 | 4361 | ||
| 80 | 30.96 | 12691 | 12691 | 12002 | 10783 | 10659 | 8254 | 6856 | 5519 | ||
| 100 | 38.89 | 16102 | 16102 | 15220 | 13690 | 10528 | 10466 | 8695 | 7007 | ||
| 120 | 46.02 | 19223 | 19223 | 18168 | 16336 | 16150 | 12491 | 10383 | 8364 | ||
| 140 | 52.37 | 22048 | 22048 | 20835 | 18741 | 18520 | 14331 | 11906 | 9591 | ||
| 160 | 59.54 | 25279 | 25279 | 23888 | 21489 | 21235 | 16433 | 13649 | 10996 | ||
API 5L Gr X70 Pipe Yield Strength Chart
| Grade | Yield Strength | Tensile Strength | Yield to Tensile | Elongation |
|---|---|---|---|---|
| min. (KSI) | min. (KSI) | Ratio (max) | % | |
| API 5L X70 | 70 | 82 | 0.93 | 17 |
Dimension Tolerance ISO 3183 L485 Pipe
| API 5L X70 Pipe types | API 5L X70 Pipe Size (mm) | Tolerances | |
|---|---|---|---|
| Hot rolled API 5L X70 Seamless Pipe | OD | <50 | ±0.50mm |
| ≥50 | ±1% | ||
| WT | <4 | ±12.5% | |
| ≥4~20 | +15%, -12.5% | ||
| >20 | ±12.5% | ||
| Cold drawn API 5L X70 Seamless Pipe | OD | 6~10 | ±0.20mm |
| 10~30 | ±0.40mm | ||
| 30~50 | ±0.45 | ||
| >50 | ±1% | ||
| WT | <1 | ±0.15mm | |
| >1~3 | + 15%, – 10% | ||
| >3 | + 12.5%, – 10% | ||
Buy Api 5l Spiral Welded Pipe, Ready Stock of Schedule 40 API 5L Pipe, SCH 80 API 5L Line Pipe / SCH 160 API 5L Welded Steel Pipe in PSl1 / PSL2, Line Pipe
API 5L X70 PSL1 Pipe Chemical Material Composition
| API 5L X70 PSL 1 | ||||||||
|---|---|---|---|---|---|---|---|---|
| Grade | Composition, % | |||||||
| C max | Mn max | P | S max | V max | Nb max | Ti max | ||
| min | max | |||||||
| B | 0.28 | 1.2 | – | 0.03 | 0.03 | c.d | c,d | d |
| X70 | 0.28 | 1.4 | – | 0.03 | 0.03 | f | f | f |
| API 5L X70Q PSL 2 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Grade | Composition, % | ||||||||
| C | Si | Mn | P | S | V | Nb | Ti | Other | |
| X70Q | 0.18 | 0.45 | 1.8 | 0.025 | 0.015 | g | g | g | h,l |
Api 5l Spiral Welded Pipe Mechanical Characteristics
| Grade | Yield Strength Mpa | Tensile Strength Mpa | Raito | Elongation | ||
|---|---|---|---|---|---|---|
| min | max | min | max | max | min | |
| BN | 245 | 450 | 415 | 655 | 0.93 | f |
| BQ | ||||||
| X70Q | 485 | 635 | 570 | 760 | 0.93 | f |
API 5L PSL1 Pipe Available Surface Finish
Surface Finishes: Bare, Oiled, Mill Varnish, Galv, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap.
End Finishes: Beveled, Square Cut, Threaded & Coupled.
Our Specialization in API 5L Welded Pipe
Metallon Pipings FZ LLC is Specialize in supply of l485m steel pipe or linepipe supplies that your company needs for use in the oil or gas industries.
Metallon Pipings FZ LLC provides a wide range of OCTG pipes, tubing and accessories for a variety of difficult drilling and production environments, we also provide a wide range of accessories including flanges, flange protectors, cut-to-length pipe, fittings, valves, Branch connections for your complete piping requirements, we stock heavy wall or heavy yield linepipe for oil and natural gas pipelines in (PSL-1, PSL-2 and PSL-3) grade classifications.
Our Specialization comes after supplying Api 5l Grade X70 Psl2 to 300+ companies from Oil & Gas Industry, Petrochemical, Offshore & Onshore Projects, Rigs, Chemical & Fertilizer companies in more than 80 countries.
API 5L X70 Tubular Packaging & Shipping
API 5L X65 Smls both are loose or in bundles tightened with Iron Strips. Special packings: Metal or Wooden Cases, Pallets etc.
Marking Requirements Rolled, die stamped, or paint stenciled (exporter’s option).
- Manufacturer’s name, brand, or Trademark
- Hydrostatic test pressure and/or NDE, or NH if neither is specified
- Size, length, weight per foot (NPS 4 and larger)
- ANSI schedule number or weight class or wall thickness
- Additional “S” if tested supplementary requirements
Stock of following exporter of SCH 80 API 5L Line Pipe
