Stainless Steel 304 Welded Sanitary Tubes, ASME SA270 SS Sanitary Tubing Manufacturer
Sanitary Stainless Steel Tubing is mainly made up of two different austenitic stainless steel grades. Most sanitary tubing is made up of either 304 grade steel or the 316L grade of steel. These are both of good strength and high temperature capable. Metallon Pipings FZ LLC is a leading exporter of the 304 stainless steel sanitary tubing as well as the 316L sanitary tubing in different dimensions, scales and shapes. There are carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, and iron in these material grades. The 316L however, has additional molybdenum in the content.
The molybdenum content allows the 316L SS Sanitary Tubing to be more corrosion resistant to aqueous conditions, especially to chloride ion rich environments. The 18% chromium and 8% nickel in the composition of these pipes provide better strength. The ASME SA270 SS Sanitary Tubing has 215MPa minimum yield strength and 505MPa minimum tensile strength. The operating temperatures are similar to these tubes. The Sanitary 316L Stainless Steel Tube has long lasting lifespan with lower carbon content levels, it also reduces the localized corrosion at welded joints. The sanitary tubes are used in sanitary applications with varying wall thickness, outer diameters, lengths and schedules. Our Sanitary Stainless Tube materials are of superior quality and we test the products according to the international standards. Please contact us for further information on the ASTM A270 Welded Sanitary Tubing and the prices.
Buy ASTM A270 Stainless Steel Sanitary Tubing, Stainless Seamless Sanitary Tubing at an affordable price and in all sizes
Standard Specification Of Stainless Steel Sanitary Tube
| Stainless Steel Sanitary Tube Type | Seamless and Welded Austenitic and Ferritic/Austenitic Stainless Steel Sanitary Tubing |
| ASTM | ASTM A270 / ASME SA 270 |
| OD. | 1/2” |
| Wall | 16 Gauge (0.065”) |
| Length | 20′ |
| OD Tolerance | +/-0.005” / +/-0.13MM |
| WT Tolerance | +/-10% |
| Length Tolerance | +1/8” / +3.18MM |
| Material | SS 304, SS 304L,SS 316,SS 316L |
| Standard | 3A / ASTM A270 / A270M |
| Finish | 20Ra ID / 32Ra OD |
| Polish | Mechanical Polished |
| Type | Seamless |
| Certification | 3A – Food / Dairy Grade |
| Mill Test Certificate | EN10204 3.1 |
| Packing | Sleeved, Ends Capped, Wooden Boxed |
Check steel sanitary tubes dimensions, Get at a discount on stainless steel sanitary pipe, View sanitary pipe price list in UAE

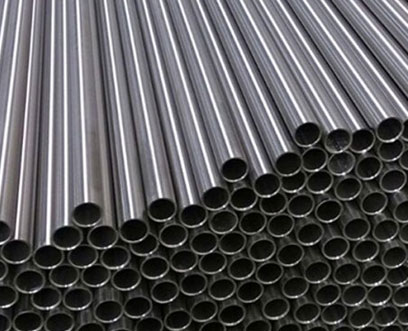

Most Famous Types Of ASTM A270 Welded Sanitary Tubing
Schedule Chart of 304 sanitary tubes
| NB SIZES | SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 |
|---|---|---|---|---|---|
| 1/8″ | |||||
| 1/4″ | |||||
| 3/8″ | |||||
| 1/2″ | |||||
| 3/4″ | |||||
| 1″ | |||||
| 1 1/4″ | |||||
| 1 1/2″ | |||||
| 2″ | |||||
| 2 1/2″ | |||||
| 3″ | |||||
| 4″ | |||||
| 5″ | |||||
| 6″ |
Sanitary Stainless Steel Tubing Supplier, Check 304 Stainless Steel Sanitary Tube, A270 Ss 316l Sanitary Tube available sizes and Delivery time
Sanitary Stainless Tube Size Chart In Mm And Inches
| Tube OD | Thikness | Grade |
| 1/2 | 0.065 | 304 |
| 1/2 | 0.065 | 316 |
| 3/4 | 0.065 | 304 |
| 3/4 | 0.065 | 316 |
| 1 | 0.065 | 304 |
| 1 | 0.065 | 316 |
| 1 1/2 | 0.065 | 304 |
| 1 1/2 | 0.065 | 316 |
| 2 | 0.065 | 304 |
| 2 | 0.065 | 316 |
| 2 1/2 | 0.065 | 304 |
| 2 1/2 | 0.065 | 316 |
| 3 | 0.065 | 304 |
| 3 | 0.065 | 316 |
| 4 | 0.083 | 304 |
| 4 | 0.083 | 316 |
| 6 | 0.109 | 304 |
| 6 | 0.109 | 316 |
| 8 | 0.109 | 304 |
| 8 | 0.109 | 316 |
| OD inches | Ave. Wall inches | D/t Ratio | ID inches | Tube Cross Sectional Area (in2) | Internal Area (in2) |
|---|---|---|---|---|---|
| 0.250 | 0.020 | 12.50 | 0.210 | 0.0145 | 0.0346 |
| 0.250 | 0.028 | 8.93 | 0.194 | 0.0195 | 0.0296 |
| 0.250 | 0.035 | 7.14 | 0.180 | 0.0236 | 0.0254 |
| 0.250 | 0.049 | 5.10 | 0.152 | 0.0309 | 0.0181 |
| 0.250 | 0.065 | 3.85 | 0.120 | 0.0378 | 0.0113 |
| 0.375 | 0.020 | 18.75 | 0.335 | 0.0223 | 0.0881 |
| 0.375 | 0.028 | 13.39 | 0.319 | 0.0305 | 0.0799 |
| 0.375 | 0.035 | 10.71 | 0.305 | 0.0374 | 0.0731 |
| 0.375 | 0.049 | 7.65 | 0.277 | 0.0502 | 0.0603 |
| 0.375 | 0.065 | 5.77 | 0.245 | 0.0633 | 0.0471 |
| 0.500 | 0.020 | 25.00 | 0.460 | 0.0302 | 0.1662 |
| 0.500 | 0.028 | 17.86 | 0.444 | 0.0415 | 0.1548 |
| 0.500 | 0.035 | 14.29 | 0.430 | 0.0511 | 0.1452 |
| 0.500 | 0.049 | 10.20 | 0.402 | 0.0694 | 0.1213 |
| 0.500 | 0.065 | 7.69 | 0.370 | 0.0888 | 0.1075 |
| 0.500 | 0.083 | 6.02 | 0.334 | 0.1087 | 0.0876 |
| 0.625 | 0.020 | 31.25 | 0.585 | 0.0380 | 0.2688 |
| 0.625 | 0.028 | 22.32 | 0.569 | 0.0525 | 0.2543 |
| 0.625 | 0.035 | 17.86 | 0.555 | 0.0649 | 0.2419 |
| 0.625 | 0.049 | 12.76 | 0.527 | 0.0887 | 0.2181 |
| 0.625 | 0.065 | 9.62 | 0.495 | 0.1144 | 0.1924 |
| 0.625 | 0.083 | 7.53 | 0.459 | 0.1413 | 0.1655 |
| 0.625 | 0.095 | 6.58 | 0.435 | 0.1582 | 0.1486 |
| 0.625 | 0.109 | 5.73 | 0.407 | 0.1767 | 0.1301 |
| 0.750 | 0.028 | 26.79 | 0.694 | 0.0635 | 0.3783 |
| 0.750 | 0.035 | 21.43 | 0.680 | 0.0786 | 0.3632 |
| 0.750 | 0.049 | 15.31 | 0.652 | 0.1079 | 0.3339 |
| 0.750 | 0.065 | 11.54 | 0.620 | 0.1399 | 0.3019 |
| 0.750 | 0.083 | 9.04 | 0.584 | 0.1739 | 0.2679 |
| 0.750 | 0.095 | 7.89 | 0.560 | 0.1955 | 0.2463 |
| 0.750 | 0.109 | 6.88 | 0.532 | 0.2195 | 0.2223 |
| 0.750 | 0.120 | 6.25 | 0.510 | 0.2375 | 0.2043 |
| 0.875 | 0.020 | 43.75 | 0.835 | 0.0537 | 0.5476 |
| 0.875 | 0.028 | 31.25 | 0.819 | 0.0745 | 0.5268 |
| 0.875 | 0.035 | 25.00 | 0.805 | 0.0924 | 0.5090 |
| 0.875 | 0.049 | 17.86 | 0.777 | 0.1272 | 0.4742 |
| 0.875 | 0.065 | 13.46 | 0.745 | 0.1654 | 0.4359 |
| 0.875 | 0.083 | 10.54 | 0.709 | 0.2065 | 0.3948 |
| 0.875 | 0.095 | 9.21 | 0.685 | 0.2328 | 0.3685 |
| 0.875 | 0.109 | 8.03 | 0.657 | 0.2623 | 0.3390 |
| 0.875 | 0.120 | 7.29 | 0.635 | 0.2846 | 0.3167 |
| 1.000 | 0.028 | 35.71 | 0.944 | 0.0855 | 0.6999 |
| 1.000 | 0.035 | 28.57 | 0.930 | 0.1061 | 0.6793 |
| 1.000 | 0.049 | 20.41 | 0.902 | 0.1464 | 0.6390 |
| 1.000 | 0.065 | 15.38 | 0.870 | 0.1909 | 0.5945 |
| 1.000 | 0.083 | 12.05 | 0.834 | 0.2391 | 0.5463 |
| 1.000 | 0.095 | 10.53 | 0.810 | 0.2701 | 0.5153 |
| 1.000 | 0.109 | 9.17 | 0.782 | 0.3051 | 0.4803 |
| 1.000 | 0.120 | 8.33 | 0.760 | 0.3318 | 0.4536 |
| 1.000 | 0.134 | 7.46 | 0.732 | 0.3646 | 0.4208 |
| 1.250 | 0.035 | 35.71 | 1.180 | 0.1336 | 1.0936 |
| 1.250 | 0.049 | 25.51 | 1.152 | 0.1849 | 1.0423 |
| 1.250 | 0.065 | 19.23 | 1.120 | 0.2420 | 0.9852 |
| 1.250 | 0.083 | 15.06 | 1.084 | 0.304L3 | 0.9229 |
| 1.250 | 0.095 | 13.16 | 1.060 | 0.3447 | 0.8825 |
| 1.250 | 0.109 | 11.47 | 1.032 | 0.3907 | 0.8365 |
| 1.250 | 0.120 | 10.42 | 1.010 | 0.4260 | 0.8012 |
| 1.250 | 0.134 | 9.33 | 0.982 | 0.4698 | 0.7574 |
| 1.500 | 0.035 | 42.86 | 1.430 | 0.1611 | 1.6061 |
| 1.500 | 0.049 | 30.61 | 1.402 | 0.2234 | 1.5438 |
| 1.500 | 0.065 | 23.08 | 1.370 | 0.2930 | 1.4741 |
| 1.500 | 0.083 | 18.07 | 1.334 | 0.3695 | 1.3977 |
| 1.500 | 0.095 | 15.79 | 1.310 | 0.4193 | 1.3478 |
| 1.500 | 0.109 | 13.76 | 1.282 | 0.4763 | 1.2908 |
| 1.500 | 0.120 | 12.50 | 1.260 | 0.5202 | 1.2469 |
| 1.500 | 0.134 | 11.19 | 1.232 | 0.5750 | 1.1921 |
| 1.500 | 0.148 | 10.14 | 1.204 | 0.6286 | 1.1385 |
| 1.750 | 0.035 | 50.00 | 1.680 | 0.1886 | 2.2167 |
| 1.750 | 0.049 | 40.82 | 1.902 | 0.3003 | 2.8413 |
| 1.750 | 0.065 | 26.92 | 1.620 | 0.3441 | 2.0612 |
| 1.750 | 0.083 | 21.08 | 1.584 | 0.4347 | 1.9706 |
| 1.750 | 0.095 | 18.42 | 1.560 | 0.4939 | 1.9113 |
| 1.750 | 0.109 | 16.06 | 1.532 | 0.5619 | 1.8433 |
| 1.750 | 0.120 | 14.58 | 1.510 | 0.6145 | 1.7908 |
| 1.750 | 0.134 | 13.06 | 1.482 | 0.6803 | 1.7250 |
| 1.750 | 0.148 | 11.82 | 1.454 | 0.7449 | 1.6604 |
| 1.750 | 0.165 | 10.61 | 1.420 | 0.8216 | 1.5837 |
| 2.000 | 0.035 | 57.14 | 1.930 | 0.2161 | 2.9255 |
| 2.000 | 0.049 | 40.82 | 1.902 | 0.3003 | 2.8413 |
| 2.000 | 0.065 | 30.77 | 1.870 | 0.3951 | 2.7465 |
| 2.000 | 0.083 | 24.10 | 1.834 | 0.4999 | 2.6417 |
| 2.000 | 0.095 | 21.05 | 1.810 | 0.5685 | 2.5730 |
| 2.000 | 0.109 | 18.35 | 1.782 | 0.6475 | 2.4941 |
| 2.000 | 0.120 | 16.67 | 1.760 | 0.7087 | 2.4328 |
| 2.000 | 0.134 | 14.93 | 1.732 | 0.7855 | 2.3561 |
| 2.000 | 0.148 | 13.51 | 1.704 | 0.8611 | 2.2805 |
| 2.000 | 0.165 | 12.12 | 1.670 | 0.9512 | 2.1904 |
Pressure Rating Chart of 304l Stainless Sanitary Tubing
| AVE. WALL INCHES | MIN YIELD STRENGTH (PSI) | MIN TENSILE STRENGTH (PSI) | THEORETICAL BURST PRESSURE * (PSI) | WORKING PRESSURE (PSI) 25% OF BURST | THEORETICAL YIELD POINT ** (PSI) | COLLAPSE PRESSURE *** (PSI) | |
|---|---|---|---|---|---|---|---|
| 0.250 | 0.020 | 30,000 | 75,000 | 14,286 | 3,571 | 5,714 | 4,416 |
| 0.250 | 0.028 | 30,000 | 75,000 | 21,649 | 5,412 | 8,660 | 5,967 |
| 0.250 | 0.035 | 30,000 | 75,000 | 29,167 | 7,292 | 11,667 | 7,224 |
| 0.250 | 0.049 | 30,000 | 75,000 | 48,355 | 12,089 | 19,342 | 9,455 |
| 0.250 | 0.065 | 30,000 | 75,000 | 81,250 | 20,313 | 32,500 | 11,544 |
| 0.375 | 0.020 | 30,000 | 75,000 | 8,955 | 2,239 | 3,582 | 3,029 |
| 0.375 | 0.028 | 30,000 | 75,000 | 13,166 | 3,292 | 5,266 | 4,145 |
| 0.375 | 0.035 | 30,000 | 75,000 | 17,213 | 4,303 | 6,885 | 5,077 |
| 0.375 | 0.049 | 30,000 | 75,000 | 26,534 | 6,634 | 10,614 | 6,816 |
| 0.375 | 0.065 | 30,000 | 75,000 | 39,796 | 9,949 | 15,918 | 8,597 |
| 0.500 | 0.020 | 30,000 | 75,000 | 6,522 | 1,630 | 2,609 | 2,304 |
| 0.500 | 0.028 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
| 0.500 | 0.035 | 30,000 | 75,000 | 12,209 | 3,052 | 4,884 | 3,906 |
| 0.500 | 0.049 | 30,000 | 75,000 | 18,284 | 4,571 | 7,313 | 5,304 |
| 0.500 | 0.065 | 30,000 | 75,000 | 26,351 | 6,588 | 10,541 | 6,786 |
| 0.500 | 0.083 | 30,000 | 75,000 | 37,275 | 9,319 | 14,910 | 8,307 |
| 0.625 | 0.020 | 30,000 | 75,000 | 5,128 | 1,282 | 2,051 | 1,859 |
| 0.625 | 0.028 | 30,000 | 75,000 | 7,381 | 1,845 | 2,953 | 2,568 |
| 0.625 | 0.035 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
| 0.625 | 0.049 | 30,000 | 75,000 | 13,947 | 3,487 | 5,579 | 4,335 |
| 0.625 | 0.065 | 30,000 | 75,000 | 19,697 | 4,924 | 7,879 | 5,591 |
| 0.625 | 0.083 | 30,000 | 75,000 | 27,124 | 6,781 | 10,850 | 6,910 |
| 0.625 | 0.095 | 30,000 | 75,000 | 32,759 | 8,190 | 13,103 | 7,734 |
| 0.625 | 0.109 | 30,000 | 75,000 | 40,172 | 10,043 | 16,069 | 8,639 |
| 0.750 | 0.028 | 30,000 | 75,000 | 6,052 | 1,513 | 2,421 | 2,156 |
| 0.750 | 0.035 | 30,000 | 75,000 | 7,721 | 1,930 | 3,088 | 2,669 |
| 0.750 | 0.049 | 30,000 | 75,000 | 11,273 | 2,818 | 4,509 | 3,664 |
| 0.750 | 0.065 | 30,000 | 75,000 | 15,726 | 3,931 | 6,290 | 4,749 |
| 0.750 | 0.083 | 30,000 | 75,000 | 21,318 | 5,330 | 8,527 | 5,905 |
| 0.750 | 0.095 | 30,000 | 75,000 | 25,446 | 6,362 | 10,179 | 6,637 |
| 0.750 | 0.109 | 30,000 | 75,000 | 30,733 | 7,683 | 12,293 | 7,453 |
| 0.750 | 0.120 | 30,000 | 75,000 | 35,294 | 8,824 | 14,118 | 8,064 |
| 0.875 | 0.020 | 30,000 | 75,000 | 3,593 | 898 | 1,437 | 1,340 |
| 0.875 | 0.028 | 30,000 | 75,000 | 5,128 | 1,282 | 2,051 | 1,859 |
| 0.875 | 0.035 | 30,000 | 75,000 | 6,522 | 1,630 | 2,609 | 2,304 |
| 0.049 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 | |
| 0.875 | 0.065 | 30,000 | 75,000 | 13,087 | 3,272 | 5,235 | 4,126 |
| 0.875 | 0.083 | 30,000 | 75,000 | 17,560 | 4,390 | 7,024 | 5,152 |
| 0.875 | 0.095 | 30,000 | 75,000 | 20,803 | 5,201 | 8,321 | 5,807 |
| 0.875 | 0.109 | 30,000 | 75,000 | 24,886 | 6,221 | 9,954 | 6,543 |
| 0.875 | 0.120 | 30,000 | 75,000 | 28,346 | 7,087 | 11,339 | 7,100 |
| 1.000 | 0.028 | 30,000 | 75,000 | 4,449 | 1,112 | 1,780 | 1,633 |
| 1.000 | 0.035 | 30,000 | 75,000 | 5,645 | 1,411 | 2,258 | 2,027 |
| 1.000 | 0.049 | 30,000 | 75,000 | 8,149 | 2,037 | 3,259 | 2,796 |
| 1.000 | 0.065 | 30,000 | 75,000 | 11,207 | 2,802 | 4,483 | 3,647 |
| 1.000 | 0.083 | 30,000 | 75,000 | 14,928 | 3,732 | 5,971 | 4,567 |
| 1.000 | 0.095 | 30,000 | 75,000 | 17,593 | 4,398 | 7,037 | 5,159 |
| 1.000 | 0.109 | 30,000 | 75,000 | 20,908 | 5,227 | 8,363 | 5,827 |
| 1.000 | 0.120 | 30,000 | 75,000 | 23,684 | 5,921 | 9,474 | 6,336 |
| 1.000 | 0.134 | 30,000 | 75,000 | 27,459 | 6,865 | 10,984 | 6,963 |
| 1.250 | 0.035 | 30,000 | 75,000 | 4,449 | 1,112 | 1,780 | 1,633 |
| 1.250 | 0.049 | 30,000 | 75,000 | 6,380 | 1,595 | 2,552 | 2,260 |
High-quality Sanitary 316L Stainless Steel Tube, Available Minimum Quantity Of 304 SS Sanitary Tubing, Sanitary Stainless Tube, Buy ISO Certified 304l Stainless Sanitary Tubing
Sanitary Stainless Steel Tubing Composition Chart
| STAINLESS STEEL SANITARY TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Mechanical Characteristics of A270 Ss 316l Sanitary Tube
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
Stainless Steel Sanitary Pipe Equivalent Material Grade
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| Stainless Steel Sanitary Tube 304 | S30400 | 1.4301 |
| Stainless Steel Sanitary Tube 304L | S30403 | 1.4306 |
| Stainless Steel Sanitary Tube 316 | S31600 | 1.4436 |
| Stainless Steel Sanitary Tube 316L | S31603 | 1.4404 |
SS Sanitary Tube Stockist Distributor of following exporter
