SA 335 Grade P5 Alloy Steel Pipe, A335 gr p5 Chrome Pipe exporter
ASTM A335 P5 Alloy Steel Seamless Pipe is part of the A335 family of high performance ferritic alloy steel with chromium and molybdenum in the content. The material can perform at high temperatures and there are different grades such as p5, p9, p11, p22 and p91. Metallon Pipings FZ LLC is a leading stockiest and exporter of the ASTM A335 P5 Seamless Pipe products. The elastic limit and the strength of the material is increased by the molybdenum addition.
The material has carbon, manganese, phosphorus, sulfur, silicon, 8% chromium and molybdenum in the mixture. The SA 335 Grade P5 Alloy Steel Pipe has similar strength to most austenitic stainless steel grades with 205MPa minimum yield strength and 415MPa minimum tensile strength. The ASTM A335 P5 Pipe can be full annealed or isothermal annealed, normalized and tempered as the heat treatment to improve hardness. There are welded and seamless pipes in the grade and the A335 P5 Welded Pipe has varying wall thicknesses and diameters. The size range of the pipes is from 1/8 inches to 42 inches. There are schedules 20 through XXH and heavier as well. The applications of the Alloy Steel P5 EFW Pipes can be seen in petrochemicals, oil and gas industrial applications, power plants and other high pressure and high temperature services. We provide the pipes for all different application types. Please feel free to contact us for more information on the products such as the Alloy Steel P5 Chrome Moly Pipe and the pricing
Alloy Steel A335 P5 Seamless Pipe Distributor, Buy ASTM A335 P5 Alloy Steel Pipe, P5 pipe price in india
Specification Format of ASTM A335 P5 Alloy Steel Seamless Pipe
| A335 P5 Pipes Size | 1/2” NB to 36” NB |
| Alloy Steel P5 Pipes Standard | ASTM A335 P5, SA335 P5 (with IBR Test Certificate) |
| ASTM A335 P5 Pipes Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Material Grade P5 Pipes Thickness | 3-12mm |
| ASTM A335 P5 Pipes Tolerance | Cold drawn pipe: +/-0.1mmCold rolled pipe: +/-0.05mm |
| ASTM A335 P5 Pipes Type | Seamless / ERW / Welded / Fabricated |
| Craft | Cold rolled and Cold drawn |
| ASTM A335 P5 Pipes Length | Standard Double & In Cut length also. |
| GR P5 Pipes available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| Specialized in | Large Diameter ASTM A335 P5 Pipe |
| Alloy Steel A335 P5 Pipes End | Plain End, Beveled End, Treaded |
| Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
Price List of A335 P5 Alloy steel pipe
| Size” | MSL Make | ISMT make | JSL Make |
|---|---|---|---|
| 1/2″ | 4,264.71 | 4,257.35 | 4,272.06 |
| 3/4″ | 4,044.12 | 4,036.76 | 4,051.47 |
| 1″ | 3,897.06 | 3,889.71 | 3,904.41 |
| 1.25″ | 3,852.94 | 3,845.59 | 3,860.29 |
| 1.5″ | 3,750.00 | 3,742.65 | 3,757.35 |
| Price USD/Ton All prices are applicable for SCH 40, SCH 60, SCH 80 & SCH XS | |||
Other ASTM A335 P5b Pipe Available grades
| Tubular Products |
|---|
| Alloy Steel Seamless Pipes & Tubes ASTM A335 Gr P22, Alloy pipe a335 p11, ASTM A335 Gr P5, ASTM A335 Gr P9, ASTM A335 Gr P12 & ASTM A335 Gr P91ASTM A519 Standard Specification for Seamless Carbon and Alloy Steel Mechanical Tubing 4130DIN 17175 Seamless Tubes of Heat-resistant Steels 15Mo3; 13CrMo44; 10CrMo910 EN 10216-2 Seamless steel tubes for pressure purposes Part 2: Non-alloy and alloy steel tubes with specified elevated temperature properties 16Mo3; 13CrMo4-5; 10CrMo9-10; 11CrMo9-10; X10CrMoVNb9-1GOST 8732-78 Seamless Hot-worked Steel Pipes 20Ch; 40Ch; 15ChM; 30ChMAGOST 8734-75 Seamless cold-formed steel pipes 20Ch; 40Ch; 15ChMGOST 550-75 Seamless steel tubes for petroleum processing and the petrochemical industry 12ChM; 15Ch5MTU 14-3R-55-2001 Seamless steel pipes for steam boilers and pipelines 12Ch1MF; 12Ch1MF-PV; 15ChMTU 14-3-460-2003 Seamless steel tubes for boilers and pipelines 12Ch1MF; 12Ch1MF-PV; 15ChMGOST 9567-75 Precision steel pipes 20Ch; 15ChMMain material grades: DIN standard carbon & alloy steel tubes St37.0/st52.0/DIN 2391/st35.8/TT St 35N/15Mo3/13CrMo44, 10 CrMo910/X20 CrMoV 12 1/X10 CrMo VNb 9 1/15 Ni CuMoNb 5 EN Standard (EN10216-2) P235GH TC1 &TC2/16Mo3/13CrMo4-5/10CrMo9-10/X20 CrMoV11-1 , X10 CrMoVNb9-1 |

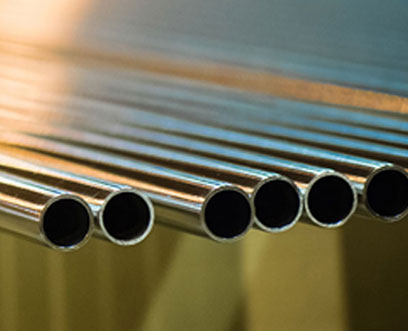

Most Common Types Of SA 335 Grade P5 Alloy Steel Pipe
ASTM A335 P5 Alloy Steel Pipe Type

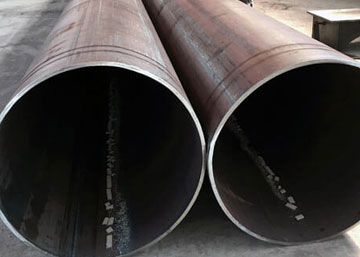

P5 Seamless Pipe :-
The material P5 is especially suited for steam boiler, boiler parts, boiler drum, pressure vessel for the apparatus engineering and similar purposes. It can be used in permanent operation with wall temperatures up to about 590 °C ‘1094 °F+.

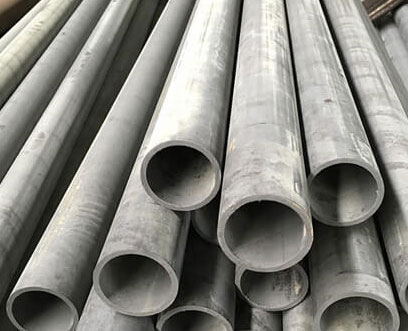

A335 P5 chrome pipe :-
Metallon Pipings FZ LLC is a premier worldwide supplier for all your Chrome Moly Alloy A335 / SA335 Seamless Piping needs. These ASTM S/A 335 Chrome Moly Grade P5 Pipes may be furnished bare or coated and with capped ends.

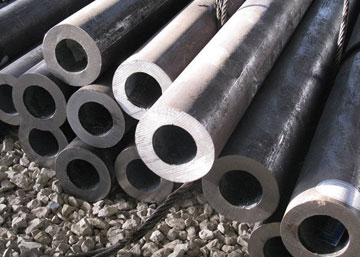

ASTM A335 P5 High Pressure Steel Pipe :-
We are stockholder & suppliers of High pressure P5 Seamless tubes and pipes, mostly used in Power Plants. The products are supplied with 3.1 test certificates, according to EN 10204. Certification according to 3.2 can be agreed at the time of order.

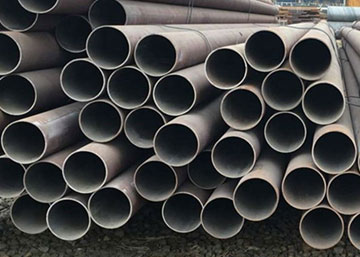

ASTM A335 P5 Boiler Pipe :-
Supplying P5 Boiler Pipes & Seamless hot finished tubes and pipes for utility boilers, industrial boilers and heat recovery steam generators. The P5 tubes and pipes are supplied in random lengths or in fixed lengths to be analysed and agreed at time of order, in the range between 4,000 mm and 26,000 mm depending on the size.
ASTM A335 P5 Seamless Pipe, ASME SA 335 P5 welded pipe, SA335 P5 material, Grade P5 chrome pipe exporter in UAE
Wall Thickness of A335 gr p5 Chrome Pipe
| ASTM A335 P5 Pipes Types | Out diameter | Wall thickness | Length |
|---|---|---|---|
| ASTM A335 P5 Seamless Pipes (Custom Sizes) | 1/2″ NB – 60″ NB | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Custom |
| ASTM A335 P5 Welded Pipes (in Stock + Custom Sizes) | 1/2″ NB – 24″ NB | As per requirement | Custom |
| ASTM A335 P5 ERW Pipes (Custom Sizes) | 1/2″ NB – 24″ NB | As per requirement | Custom |
| ASTM A335 High Pressure P5 Boiler Pipes | 16″ NB – 100″ NB | As per requirement | Custom |
Tolerance of ASME SA335 Grade P5 Pipe
| ASTM A450 | Hot rolled | Outside Diameter, mm | Tolerance, mm |
| OD≤101.6 | +0.4/-0.8 | ||
| 101.6＜OD≤190.5 | +0.4/-1.2 | ||
| 190.5＜OD≤228.6 | +0.4/-1.6 | ||
| Cold Drawn | Outside Diameter, mm | Tolerance, mm | |
| OD＜25.4 | ±0.10 | ||
| 25.4≤OD≤38.1 | ±0.15 | ||
| 38.1＜OD＜50.8 | ±0.20 | ||
| 50.8≤OD＜63.5 | ±0.25 | ||
| 63.5≤OD＜76.2 | ±0.30 | ||
| 76.2≤OD≤101.6 | ±0.38 | ||
| 101.6＜OD≤190.5 | +0.38/-0.64 | ||
| 190.5＜OD≤228.6 | +0.38/-1.14 | ||
| ASTM A530 & ASTM A335 | NPS | Outside Diameter, inch | Tolerance, mm |
| 1/8≤OD≤1-1/2 | ±0.40 | ||
| 1-1/2＜OD≤4 | ±0.79 | ||
| 4＜OD≤8 | +1.59/-0.79 | ||
| 8＜OD≤12 | +2.38/-0.79 | ||
| OD>12 | ±1% |
A335 P5 Seamless Pipe Size In Inch
| O.D. x Thickness | O.D x Thickness | O.D x Thickness |
|---|---|---|
| 38.1 x 3.2mm | 57.0 x 4.9mm | 76.2 x 4.0mm |
| 38.1 x 4.0mm | 57.0 x 6.3mm | 76.2 x 5.0mm |
| 38.1 x 6.3mm | 57.0 x 7.9mm | 76.2 x 6.3mm |
| 42.4 x 3.2mm | 60.3 x 3.2mm | 82.5 x 4.5mm |
| 42.4 x 4.0mm | 60.3 x 3.6mm | 88.9 x 3.2mm |
| 44.5 x 3.2mm | 60.3 x 5.0mm | 88.9 x 3.6mm |
| 44.5 x 6.3mm | 63.5 x 3.2mm | 88.9 x 4.0mm |
| 48.3 x 3.2mm | 63.5 x 3.6mm | 101.6 x 3.6mm |
| 48.3 x 3.6mm | 63.5 x 4.0mm | 101.6 x 4.5mm |
| 50.8 x 4.5mm | 63.5 x 6.3mm | 101.6 x 6.3mm |
| 51.0 x 3.2mm | 63.5 x 7.9mm | 114.3 x 3.6mm |
| 51.0 x 3.6mm | 70.0 x 3.2mm | 114.3 x 5.0mm |
| 51.0 x 6.3mm | 70.0 x 3.6mm | 139.7 x 4.0mm |
| 57.0 x 3.2mm | 70.0 x 6.3mm | 139.7 x 5.0mm |
| 57.0 x 3.6mm | 76.2 x 3.6mm | 139.7 x 6.3mm |
ASTM A335 P5 Pipe Supplier, Stockholders of ASTM A335 Gr P5 Pipe, Instant Delivery Available on ASTM A335 P5 Material, SA335 P5 Material, Alloy Steel Grade P5 Pipe, Buy UNS K41245 High-Pressure Pipe At Discounted Price.
Weight Chart Of ASTM A335 P5 Alloy Steel Pipe
| Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot |
|---|---|---|---|---|
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 |
| 0.147 | 0.546 | 1.09 | ||
| 0.188 | 0.464 | 1.31 | ||
| 0.294 | 0.252 | 1.72 | ||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 |
| 0.154 | 0.742 | 1.48 | ||
| 0.219 | 0.612 | 1.95 | ||
| 0.308 | 0.434 | 2.44 | ||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 |
| 0.179 | 0.957 | 2.17 | ||
| 0.250 | 0.815 | 2.85 | ||
| 0.358 | 0.599 | 3.66 | ||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 |
| 0.191 | 1.278 | 3.00 | ||
| 0.250 | 1.160 | 3.77 | ||
| 0.382 | 0.896 | 5.22 | ||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 |
| 0.200 | 1.500 | 3.63 | ||
| 0.281 | 1.338 | 4.86 | ||
| 0.400 | 1.100 | 6.41 | ||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 |
| 0.154 | 2.067 | 3.66 | ||
| 0.218 | 1.939 | 5.03 | ||
| 0.250 | 1.875 | 5.68 | ||
| 0.281 | 1.813 | 6.29 | ||
| 0.344 | 1.687 | 7.47 | ||
| 0.436 | 1.503 | 9.04 | ||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 |
| 0.203 | 2.469 | 5.80 | ||
| 0.216 | 2.443 | 6.14 | ||
| 0.250 | 2.375 | 7.02 | ||
| 0.276 | 2.323 | 7.67 | ||
| 0.375 | 2.125 | 10.02 | ||
| 0.552 | 1.771 | 13.71 | ||
| 3 | 3.50 | 0.120 | 3.260 | 4.34 |
| 0.156 | 3.188 | 5.58 | ||
| 0.172 | 3.156 | 6.12 | ||
| 0.188 | 3.124 | 6.66 | ||
| 0.216 | 3.068 | 7.58 | ||
| 0.250 | 3.000 | 8.69 | ||
| 0.281 | 2.938 | 9.67 | ||
| 0.300 | 2.900 | 10.26 | ||
| 0.438 | 2.624 | 14.34 | ||
| 0.600 | 2.300 | 18.6 | ||
| 3 1/2 | 4.0 | 0.120 | 3.760 | 4.98 |
| 0.226 | 3.548 | 9.12 | ||
| 0.250 | 3.500 | 10.02 | ||
| 0.281 | 3.438 | 11.17 | ||
| 0.318 | 3.364 | 12.52 | ||
| 0.636 | 2..728 | 22.87 | ||
| 4 | 4.5 | 0.120 | 4.260 | 5.62 |
| 0.156 | 4.188 | 7.24 | ||
| 0.188 | 4.124 | 8.67 | ||
| 0.203 | 4.094 | 9.32 | ||
| 0.219 | 4.062 | 10.02 | ||
| 0.237 | 4.026 | 10.80 | ||
| 0.250 | 4.000 | 11.36 | ||
| 0.281 | 3.938 | 12.67 | ||
| 0.312 | 3.876 | 13.97 | ||
| 0.337 | 3.826 | 15.00 | ||
| 0.438 | 3.624 | 19.02 | ||
| 0.531 | 3.438 | 22.53 | ||
| 0.674 | 3.152 | 27.57 | ||
| 5 | 5.563 | 0.188 | 5.187 | 10.80 |
| 0.219 | 5.125 | 12.51 | ||
| 0.258 | 5.047 | 14.63 | ||
| 0.281 | 5.001 | 15.87 | ||
| 0.312 | 4.939 | 17.51 | ||
| 0.344 | 4.875 | 19.19 | ||
| 0.375 | 4.813 | 20.80 | ||
| 0.500 | 4.563 | 27.06 | ||
| 0.625 | 4.313 | 32.99 | ||
| 0.750 | 4.063 | 38.59 | ||
| 6 | 6.625 | 0.109 | 6.407 | 7.59 |
| 0.134 | 6.357 | 9.30 | ||
| 0.156 | 6.313 | 10.79 | ||
| 0.188 | 6.249 | 12.94 | ||
| 0.203 | 6.219 | 13.94 | ||
| 0.219 | 6.187 | 15.00 | ||
| 0.250 | 6.125 | 17.04 | ||
| 0.280 | 6.065 | 18.99 | ||
| 0.312 | 6.001 | 21.06 | ||
| 0.344 | 5.937 | 23.10 | ||
| 0.375 | 5.875 | 25.05 | ||
| 0.432 | 5.761 | 28.60 | ||
| 0.500 | 5.625 | 32.74 | ||
| 0.562 | 5.501 | 36.43 | ||
| 0.625 | 5.375 | 40.09 | ||
| 0.719 | 5.187 | 45.39 | ||
| 0.864 | 4.897 | 53.21 | ||
| 1.000 | 4.625 | 60.13 | ||
| 1.125 | 4.375 | 66.14 |
P5 welded pipe chemical composition comparison
| Grade | UNS | C≤ | Mn | P≤ | S≤ | Si≤ | Cr | Mo |
| P1 | K11522 | 0.10~0.20 | 0.30~0.80 | 0.025 | 0.025 | 0.10~0.50 | – | 0.44~0.65 |
| P2 | K11547 | 0.10~0.20 | 0.30~0.61 | 0.025 | 0.025 | 0.10~0.30 | 0.50~0.81 | 0.44~0.65 |
| P5 | K41545 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 4.00~6.00 | 0.44~0.65 |
| P5b | K51545 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 1.00~2.00 | 4.00~6.00 | 0.44~0.65 |
| P5c | K41245 | 0.12 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 4.00~6.00 | 0.44~0.65 |
| P9 | S50400 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50~1.00 | 8.00~10.00 | 0.44~0.65 |
| P11 | K11597 | 0.05~0.15 | 0.30~0.61 | 0.025 | 0.025 | 0.50~1.00 | 1.00~1.50 | 0.44~0.65 |
| P12 | K11562 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 0.80~1.25 | 0.44~0.65 |
| P15 | K11578 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 1.15~1.65 | – | 0.44~0.65 |
| P21 | K31545 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 2.65~3.35 | 0.80~1.60 |
| P22 | K21590 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50 | 1.90~2.60 | 0.87~1.13 |
| P91 | K91560 | 0.08~0.12 | 0.30~0.60 | 0.020 | 0.010 | 0.20~0.50 | 8.00~9.50 | 0.85~1.05 |
| P92 | K92460 | 0.07~0.13 | 0.30~0.60 | 0.020 | 0.010 | 0.50 | 8.50~9.50 | 0.30~0.60 |
ASTM A335 P5 Pipe Features
The benefits of alloy steel pipes include its tensile strength, yield strength, fatigue resistance, toughness, and wear resistance. As suppliers of seamless and welded alloy steel pipes, Metallon Pipings FZ LLC specializes in ‘chrome moly’ SA335 piping in grades P5, P9, P11, P22, and P91. Chrome moly power piping is used extensively in power plants throughout the world. In addition to SA335, other specifications we offer include ASTM A519 and rolled and welded pipe in A-691. Alloy piping products are available in outer diameters through 60” (OD) and up to 4” wall thickness.
ASTM A335 Gr. P5 Pipe Options:
- Fixed or multiple lengths
- Special tolerances
- Special tests
- Surface protection
- Special marking
- Colour coding
- Special packing
Ordering Information
- Norms and specifications
- Steel grade and heat treatment
- Sizes, minimum or average wall thickness
- ASTM A335 Gr. P11 Pipe Lengths
- Quantity
- Surface finishing
- Inspection
Distributors of Alloy Steel P5 EFW Pipes, Alloy Steel P5 Hollow Pipe, ASTM A335 P5 Alloy Steel Pipes, We Stock Alloy Steel P5 Welded Pipes, ASTM A335 P5 Pipe Supplier, ASME SA 335 Alloy Steel P5 Chrome Moly Pipes, Alloy Steel Gr.P5 Pipes in Different Sizes and Shapes
ASTM A335 P5c Pipe Our Specialization
Metallon Pipings FZ LLC company is India’s leading suppliers & exporter of Alloy Steel Pipes & Tubes. ANSI B 36.10, Alloy Steel GR. P22 Seamless Round, Square, Rectangular, Hydraulic Pipes Suppliers in UAE. We have specialization in ASTM A335 Gr P5 Seamless Tubes and Pipes for Power Plants | ASTM A335 Gr P5 Seamless hot finished tubes and pipes for utility boilers, industrial boilers and heat recovery steam generators | ASTM A335 Gr P5 Cold drawn seamless tubes for heat exchangers and boilers
We have supplied ASTM A335/ASME SA335 P5 Alloy Steel Seamless Pipes to 280+ companies from Oil & Gas Industry, Petrochemical, Offshore & Onshore Projects, Rigs, Chemical & Fertilizer companies in more than 80 countries.
UNS K41545 Pipe Available Surface Finish
Surface Finishes: Bare, Oiled, Mill Varnish, Galv, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap.
End Finishes: Beveled, Square Cut, Threaded & Coupled.
SA 335 P5 welded pipe Chemical Composition
| Alloy Steel P5 | C | Cr | S | Si | Mn | Mo | P |
| 0.05 – 0.15 | 1.00 – 1.50 | 0.025 max | 0.50 – 1.00 | 0.30 – 0.60 | 0.44 – 0.65 | 0.025 max |
Mechanical Characteristics Grade P5 chrome pipe
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
P5 boiler tube Packaging & Shipping
ASTM A335 Gr. P5 Steel Pipes may be furnished bare or coated and with capped ends. Tubes and pipes up to 3” OD will be supplied in bundles. In order to prevent rust during sea shipment, bundles of ASTM A335 Gr. P5 tubes may be wrapped with polypropylene sheets, and secured with flat steel bands. Over 3” OD will be supplied loose.
ASTM A335 P5 Seamless Pipe Stock of following exporter
