Hastelloy C22 Tube Fittings, ASTM B564 Hastelloy C276 Male Elbow, Hastelloy C22 Tube Fitting Union, Hastelloy C276 Male Tee, Hastelloy C22 Tube Fitting Manufacturer and Suppliers In Mumbai, India.

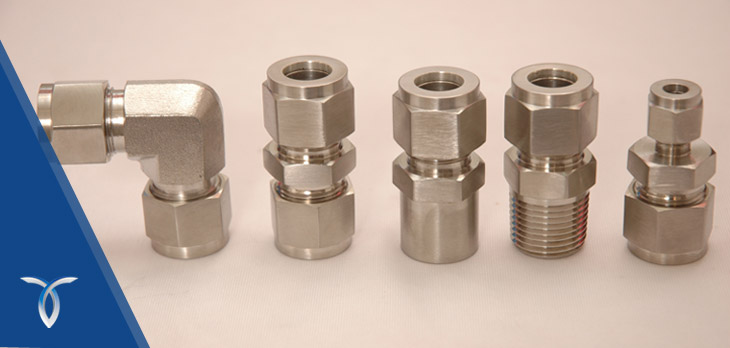

We are engaged in offering a wide range of Hastelloy C22 / C276 Tube Fittings which includes Male Connectors, Female Connectors, Union and Other Tube Fittings.
Hastelloy C22 Tube Fittings, C22 Hastelloy Long Reducers, C22 Hastelloy Plug, Hastelloy UNS N06022 Tube Vent Protectors Exporter, Alloy C22 Tube Pipe 90 Elbow, C22 Hastelloy Lateral Tee, C22 Alloy Tube Fitting 90deg. Elbow, Alloy DIN NR. 2.4602 Tube Fittings Exporter in UAE.
Metallon Pipings FZ LLC is one of the leading Exporter, and Supplier of Hastelloy C22 / C276 Tube Fittings using high quality raw materials as per customer specific requirements. Our offered range of stainless steel tube fittings is widely used in various application industries such as power plants, automobile, heavy engineering, offshore and chemical etc.
Standard Specification For Hastelloy C22 / C276 Tube Fittings
Specifications
ASTM / ASME B574 / SB574
Size
6mm to 38mm to 1/4″ to 1 1/2″
Thread
NPT, BSP, BSPT, UNF, ISO, SAE etc.
Brass
ASTM B16 ASTM B 453
Hastelloy C22 / C276 Tube Fittings for Chemical Composition
Grade
C
Mn
Si
S
Co
Ni
Cr
Fe
Mo
P
C22
0.010 max
0.50 max
0.08 max
0.02 max
2.50 max
50.015 min*
20.00 – 22.50
2.00 – 6.00
12.50 – 14.50
0.02 max
C276
0.010 max
1.00 max
0.08 max
0.03 max
2.50 max
50.99 min*
14.50 – 16.50
4.00 – 7.00
15.00 – 17.00
0.04 max
Hastelloy C22 / C276 Tube Fittings For Mechanical Properties
Element
Density
Melting Point
Tensile Strength
Yield Strength (0.2%Offset)
Elongation
Hastelloy C22
8.69 g/cm3
1399 °C (2550 °F)
Psi – 1,00,000 , MPa – 690
Psi – 45000 , MPa – 310
45 %
Hastelloy C276
8.89 g/cm3
1370 °C (2500 °F)
Psi – 1,15,000 , MPa – 790
>Psi – 52,000 , MPa – 355
40 %
Hastelloy C22 / C276 Tube Fittings For Equivalent Grades
STANDARD
WERKSTOFF NR.
UNS
JIS
GOST
EN
OR
Hastelloy C22
2.4602
N06022
NW 6022
–
NiCr21Mo14W
–
Hastelloy C276
2.4819
N10276
NW 0276
ХН65МВУ
NiMo16Cr15W
ЭП760
Hastelloy C22 / C276 Tube Fittings Packaging
Hastelloy C22 / C276 Tube Fittings are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our Hastelloy C22 Tube Fittings are manufactured in accordance with international standards. Hastelloy C276 Tube Fittings are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Hastelloy C22 Tube Fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on Hastelloy C22 / C276 Tube Fittings.
Contact us to know more.
