Inconel 600 Forged Fittings, ASTM B564 Inconel 625 Forged Elbow, Inconel 600 Forged Tee, Inconel 625 Forged BEND, 600 Alloy Forged Cap Manufacturer and Suppliers In Mumbai, India.
Metallon Pipings FZ LLC offers a wide range of Alloy 600 Forged Fittings, where customers can purchase the same at industry leading prices. Our Inconel 600 Forged Forged Elbow (UNS N06600) are used for furnace components, in chemical and food processing, etc. These Inconel 600 Forged Tee display freedom from aging or stress corrosion throughout the annealed to heavily cold worked condition range. The high nickel content in our Inconel 600 Forged Cross enables it to retain considerable resistance under reducing conditions. These Inconel 600 Forged Cap is also often used in high temperature static applications. Inconel 600 Elbow Forged Fittings shows high levels of atmospheric corrosion. Our Inconel 625 Forged Fittings cannot be hardened by heat treating and also displays good heat resistance and freedom from aging or stress corrosion throughout the annealed to heavily cold worked condition range.
ASME 16.11 Inconel Forged Fittings, 625 Inconel Forged Equal Tee, Inconel 600 Forged Exporter, Inconel 625 Hexagonal Plug, Inconel GOST МНЖМц 28-2,5-1,5 Forged Plug, Inconel 625 Lateral Tee, ASME SB564 Inconel 600 Class 6000 Forged Forged Fittings Supplier in UAE.
These Inconel 600 Forged Coupling is a nickel – chromium alloy designed for use from cryogenic to elevated temperatures in the range of 2000 degree F (1093 degree C). Our Inconel 600 Forged Threaded Bushing is a non – magnetic, nickel – based high temperature alloy possessing an excellent combination of high strength, hot and cold workability, and resistance to ordinary form of corrosion. Meanwhile, these Inconel 600 Forged Threaded Union are also being offered in different sizes and shapes to our customers.
Standard Specification For Inconel 600/625 Forged Fittings
Specifications
ASTM B564 & ASME B564
Dimension Standard
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size
1/8” NB to 4” NB
Class
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type
Socketweld Fittings, Screwed-Threaded Fittings
Inconel 600/625 Forged Fittings for Chemical Composition
Grade
C
Mn
Si
S
Cr
Fe
Ni
Cr
Inconel 600
0.15 max
1.00 max
0.50 max
0.015max
0.50 max
6.00 – 10.00
72.00 min
14.00 – 17.00
Inconel 625
0.10 max
0.50 max
0.50 max
0.015max
–
5.0 max
58.0 min
20.0 – 23.0
Inconel 600/625 Forged Fittings For Mechanical Properties
Element
Density
Melting Point
Tensile Strength
Yield Strength (0.2%Offset)
Elongation
Inconel 600
8.47 g/cm3
1413 °C (2580 °F)
Psi – 95,000 , MPa – 655
Psi – 45,000 , MPa – 310
40 %
Inconel 625
8.4 g/cm3
1350 °C (2460 °F)
Psi – 1,35,000 , MPa – 930
Psi – 75,000 , MPa – 517
42.5 %
Inconel 600/625 Forged Fittings For Equivalent Grades
STANDARD
WERKSTOFF NR.
UNS
JIS
BS
GOST
AFNOR
EN
Inconel 600
2.4816
N06600
NCF 600
NA 13
МНЖМц 28-2,5-1,5
NC15FE11M
NiCr15Fe
Inconel 625
2.4856
N06625
NCF 625
NA 21
ХН75МБТЮ
NC22DNB4MNiCr22Mo9Nb
NiCr23Fe

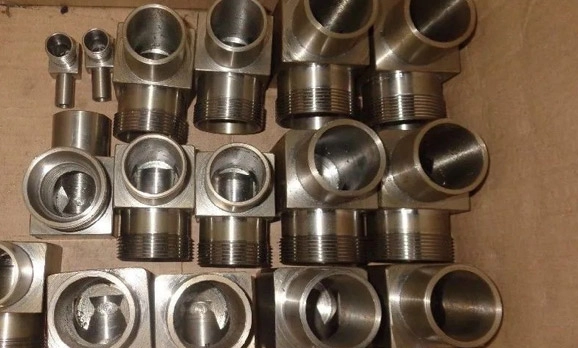

Inconel 600/625 Forged Fittings Packaging
Inconel 600/625 Forged Fittings are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our Inconel 600/625 Forged Fittings are manufactured in accordance with international standards. Inconel 600/625 Forged Fittings are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Inconel 600/625 Forged Fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on Inconel 600/625 Forged Fittings.
Contact us to know more.
