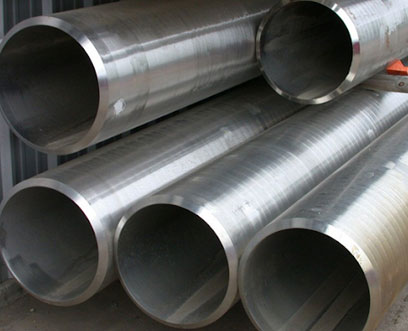

Inconel 600 Seamless & ASTM B167 UNS N06600 Welded Pipe

Alloy 600 Seamless Pipe, Ni 600 Hot Finished Pipe supplier

Inconel 600 Pipe is made up of a high nickel alloy that has 72% nickel in the composition with carbon, manganese, silicon, iron, sulfur, chromium and copper. Metallon Pipings FZ LLC is a leading exporter and supplier of the Alloy 600 Seamless Pipe and other types. The high nickel and 14% chromium content gives the material with high tensile and yield strength. The minimum yield strength of the pipes is 310MPa and the minimum tensile strength is 655MPa. There are seamless, ERW, fabricated, LSAW and ASTM B167 UNS N06600 Welded Pipe types. The standards are under ASTM, ASME and API and the specifications are ASTM B167, B829, B517.

The wall thicknesses range from 0.5mm to 20mm and the sizes range from 4mm to 219mm. The welded pipes range from 5mm to 1219.2mm for welded and EFW pipes. The ASTM B167 Inconel 600 Seamless Pipeare used in various industrial applications which need high corrosion resistance, especially against the chloride ions, acidic content and other corrosive media. The UNS N06600 Welded Pipe has different schedules. There are sch5 through sch160. The forms range from round to hydraulic. The length of the Alloy 600 Pipes ranges from single random, double random and cut to length sizes. The Inconel 600 Welded Pipes are different in pipe ends like plain end, beveled end and threaded ends. Please feel free to contact us for any information on the Inconel 600 ERW Pipes or prices.

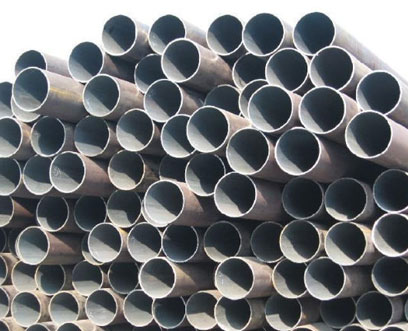

AMS 5580 ASTM B167 UNS N06600 Welded Pipe, DIN 17742 Inconel 600 Clad Pipe, ASTM B829 600 Inconel Exhaust Pipe Supplier in UAE

Specification Chart of Inconel 600 Pipe

ASTM Specification	ASTM B 167 ASME SB 167 / ASTM B 829 ASME SB 829 / ASTM B 517 ASME SB 517
Standard	ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB
ASTM B167 inconel 600 Seamless Pipe Size	4 to 219mm W. T.: 0.5 to 20mm
UNS N06600 Welded Pipe Size	5.0 – 1219.2 mm
Inconel WERKSTOFF NR. 2.4816 EFW Pipe size	5.0 – 1219.2 mm
Swg & Bwg	12 Swg., 10 Swg., 16 Swg., 14 Swg., 20 Swg., 18 Swg.,
600 Inconel Pipe Schedule	XS, SCH30, SCH40, XXS, SCH80, SCH120, SCH60, SCH140, STD, SCH10, SCH10S, SCH40S, SCH80, SCH20, SCH5, SCH160
inconel 600 pipe Length	Double Random, Single Random, Standard & Cut length Pipe
Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc
Form	inconel 600 are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc.
Type of 600 Alloy Pipe	Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW inconel 600
inconel 600 pipe End	Plain End, Beveled End, Treaded Pipe, Screwed ends
Marking on alloy 600 Pipe	All ASTM B167 inconel 600 Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Application of inconel 600 pipe	Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry
Value Added Service	Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
Specialize in	Large Diameter inconel 600 pipe
inconel 600 pipe manufacturing Technique	Cold drawn, hot drawn, bright annealed, solid solution, hot extruding
Our stockyard	Noida, Shivamogga, Pune, Ahmedabad, Chennai, Hyderabad, Bengaluru, Mumbai, Coimbatore, Bhubaneswar, Thiruvananthapuram, Dhanbad, Agra, Tiruchirappalli, Tirunelveli, Navi Mumbai, Pimpri-Chinchwad,
inconel 600 pipe Test Certificate	Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection
Material Test Certificates (MTC)	Material Test Certificates (MTC) as per EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2, 100% Radiography Test Report, Heat Treatment Charts, Raw Materials Certificate, Third Party Inspection Report, Fumigation Certificates, inconel 600 HS Code Commercial Invoice, Form A for Generalized System of Preferences (GSP)

Inconel 600 welded pipe Price list

Price of inconel 600 pipe exporter in UAE	ASTM B167 inconel 600 Pipe Price in UAE (INR)	inconel 600 pipe Price in UK Pound sterling	UNS N06600 Pipe Price in UAE Dirham
Inconel 600 Smls Pipe To Astm B 167 Gr.Uns No. 6600 In 5 Mtrs Length, Cold Drawn, Annealed & Pickled, Size : 8 Nb (219	INR 1,008,889	10927.60 UK Pound sterling	52162.76 UAE Dirham
Inconel Seamless Pipes 600	INR 2,420	26.21 UK Pound sterling	125.12 UAE Dirham
Inconel 600 Smls Pipe To Astm B 167 Gr.Uns No. 6600 In 6 Mtrs Length, Size ; 7.981 (202.72 Mm) Od X 0.5 (12.7 Mm) Th	INR 5,085,328	55080.81 UK Pound sterling	262927.57 UAE Dirham
Inconel 600 Seamless Pipes	INR 3,397	36.79 UK Pound sterling	175.64 UAE Dirham

ASTM B167 Inconel 600 seamless pipe, Inconel 600 pipe Supplier in UAE, Buy ASTM B517 UNS N06600 Welded Pipe, Alloy 600 rectangular pipe at best price

Common Types Of Alloy 600 Seamless Pipe

Inconel 600 ERW Pipe Wall Thickness

BS 3072-3076 (NA14) DIN 17742

Types	Out diameter	Wall thickness	Length
NB Sizes (in stock)	1/8” ~ 8”	SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160	Upto 6 Meters
Inconel 600 Seamless Pipe (Custom Sizes)	5.0mm ~ 203.2mm	As per requirement	Upto 6 Meters
Inconel 600 Welded Pipe (in Stock + Custom Sizes)	5.0mm ~ 1219.2mm	1.0 ~ 15.0 mm	Upto 6 Meters

ASTM B167 Inconel 600 seamless pipe Sizes

ASTM B167 inconel 600 Pipe OD mm	Pipe WT mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

Get a Quote from 600 Inconel Seamless Pipe exporter, Prime quality Inconel N06600 Welded Pipe, ASME SB167 UNS N06600, ASTM B751 SCH40 Inconel 600 pipe check International Standard DIN 17754 WERKSTOFF Nr 2.4816 TÜV 305 AFNOR-NC 15 Fe

600 Inconel Seamless Pipe Standard Weight Chart

NPS	Outside Diameter		Wall Thickness			Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

Inconel N06600 Welded Pipe Schedule Chart

1/8″ IPS(.405″O. D.)	3 1/2″ IPS( 4.000″O. D.)
SCH 40, 80	SCH 10, 40, 80, 160, XXH
1/4″ IPS(.540″O. D.)	4″ IPS(4.500″O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
3/8″ IPS(.675″O. D.)	5″ IPS( 5.563″O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
1/2″ IPS(.840″O. D.)	6″ IPS(6.625″O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
3/4″ IPS(1.050″O. D.)	8 ” IPS(8.625″O. D.)
SCH 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
1″ IPS:(1.315′O. D.)	10″ IPS(10.750″O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4″ IPS(1.660″O. D.)	12″ IPS(12.750″O. D.)
SCH 10, 40, 80, 160, XXH	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2″ IPS(1.900″O. D.)	14″ IPS(14.000″O. D.)
SCH 10, 40, 80, 160, XXH	SCH10 (.188), SCH40 (.375)
2″ IPS(2.375″O. D.)	16″ IPS(16.000″O. D.)
SCH 10, 40, 80, 160, XXH	SCH10(.188), SCH40(.375)
2 1/2″ IPS(2.875″O. D.)	18″ IPS (18.000″O. D.)
SCH 10, 40, 80, 160, XXH	SCH-40 (.375)
3″ IPS( 3.500″O. D.)
SCH 5, 10, 40, 80, 160, XXH

Pressure Rating of Inconel WERKSTOFF NR. 2.4816 Pipe

American standard for Process piping (ASME B31.3 : 2012)

Selected wall tolerance: ±10%
OUTSIDE DIAMETER AND WALL THICKNESS (MM): 1.59 x 0.36

Grade	Maximum internal pressure, ksi
	100°F	200°F	300°F	400°F	500°F	600°F	700°F	Comments
N06600 :1	8.02	8.02	8.02	8.02	8.02	8.02	8.02	B167 OD>5″ and hotworked
N06600 :2	9.6	9.6	9.6	9.6	9.6	9.6	9.6	B167 OD<=5″ and hotworked + OD>5″ and coldworked
N06600 :3	11.19	11.19	11.19	11.19	11.19	11.19	11.19	B167 OD<=5″ and coldworked

Outside Diameter And Wall Thickness (MM): 6 x 1

Grade	Maximum internal pressure, ksi
	100°F	200°F	300°F	400°F	500°F	600°F	700°F	Comments
N06600 :1	392	392	392	392	392	392	392	B167 OD>5″ and hotworked
N06600 :2	470	470	470	470	470	470	470	B167 OD<=5″ and hotworked + OD>5″ and coldworked
N06600 :3	547	547	547	547	547	547	547	B167 OD<=5″ and coldworked

Outside Diameter And Wall Thickness (MM): 8 x 1

Grade	Maximum internal pressure, ksi
	100°F	200°F	300°F	400°F	500°F	600°F	700°F	Comments
N06600 :1	284	284	284	284	284	284	284	B167 OD>5″ and hotworked
N06600 :2	340	340	340	340	340	340	340	B167 OD<=5″ and hotworked + OD>5″ and coldworked
N06600 :3	397	397	397	397	397	397	397	B167 OD<=5″ and coldworked

long established Supplier of alloy 600 pipes, check DIN 17750 Pipe Price Per Kg, high-quality ASTM B167 UNS N06600 Pipe, Inconel 600 square pipe, 2.4816 Alloy 600 Round Pipe

Alloy 600 Round Pipe Chemical Analysis

Grade		C	Mn	Si	Fe	S	Cr	Cu	Ni
Inconel 600 Pipe	min.	–	–	–	6.0	–	14.0	–	72.0
Inconel 600 Pipe	max.	0.15	1.0	0.5	10.0	0.015	17.0	0.5	–

SCH40 Inconel 600 pipe Mechanical Characteristics

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
Inconel 600 Pipe	Psi – 95,000 , MPa -655	Psi – 45,000 , MPa – 310	40	–	–

Equivalent Material of Inconel 600 Seamless Pipe

Grade	UNS No	Old British		Euronorm		GOST	Japanese JIS
		BS	En	No	AFNOR
Inconel 600 Pipe	N06600	NA 13	NiCr15Fe	2.4816	NC15FE11M	МНЖМц 28-2,5-1,5	NCF 600

Available Stock of ASTM B167 pipe

Alloy	Product form	Dimension
ALLOY 600 (75 Ni/16 Cr)	Pipe; cold drawn, seamless, annealed	1.5 x 0.25 mm
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, seamless, annealed	2.0 x 0.5 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; seamless	3.0 x 0.4 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; cold drawn, annealed, seamless	3.0 x 0.5 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; cold drawn, annealed, seamless	4.0 x 0.25 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; cold drawn, seamless, annealed	4.0 x 0.5 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; seamless, annealed	4.0 x 1.0 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; seamless, cold drawn	4.5 x 0.5 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; cold drawn, seamless, annealed	5.0 x 0.5 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; annealed, seamless	5.0 x 1.0 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; seamless, hard drawn	5.0 x 1.0 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; seamless, annealed	6.0 x 0.5 mm
INCONEL 600 (75 Ni/16 Cr)	Pipe; on coil, seamless, annealed	6.0 x 1.0 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; cold drawn, seamless, annealed	6.0 x 1.0 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; hard drawn, seamless	6.0 x 1.5 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; seamless, annealed	6.35 x 1.63 mm (¼” x 0.064″)
ALLOY 600 (75 Ni/16 Cr)	Pipe; seamless, seamless, annealed	8.0 x 1.0 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; cold drawn, annealed, seamless	10.0 x 1.0 mm
ALLOY 600 (75 Ni/16 Cr)	Pipe; seamless	10.0 x 2.0 mm
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, annealed, pickled	12.7 x 1.7 mm (½” x 0.065″)
INCONEL 600 (75 Ni/16 Cr)	Pipe; seamless, annealed	13.72 x 1.65 mm (¼”nb Sch10s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; seamless, cold drawn, pickled, annealed	14.0 x 3.0 mm
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, annealed, pickled	15.0 x 1.5 mm
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, annealed	15.8 x 1.7 mm (5/8″ x 0.065″)
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, annealed, pickled	18.0 x 2.0 mm
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, pickled, annealed	21.34 x 1.65 mm (½”nb Sch5)
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, pickled, annealed	21.34 x 2.11 mm (½”nb Sch10s)
ALLOY 600 (75 Ni/16 Cr)	Pipe; cold drawn, annealed, pickled	21.34 x 2.77 mm (½”nb sch40s)
ALLOY 600 (75 Ni/16 Cr)	Pipe; cold drawn, annealed, pickled, seamless	25.4 x 1.65 mm (1″ x 0.065″)
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, seamless, annealed, pickled	26.67 x 2.11 mm (¾”nb Sch10s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, annealed, pickled	26.67 x 2.87 mm (¾”nb sch40s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, pickled, annealed	26.67 x 3.91 mm (¾”nb Sch80s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, annealed, pickled	30.0 x 2.5 mm
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, seamless, pickled, annealed	33.4 x 2.77 mm (1″nb Sch10s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, seamless, annealed, pickled	33.4 x 3.38 mm (1″nb Sch40s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, pickled, annealed	33.4 x 4.55 mm (1″nb Sch80s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, seamless, pickled, annealed	42.16 x 1.65 mm (1¼”nb sch5s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, seamless, annealed, pickled	42.16 x 3.56 mm (1¼”nb Sch40s)
ALLOY 600 (75 Ni/16 Cr)	Pipe; cold finished, seamless, annealed	48.26 x 2.77 mm (1½”nb Sch10s)
ALLOY 600 (75 Ni/16 Cr)	Pipe; cold finished, seamless, annealed	48.26 x 3.68 mm (1½”nb Sch40s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; seamless, cold drawn, annealed, pickled	53.5 x 3.0 mm
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, pickled, annealed	60.33 x 2.77 mm (2″nb sch10s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, pickled, annealed	60.33 x 3.91 mm (2″nb sch40s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; seamless, cold drawn, pickled, annealed	66.0 x 4.0 mm
INCONEL 600 (75 Ni/16 Cr)	Pipe; seamless, cold drawn, pickled, annealed	76.2 x 3.3 mm
INCONEL 600 (75 Ni/16 Cr)	Pipe; seamless, cold drawn, pickled, annealed	88.9 x 3.05 mm (3″nb sch10s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; seamless, cold drawn, pickled, annealed	88.9 x 5.49 mm (3″nb sch40s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, pickled, annealed	114.3 x 3.05 mm (4″nb sch10s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; cold drawn, pickled, annealed	114.3 x 6.02 mm (4″nb sch40s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; extruded, pickled, annealed	141.3 x 6.55 mm (5″nb sch40s)
INCONEL 600 (75 Ni/16 Cr)	Pipe; extruded, pickled, annealed	153.0 x 6.5 mm
INCONEL 600 (75 Ni/16 Cr)	Pipe; seamless, extruded, pickled, annealed	168.28 x 7.11 mm (6″nb sch40s)

ASTM B167 UNS N06600 Pipe Test

Micro and MacroTest
Positive Material Identification – PMI Testing
Hardness Test
Chemical Analysis – Spectro Analysis
Intergranular Corrosion (IGC) Test
Flaring Test
Flattening Test
Pitting Resistance Test
Mechanical Testing Such as Tensile of Area

Inconel 600 Seamless & ASTM B167 UNS N06600 Welded Pipe

Inconel 600 Seamless & ASTM B167 UNS N06600 Welded Pipe

Alloy 600 Seamless Pipe, Ni 600 Hot Finished Pipe supplier

AMS 5580 ASTM B167 UNS N06600 Welded Pipe, DIN 17742 Inconel 600 Clad Pipe, ASTM B829 600 Inconel Exhaust Pipe Supplier in UAE

Specification Chart of Inconel 600 Pipe

Inconel 600 welded pipe Price list

ASTM B167 Inconel 600 seamless pipe, Inconel 600 pipe Supplier in UAE, Buy ASTM B517 UNS N06600 Welded Pipe, Alloy 600 rectangular pipe at best price

Common Types Of Alloy 600 Seamless Pipe

Inconel 600 ERW Pipe Wall Thickness

ASTM B167 Inconel 600 seamless pipe Sizes

Get a Quote from 600 Inconel Seamless Pipe exporter, Prime quality Inconel N06600 Welded Pipe, ASME SB167 UNS N06600, ASTM B751 SCH40 Inconel 600 pipe check International Standard DIN 17754 WERKSTOFF Nr 2.4816 TÜV 305 AFNOR-NC 15 Fe

600 Inconel Seamless Pipe Standard Weight Chart

Inconel N06600 Welded Pipe Schedule Chart

Pressure Rating of Inconel WERKSTOFF NR. 2.4816 Pipe

long established Supplier of alloy 600 pipes, check DIN 17750 Pipe Price Per Kg, high-quality ASTM B167 UNS N06600 Pipe, Inconel 600 square pipe, 2.4816 Alloy 600 Round Pipe

Alloy 600 Round Pipe Chemical Analysis

SCH40 Inconel 600 pipe Mechanical Characteristics

Equivalent Material of Inconel 600 Seamless Pipe

Available Stock of ASTM B167 pipe

ASTM B167 UNS N06600 Pipe Test

Stocking Distributor of UNS N06600 Welded Pipe following exporter

Contact us to know more.

Product category

Explore more

Explore more

Let’s make it happen. Get in touch now!

+ 971 588988297

info@metallonpipings.ae

FDRK7375 Compass Building, Al Shohada Road, AL Hamra Industrial Zone-FZ, Ras Al Khaimah, United Arab Emirates
