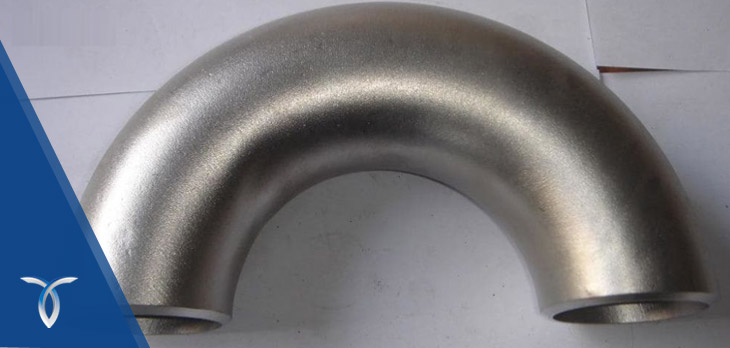

Inconel 800 / 800H / 800HT / 825 Long Radius Pipe Bend
Inconel 800 / 800H / 800HT / 825 Long Radius Pipe Bend
Inconel 800 / 800H / 800HT / 825 Long Radius Pipe Bend
Inconel 600 Long Radius Pipe Bend, Best Price of 625 Inconel Long Radius Pipe Bend Exporter, Inconel UNS N06600 Long Radius Pipe Bend, Global Supplier of Inconel WP625 Long Radius Pipe Bend, Inconel 600 Pipe Bends, Inconel ASTM B366 600 Long Radius Pipe Bend Dealer in UAE.
We are disciplined and we are devoted to precision. We stand by the principles of quality and safety, thereby adopting standards and processes that are secure, quality-driven and assure maximum output. For this, we invest in premium resources and dependable technology and machinery. Our greatest strength, however, is our skilled workforce. We are a supplier and exporter of Stainless Steel 904L Long Radius Pipe Bend which are made of grade 904L, considered to be a ‘non-stabilized’ steel grade, with added Carbon that improves its yield strength and tensile strength. WNR 1.4539 SS Long Radius Pipe Bends are also known as ‘high alloyed pipe bends’ as they contain small amounts of Molybdenum and Nickel, metals that render good corrosion resistance abilities. These 904L SS Long Radius Pipe Bend are appropriate to use in drainage systems, their elongated bodies allowing proper discharge of wastes.
ASME SB366M Inconel 600 / 625 Customized Long Radius Pipe Bend Wholesaler, Stockist of Steel WP625 Long Radius Pipe Bend, Wrought Austenitic Inconel 600 5D Long Radius Pipe Bend, Stockholder Of Inconel 625 10D Long Radius Pipe Bend, Inconel WP600 45 Degree Long Radius Pipe Bend Traders in UAE.
The aerospace, chemical and construction industry are benefitted through UNS N06600 Inconel 3D Pipe Bends as they have a high tensile strength of 490 Mpa, giving them massive powers, besides acid proof to a number acids, especially diluted sulphuric acid.
Standard Specification For Inconel 800 / 800H / 800HT / 825 Long Radius Pipe Bend
1.5 mm 2.0 mm 3.0 mm – greater wall thickness at request
Bend Radii
75 100 150 250 300 500 800 1,000 1,200 1,500 mm
Bending Radius(R)
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Bending angle (θ)
15°, 30°, 45°, 60°, 90°, 135°, 180°
Inconel 800 / 800H / 800HT / 825 Long Radius Pipe Bend for Chemical Composition
Grade
C
Mn
Si
S
Cu
Fe
Ni
Cr
Al
Ti
800
0.10 max
1.50 max
1.00 max
0.015 max
0.75 max
39.50 min
30.00 – 35.00
19.00 – 23.00
0.15 – 0.60
0.15 – 0.60
800H
0.05 – 0.10
1.50 max
1.00 max
0.015 max
0.75 max
39.50 min
30.00 – 35.00
19.00 – 23.00
0.15 – 0.60
0.15 – 0.60
800HT
0.06 – 0.10
1.50 max
1.00 max
0.015 max
0.75 max
39.50 min
30.00 – 35.00
19.00 – 23.00
0.15 – 0.60ᴬ
0.15 – 0.60ᴬ
825
0.05 max
1.00 max
0.5 max
0.03 max
1.50 – 3.00
22.00 min
38.00 – 46.00
19.50 – 23.50
0.02 max
0.06 – 1.20
Inconel 800 / 800H / 800HT / 825 Long Radius Pipe Bend For Mechanical Properties
Grade
Density
Melting Point
Tensile Strength
Yield Strength (0.2% Offset)
Elongation
800 / 800H / HT
7.94 g/cm³
1385 °C (2525 °F)
Psi – 75,000 , MPa – 520
Psi – 30,000 , MPa – 205
30 %
825
8.14 g/cm³
1400 °C (2550 °F)
Psi – 80,000 , MPa – 550
Psi – 32,000 , MPa – 220
30 %
Inconel 800 / 800H / 800HT / 825 Long Radius Pipe Bend For Equivalent Grades
STANDARD
WERKSTOFF NR.
UNS
JIS
BS
GOST
AFNOR
EN
OR
Inconel 800
1.4876
N08800
NCF 800
NA 15
ЭИ670
Z8NC32-21
X10NiCrAlTi32-20
XH32T
Inconel 800H
1.4958 / 1.4876
N08810
NCF 800H
NA 15(H)
ЭИ670
Z8NC33-21
X5NiCrAlTi31-20
XH32T
Inconel 800HT
1.4859 / 1.4876
N08811
NCF 800HT
NA 15(HT)
ЭИ670
–
X8NiCrAlTi32-21
XH32T
Inconel 825
2.4858
N08825
NCF 825
NA 16
ЭП703
NFE30C20DUM
NiCr21Mo
XH38BT
Inconel 800 / 800H / 800HT / 825 Long Radius Pipe Bend Packaging
Inconel 800 / 800H / 800HT / 825 Long Radius Pipe Bend are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our Inconel 800 / 800H / 800HT / 825 Long Radius Pipe Bend are manufactured in accordance with international standards. Inconel 800 / 800H / 800HT / 825 Long Radius Pipe Bend are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Inconel 800 / 800H / 800HT / 825 Long Radius Pipe Bend are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on 800 / 800H / 800HT / 825 Inconel Long Radius Pipe Bend.
Contact us to know more.
