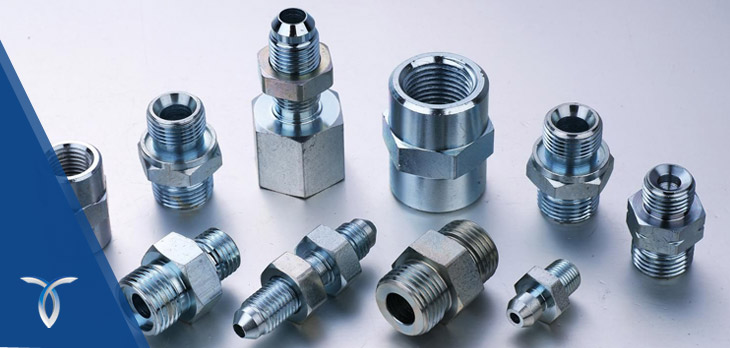

Nickel 200 Tube Fittings, Nickel 201 Male Tee, ASTM B564 Nickel 200 Female Elbow, Nickel 201 Caps and Plugs, Nickel 200 Port Connector, 201 Alloy Adapter Manufacturer and Suppliers In Mumbai, India.
Metallon Pipings FZ LLC is a leading supplier and exporter of Nickel 200 / 201 Tube Fittings which is available in all sizes, dimensions and prices. Nickel 200 / 201 Tube Fittings are used in the vast majority of today’s analytical and process instrumentation applications.
200 Alloy 90deg. Elbow, 201 Nickel Female Tee, Nickel 200 Connector, Nickel UNS N02200 Port Connector Exporter, Nickel 201 Tube Union, Nickel 200 45 deg. Elbow, Alloy DIN NR. 2.4066 Tube Fittings Exporter in UAE.
Nickel 200 / 201 Tube Fittings are leak tight, gas-tight seal in an easy to install disassemble and reassemble form. It is resistant to vibration fatigue and high pressures and extreme temperatures as it has robust tube grip with patented, two ferrule technology. We provide Nickel 200 / 201 Tube Fittings which are demanded by the customers for its sturdy structure, corrosion resistance and durability. The applications of Nickel 200 / 201 tube fittings are hydraulic applications, pneumatic applications and other applications.
Standard Specification For Nickel 200 / 201 Tube Fittings
Specifications
ASTM B366 ASME SB366
Size
6mm to 38mm to 1/4″ to 1 1/2″
Thread
NPT, BSP, BSPT, UNF, ISO, SAE etc.
Standards
ASTM B16 ASTM B 453
Nickel 200 / 201 Tube Fittings for Chemical Composition
Grade
C
Mn
Si
S
Cu
Fe
Ni
Nickel 200
0.15 max
0.35 max
0.35 max
0.01 max 0.25 max
0.40 max
99.0 min
Nickel 201
0.02 max
0.35 max
0.35 max
0.01 max
0.25 max
0.40 max
99.0 min
Nickel 200 / 201 Tube Fittings For Mechanical Properties
Element
Density
Melting Point
Tensile Strength
Yield Strength (0.2%Offset)
Elongation
Nickel 200
8.9 g/cm3
1446 °C (2635 °F)
Psi – 67000 , MPa – 462
Psi – 21500 , MPa – 148
45 %
Nickel 201
8.9 g/cm3
1446 °C (2635 °F)
Psi – 67000 , MPa – 462
Psi – 21500 , MPa – 148
45 %
Nickel 200 / 201 Tube Fittings For Equivalent Grades
STANDARD
WERKSTOFF NR.
UNS
JIS
BS
GOST
AFNOR
EN
Nickel 200
2.4066
N02200
NW 2200
NA 11
НП-2
N-100M
Ni 99.2
Nickel 201
2.4068
N02201
NW 2201
NA 12
НП-2
–
LC-Ni 99
Nickel 200 / 201 Tube Fittings Packaging
Nickel 200 / 201 Tube Fittings are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our Nickel 200 Tube Fittings are manufactured in accordance with international standards. Nickel 201 Tube Fittings are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Nickel 200 / 201 Tube Fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on Nickel 200 / 201 Tube Fittings.
Contact us to know more.
