Schedule 40 SS 304 pipe, SS 316L Schedule 40 Pipe thickness
Schedule 40 Stainless Steel Pipe is a category of stainless steel pipes used in piping of various applications. The applications vary such as air, oil, water and natural gas applications. There are various grades of stainless steel used to produce the sch40 pipes. The Schedule 40 SS 304 pipe is the most commonly used grade of pipe for its cost effectiveness. The material is strong with 215MPa minimum yield strength and 505MPa minimum tensile strength it has general corrosion resistance and good operating temperatures. But some applications need more corrosion resistant materials. The SS 316L Schedule 40 Pipe is more corrosion resistant than the 304 grade pipes.
It is particularly corrosion resistant to the chloride ion corrosion stress cracking. The material also has lower carbon levels which makes it ideal for welding and reduces the localized corrosion. The pipes should be under 10 inches. The 1 inch Schedule 40 Stainless Steel Pipe is used with smaller size pipe lines. The specification for these pipes is the ASTM 312 and there are pipes of 1ft and longer sizes. The dimensions are covered by ASME B36.19 standards. The SS 316L Schedule 40 Pipe has different classes as well and the most used is the class 150, a medium pressure class. Depending on the material, application and the pipe size the Seamless pipe schedule 40 is used in a variety of shapes as well. There are round pipes, square pipes and rectangular pipes. There are also welded pipes and ERW pipes. The dimensions such as the 1/2 schedule 40 SS pipe vary according to the application need as well. Most of these pipes are used in transmission lines but structural applications are also available. Please feel free to contact us for more information on the SS 316L schedule 40 pipe and the pricing
Buy 1 inch Schedule 40 Stainless Steel Pipe at the best price, Check Schedule 40 Stainless Steel Pipe Strength
Schedule 40 Stainless Steel Pipe Dimensions Chart
| Designation of Diameter | O/D | Nominal Wall Thickness | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIA | SCH.5S | SCH.5 | SCH 10S | SCH.10 | SCH.40S | SCH.40 | ||||||||
| (A) | (B) | Meter MM | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 1 | 0.23 | 1.2 | 0.27 | 1.73 | 0.37 | ||||||
| 8 | 1/4 | 13.7 | 1.2 | 0.37 | 1.65 | 0.49 | 2.24 | 0.64 | ||||||
| 10 | 3/8 | 17.2 | 1.2 | 0.47 | 1.65 | 0.63 | 2.31 | 0.87 | ||||||
| 15 | 1/2 | 21.3 | 1.65 | 0.01 | 1.65 | 0.81 | 2.11 | 1.02 | 2.11 | 1.02 | 2.77 | 1.29 | ||
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 1.65 | 1.03 | 2.11 | 1.3 | 2.11 | 1.3 | 2.87 | 1.71 | ||
| 25 | 1 | 33.4 | 1.65 | 1.31 | 1.65 | 1.31 | 2.77 | 2.13 | 2.77 | 2.13 | 3.38 | 2.54 | ||
| 32 | 11/4 | 24.2 | 1.65 | 1.67 | 1.65 | 1.67 | 2.77 | 2.73 | 2.77 | 2.73 | 3.56 | 3.44 | ||
| 40 | 11/2 | 48.3 | 1.65 | 1.93 | 1.65 | 1.93 | 2.77 | 3.16 | 2.77 | 3.16 | 3.68 | 4.11 | ||
| 50 | 2 | 60.3 | 1.65 | 1.93 | 1.65 | 2.42 | 2.77 | 3.99 | 2.77 | 3.99 | 3.91 | 5.52 | ||
| 65 | 21/2 | 73 | 2.11 | 3.75 | 2.11 | 3.75 | 3.05 | 5.34 | 3.05 | 5.34 | 5.16 | 8.77 | ||
| 80 | 3 | 88.9 | 2.11 | 4.59 | 2.11 | 4.59 | 3.05 | 6.56 | 3.05 | 6.56 | 5.49 | 11.47 | ||
| 90 | 31/2 | 101.6 | 2.11 | 5.25 | 2.11 | 5.25 | 3.05 | 7.53 | 3.05 | 7.53 | 5.74 | 13.78 | ||
| 100 | 4 | 114.3 | 2.11 | 5.93 | 2.11 | 5.93 | 3.05 | 8.5 | 3.05 | 8.5 | 6.02 | 6.32 | ||
| 125 | 5 | 141.3 | 2.77 | 9.61 | 2.77 | 9.61 | 3.4 | 11.74 | 3.43 | 11.74 | 6.55 | 2210 | ||
| 150 | 6 | 168.3 | 2.77 | 11.47 | 2.77 | 11.47 | 3.4 | 14.04 | 3.43 | 14.04 | 7.11 | 28.69 | ||
| 200 | 8 | 219.1 | 2.77 | 15 | 2.77 | 15 | 3.76 | 20.77 | 3.76 | 20.27 | 8.18 | 43.2 | ||
| 250 | 10 | 273.1 | 3.4 | 22.95 | 3.4 | 22.95 | 4.19 | 28.2 | 4.19 | 28.2 | 9.27 | 61.22 | ||
| 300 | 12 | 323.9 | 3.96 | 31.72 | 4.19 | 33.6 | 4.57 | 36.54 | 4.57 | 36.54 | 9.53 | 75.01 | 10.31 | 80.94 |
| 350 | 14 | 355.6 | 3.96 | 34.86 | 4.78 | 41.99 | 6.35 | 55.53 | 9.53 | 82.58 | 11.13 | 96 | ||
| 400 | 16 | 406.4 | 4.19 | 42.2 | 4.78 | 48.07 | 6.35 | 63.61 | 9.53 | 94.7 | 12.7 | 125.2 | ||
| 450 | 18 | 457.2 | 4.19 | 47.46 | 4.78 | 54.15 | 6.35 | 71.69 | 9.53 | 106.83 | 14.27 | 158.27 | ||
| 500 | 2C | 508 | 4.78 | 60.23 | 5.54 | 69.7 | 6.35 | 79.76 | 9.53 | 118.9 | 15.06 | 185.89 | ||
| 550 | 22 | 558.8 | 4.78 | 65.95 | 5.54 | 76.75 | 6.35 | 87.84 | 9.53 | 131.07 | 15.88 | 216.04 | ||
| 600 | 24 | 609.6 | 5.54 | 83.8 | 6.35 | 95.92 | 6.35 | 95.92 | 9.53 | 143.2 | 17.45 | 258.74 | ||
| 650 | 26 | 660.4 | 7.92 | 129.4 | 9.53 | 155.32 | ||||||||
| 700 | 28 | 711.2 | 7.92 | 139.47 | 9.53 | 167.44 | ||||||||
| 750 | 3C | 762 | 6.35 | 120.15 | 7.92 | 149.55 | 7.92 | 149.55 | 9.53 | 179.56 | ||||
| 800 | 32 | 812.8 | 7.92 | 159.62 | 9.53 | 191.69 | 17.48 | 348.11 | ||||||
| 850 | 34 | 863.6 | 7.92 | 169.64 | 9.53 | 203.74 | 17.48 | 370.22 | ||||||
| 900 | 36 | 914.4 | 7.92 | 179.77 | 9.53 | 215.93 | 19.05 | 427.09 | ||||||
| Designation of Diameter | O/D | Nominal Wall Thickness | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIA | SCH 80 S | SCH 80 | SCH 100 | SCH 120 | SCH. 140 | SCH.160 | SCH.XXS | |||||||||
| (A) | (B) | Meter MM | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 2.41 | 0.47 | ||||||||||||
| 8 | 1/4 | 13.7 | 3.02 | 0.82 | ||||||||||||
| 10 | 3/8 | 17.2 | 3.2 | 1.12 | ||||||||||||
| 15 | 1/2 | 21.3 | 3.73 | 1.64 | 4.75 | 1.97 | 7.47 | 2.59 | ||||||||
| 20 | 3/4 | 26.7 | 3.91 | 2.93 | 5.54 | 2.93 | 7.82 | 3.69 | ||||||||
| 25 | 1 | 33.4 | 4.55 | 3.29 | 6.35 | 4.3 | 9.09 | 5.53 | ||||||||
| 32 | 11/4 | 24.2 | 4.85 | 4.53 | 6.35 | 5.69 | 9.7 | 7.88 | ||||||||
| 40 | 11/2 | 48.3 | 5.08 | 5.49 | 7.14 | 7.35 | 10.16 | 9.69 | ||||||||
| 50 | 2 | 60.3 | 5.54 | 7.6 | 8.71 | 11.26 | 11.07 | 13.65 | ||||||||
| 65 | 21/2 | 73 | 7.01 | 11.59 | 9.53 | 15.15 | 14.02 | 20.72 | ||||||||
| 80 | 3 | 88.9 | 7.62 | 15.51 | 11.13 | 21.67 | 15.24 | 28.11 | ||||||||
| 90 | 31/2 | 101.6 | 8.08 | 18.92 | 16.15 | 34.56 | ||||||||||
| 100 | 4 | 114.3 | 8.56 | 22.66 | 11.13 | 28.75 | 13.49 | 34.05 | 17.12 | 41.66 | ||||||
| 125 | 5 | 141.3 | 9.53 | 31.44 | 12.7 | 40.9 | 15.88 | 49.87 | 19.05 | 58.31 | ||||||
| 150 | 6 | 168.3 | 10.97 | 43.21 | 14.27 | 55.03 | 18.24 | 68.53 | 21.95 | 79.1 | ||||||
| 200 | 8 | 219.1 | 12.7 | 65.63 | 15.06 | 76.93 | 18.24 | 91.73 | 20.62 | 102.47 | 23.01 | 112.97 | 22.23 | 108 | ||
| 250 | 10 | 273.1 | 12.7 | 82.8 | 15.06 | 97.27 | 18.24 | 116.38 | 21.41 | 134.9 | 25.4 | 157.51 | 28.58 | 174.95 | 25.4 | 155.5 |
| 300 | 12 | 323.9 | 12.7 | 98.95 | 17.45 | 133.88 | 21.41 | 162.14 | 25.4 | 189.82 | 28.58 | 211.31 | 33.32 | 242.4 | 25.4 | 189.82 |
| 350 | 14 | 355.6 | 12.7 | 109.04 | 19.05 | 160.54 | 23.8 | 197.74 | 27.76 | 227.88 | 31.75 | 257.47 | 35.71 | 286.04 | ||
| 400 | 16 | 406.4 | 12.7 | 125.2 | 21.41 | 206.4 | 26.19 | 249.34 | 30.94 | 290.88 | 36.53 | 338.32 | 40.46 | 370.74 | ||
| 450 | 18 | 457.2 | 12.7 | 141.35 | 23.8 | 258.29 | 29.36 | 314.54 | 34.93 | 369.34 | 39.67 | 414.74 | 45.24 | 466.67 | ||
| 500 | 2C | 508 | 12.7 | 157.51 | 26.19 | 315.97 | 32.54 | 387.41 | 38.1 | 448.3 | 44.45 | 515.94 | 49.99 | 573.31 | ||
| 550 | 22 | 558.8 | 12.7 | 173.66 | 28.57 | 379.7 | 34.92 | 457.83 | 41.27 | 535.17 | 47.62 | 609.3 | 53.97 | 682.57 | ||
| 600 | 24 | 609.6 | 12.7 | 189.82 | 30.94 | 448.3 | 38.89 | 555.76 | 46.02 | 649.44 | 52.37 | 730.72 | 59.51 | 819.7 | ||
| 650 | 26 | 660.4 | 12.7 | 205.97 | (24.66D-t) t 1000 Wt/pam + formula Weight Stainless Steel Pipe OD (mm) – W.T. (mm) XW.T. (mm) X 0.02466 = Kg. per mtr. | |||||||||||
| 700 | 28 | 711.2 | 12.7 | 222.13 | ||||||||||||
| 750 | 3C | 762 | 1270 | 238.28 | ||||||||||||
| 800 | 32 | 812.8 | 12.7 | 254.44 | ||||||||||||
| 850 | 34 | 863.6 | 12.7 | 270.5 | ||||||||||||
| 900 | 36 | 914.4 | 12.7 | 286.75 | ||||||||||||
Check Seamless pipe schedule 40 price list, SS 316L Schedule 40 Pipe Dimension, Schedule 40 Stainless Steel Pipe Wall Thickness
SCH 40S Pipe Wall Thickness
| Nominal size [inches] | Outside diameter [inches] | Outside diameter [mm] | Wall thickness [inches] | Wall thickness [mm] | Weight [lb/ft] | Weight [kg/m] |
|---|---|---|---|---|---|---|
| 1/2 | 0.840 | 21.3 | 0.083 | 2.11 | 0.68 | 1.00 |
| 3/4 | 1.050 | 26.7 | 0.083 | 2.11 | 0.87 | 1.29 |
| 1 | 1.315 | 33.4 | 0.109 | 2.77 | 1.41 | 2.11 |
| 1 1/4 | 1.660 | 42.2 | 0.109 | 2.77 | 1.82 | 2.71 |
| 1 1/2 | 1.900 | 48.3 | 0.109 | 2.77 | 2.1 | 3.13 |
| 2 | 2.375 | 60.3 | 0.109 | 2.77 | 2.66 | 3.96 |
| 2 1/2 | 2.875 | 73.0 | 0.120 | 3.05 | 3.56 | 5.29 |
| 3 | 3.500 | 88.9 | 0.120 | 3.05 | 4.37 | 6.50 |
| 3 1/2 | 4.000 | 101.6 | 0.120 | 3.05 | 5.01 | 7.46 |
| 4 | 4.500 | 114.3 | 0.120 | 3.05 | 5.66 | 8.42 |
| 5 | 5.563 | 141.3 | 0.134 | 3.40 | 7.82 | 11.64 |
| 6 | 6.625 | 168.3 | 0.134 | 3.40 | 9.35 | 13.91 |
| 8 | 8.625 | 219.1 | 0.148 | 3.76 | 13.50 | 20.10 |
| 10 | 10.750 | 273.1 | 0.165 | 4.19 | 18.79 | 27.96 |
| 12 | 12.750 | 323.9 | 0.180 | 4.57 | 24.34 | 36.22 |
| 14 | 14.000 | 355.6 | 0.188 | 4.78 | 27.97 | 41.62 |
| 16 | 16.000 | 406.4 | 0.188 | 4.78 | 32.02 | 47.65 |
| 18 | 18.000 | 457.0 | 0.188 | 4.78 | 36.05 | 53.65 |
| 20 | 20.000 | 508.0 | 0.218 | 5.54 | 46.42 | 69.09 |
| 22 | 22.000 | 559.0 | 0.218 | 5.54 | 51.14 | 76.10 |
| 24 | 24.000 | 610.0 | 0.250 | 6.35 | 63.93 | 95.13 |
| 30 | 30.000 | 762.0 | 0.312 | 7.92 | 99.60 | 148.22 |
Get Discount on Schedule 40 304 stainless steel pipe pressure rating, SCH 40S Seamless Pipe, View 1/2 schedule 40 SS pipe pressure rating

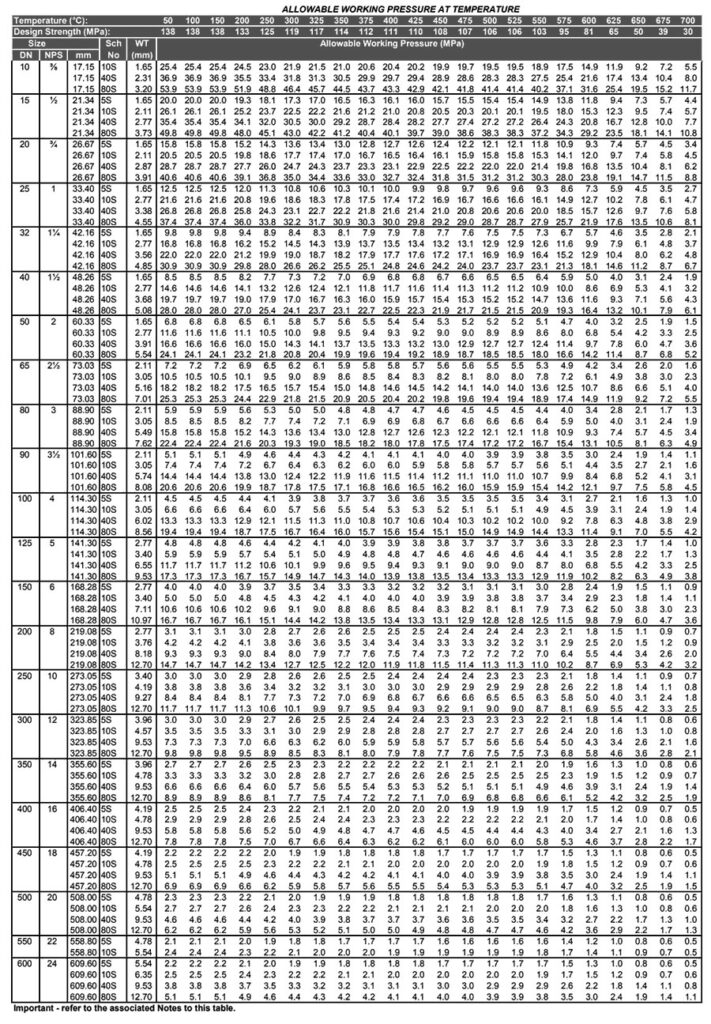

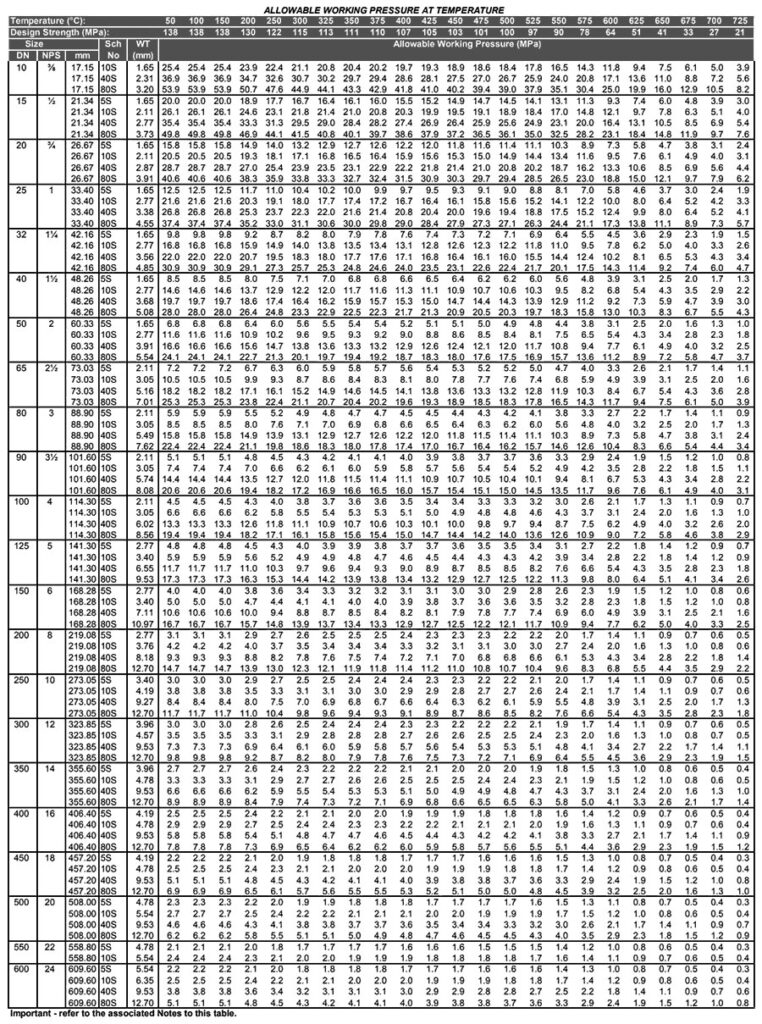

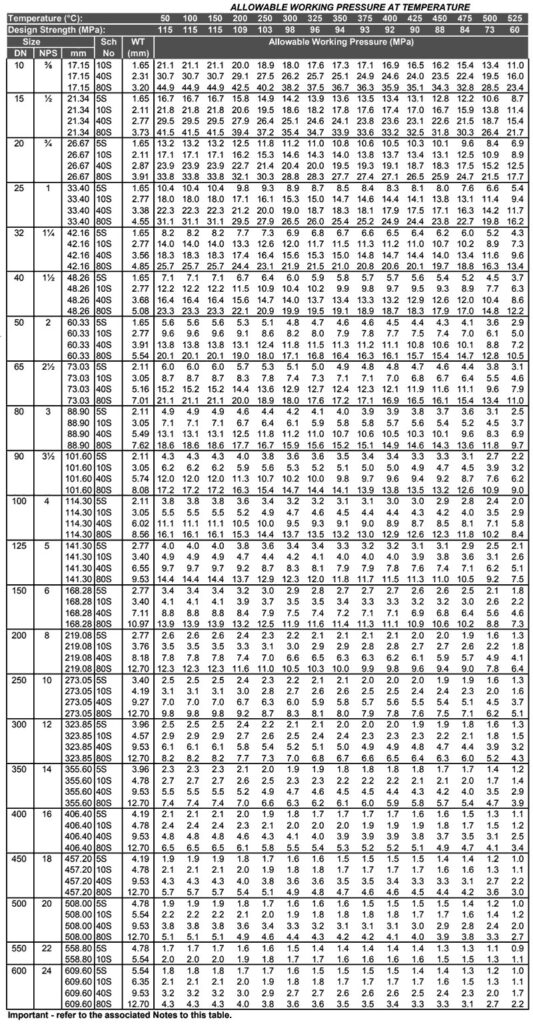

Pressure Rating Of Seamless schedule 40S pipe
