Schedule 80 Stainless Steel Pipe Schedule Chart
| Designation of Diameter | O/D | Nominal Wall Thickness | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIA | SCH.5S | SCH.5 | SCH 10S | SCH.10 | SCH.40S | SCH.40 | ||||||||
| (A) | (B) | Meter MM | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 1 | 0.23 | 1.2 | 0.27 | 1.73 | 0.37 | ||||||
| 8 | 1/4 | 13.7 | 1.2 | 0.37 | 1.65 | 0.49 | 2.24 | 0.64 | ||||||
| 10 | 3/8 | 17.2 | 1.2 | 0.47 | 1.65 | 0.63 | 2.31 | 0.87 | ||||||
| 15 | 1/2 | 21.3 | 1.65 | 0.01 | 1.65 | 0.81 | 2.11 | 1.02 | 2.11 | 1.02 | 2.77 | 1.29 | ||
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 1.65 | 1.03 | 2.11 | 1.3 | 2.11 | 1.3 | 2.87 | 1.71 | ||
| 25 | 1 | 33.4 | 1.65 | 1.31 | 1.65 | 1.31 | 2.77 | 2.13 | 2.77 | 2.13 | 3.38 | 2.54 | ||
| 32 | 11/4 | 24.2 | 1.65 | 1.67 | 1.65 | 1.67 | 2.77 | 2.73 | 2.77 | 2.73 | 3.56 | 3.44 | ||
| 40 | 11/2 | 48.3 | 1.65 | 1.93 | 1.65 | 1.93 | 2.77 | 3.16 | 2.77 | 3.16 | 3.68 | 4.11 | ||
| 50 | 2 | 60.3 | 1.65 | 1.93 | 1.65 | 2.42 | 2.77 | 3.99 | 2.77 | 3.99 | 3.91 | 5.52 | ||
| 65 | 21/2 | 73 | 2.11 | 3.75 | 2.11 | 3.75 | 3.05 | 5.34 | 3.05 | 5.34 | 5.16 | 8.77 | ||
| 80 | 3 | 88.9 | 2.11 | 4.59 | 2.11 | 4.59 | 3.05 | 6.56 | 3.05 | 6.56 | 5.49 | 11.47 | ||
| 90 | 31/2 | 101.6 | 2.11 | 5.25 | 2.11 | 5.25 | 3.05 | 7.53 | 3.05 | 7.53 | 5.74 | 13.78 | ||
| 100 | 4 | 114.3 | 2.11 | 5.93 | 2.11 | 5.93 | 3.05 | 8.5 | 3.05 | 8.5 | 6.02 | 6.32 | ||
| 125 | 5 | 141.3 | 2.77 | 9.61 | 2.77 | 9.61 | 3.4 | 11.74 | 3.43 | 11.74 | 6.55 | 2210 | ||
| 150 | 6 | 168.3 | 2.77 | 11.47 | 2.77 | 11.47 | 3.4 | 14.04 | 3.43 | 14.04 | 7.11 | 28.69 | ||
| 200 | 8 | 219.1 | 2.77 | 15 | 2.77 | 15 | 3.76 | 20.77 | 3.76 | 20.27 | 8.18 | 43.2 | ||
| 250 | 10 | 273.1 | 3.4 | 22.95 | 3.4 | 22.95 | 4.19 | 28.2 | 4.19 | 28.2 | 9.27 | 61.22 | ||
| 300 | 12 | 323.9 | 3.96 | 31.72 | 4.19 | 33.6 | 4.57 | 36.54 | 4.57 | 36.54 | 9.53 | 75.01 | 10.31 | 80.94 |
| 350 | 14 | 355.6 | 3.96 | 34.86 | 4.78 | 41.99 | 6.35 | 55.53 | 9.53 | 82.58 | 11.13 | 96 | ||
| 400 | 16 | 406.4 | 4.19 | 42.2 | 4.78 | 48.07 | 6.35 | 63.61 | 9.53 | 94.7 | 12.7 | 125.2 | ||
| 450 | 18 | 457.2 | 4.19 | 47.46 | 4.78 | 54.15 | 6.35 | 71.69 | 9.53 | 106.83 | 14.27 | 158.27 | ||
| 500 | 2C | 508 | 4.78 | 60.23 | 5.54 | 69.7 | 6.35 | 79.76 | 9.53 | 118.9 | 15.06 | 185.89 | ||
| 550 | 22 | 558.8 | 4.78 | 65.95 | 5.54 | 76.75 | 6.35 | 87.84 | 9.53 | 131.07 | 15.88 | 216.04 | ||
| 600 | 24 | 609.6 | 5.54 | 83.8 | 6.35 | 95.92 | 6.35 | 95.92 | 9.53 | 143.2 | 17.45 | 258.74 | ||
| 650 | 26 | 660.4 | 7.92 | 129.4 | 9.53 | 155.32 | ||||||||
| 700 | 28 | 711.2 | 7.92 | 139.47 | 9.53 | 167.44 | ||||||||
| 750 | 3C | 762 | 6.35 | 120.15 | 7.92 | 149.55 | 7.92 | 149.55 | 9.53 | 179.56 | ||||
| 800 | 32 | 812.8 | 7.92 | 159.62 | 9.53 | 191.69 | 17.48 | 348.11 | ||||||
| 850 | 34 | 863.6 | 7.92 | 169.64 | 9.53 | 203.74 | 17.48 | 370.22 | ||||||
| 900 | 36 | 914.4 | 7.92 | 179.77 | 9.53 | 215.93 | 19.05 | 427.09 | ||||||
| Designation of Diameter | O/D | Nominal Wall Thickness | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIA | SCH 80 S | SCH 80 | SCH 100 | SCH 120 | SCH. 140 | SCH.160 | SCH.XXS | |||||||||
| (A) | (B) | Meter MM | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 2.41 | 0.47 | ||||||||||||
| 8 | 1/4 | 13.7 | 3.02 | 0.82 | ||||||||||||
| 10 | 3/8 | 17.2 | 3.2 | 1.12 | ||||||||||||
| 15 | 1/2 | 21.3 | 3.73 | 1.64 | 4.75 | 1.97 | 7.47 | 2.59 | ||||||||
| 20 | 3/4 | 26.7 | 3.91 | 2.93 | 5.54 | 2.93 | 7.82 | 3.69 | ||||||||
| 25 | 1 | 33.4 | 4.55 | 3.29 | 6.35 | 4.3 | 9.09 | 5.53 | ||||||||
| 32 | 11/4 | 24.2 | 4.85 | 4.53 | 6.35 | 5.69 | 9.7 | 7.88 | ||||||||
| 40 | 11/2 | 48.3 | 5.08 | 5.49 | 7.14 | 7.35 | 10.16 | 9.69 | ||||||||
| 50 | 2 | 60.3 | 5.54 | 7.6 | 8.71 | 11.26 | 11.07 | 13.65 | ||||||||
| 65 | 21/2 | 73 | 7.01 | 11.59 | 9.53 | 15.15 | 14.02 | 20.72 | ||||||||
| 80 | 3 | 88.9 | 7.62 | 15.51 | 11.13 | 21.67 | 15.24 | 28.11 | ||||||||
| 90 | 31/2 | 101.6 | 8.08 | 18.92 | 16.15 | 34.56 | ||||||||||
| 100 | 4 | 114.3 | 8.56 | 22.66 | 11.13 | 28.75 | 13.49 | 34.05 | 17.12 | 41.66 | ||||||
| 125 | 5 | 141.3 | 9.53 | 31.44 | 12.7 | 40.9 | 15.88 | 49.87 | 19.05 | 58.31 | ||||||
| 150 | 6 | 168.3 | 10.97 | 43.21 | 14.27 | 55.03 | 18.24 | 68.53 | 21.95 | 79.1 | ||||||
| 200 | 8 | 219.1 | 12.7 | 65.63 | 15.06 | 76.93 | 18.24 | 91.73 | 20.62 | 102.47 | 23.01 | 112.97 | 22.23 | 108 | ||
| 250 | 10 | 273.1 | 12.7 | 82.8 | 15.06 | 97.27 | 18.24 | 116.38 | 21.41 | 134.9 | 25.4 | 157.51 | 28.58 | 174.95 | 25.4 | 155.5 |
| 300 | 12 | 323.9 | 12.7 | 98.95 | 17.45 | 133.88 | 21.41 | 162.14 | 25.4 | 189.82 | 28.58 | 211.31 | 33.32 | 242.4 | 25.4 | 189.82 |
| 350 | 14 | 355.6 | 12.7 | 109.04 | 19.05 | 160.54 | 23.8 | 197.74 | 27.76 | 227.88 | 31.75 | 257.47 | 35.71 | 286.04 | ||
| 400 | 16 | 406.4 | 12.7 | 125.2 | 21.41 | 206.4 | 26.19 | 249.34 | 30.94 | 290.88 | 36.53 | 338.32 | 40.46 | 370.74 | ||
| 450 | 18 | 457.2 | 12.7 | 141.35 | 23.8 | 258.29 | 29.36 | 314.54 | 34.93 | 369.34 | 39.67 | 414.74 | 45.24 | 466.67 | ||
| 500 | 2C | 508 | 12.7 | 157.51 | 26.19 | 315.97 | 32.54 | 387.41 | 38.1 | 448.3 | 44.45 | 515.94 | 49.99 | 573.31 | ||
| 550 | 22 | 558.8 | 12.7 | 173.66 | 28.57 | 379.7 | 34.92 | 457.83 | 41.27 | 535.17 | 47.62 | 609.3 | 53.97 | 682.57 | ||
| 600 | 24 | 609.6 | 12.7 | 189.82 | 30.94 | 448.3 | 38.89 | 555.76 | 46.02 | 649.44 | 52.37 | 730.72 | 59.51 | 819.7 | ||
| 650 | 26 | 660.4 | 12.7 | 205.97 | (24.66D-t) t 1000 Wt/pam + formula Weight Stainless Steel Pipe OD (mm) – W.T. (mm) XW.T. (mm) X 0.02466 = Kg. per mtr. | |||||||||||
| 700 | 28 | 711.2 | 12.7 | 222.13 | ||||||||||||
| 750 | 3C | 762 | 1270 | 238.28 | ||||||||||||
| 800 | 32 | 812.8 | 12.7 | 254.44 | ||||||||||||
| 850 | 34 | 863.6 | 12.7 | 270.5 | ||||||||||||
| 900 | 36 | 914.4 | 12.7 | 286.75 | ||||||||||||
Buy Sch 80 Steel Pipe, 1 inch schedule 80 steel pipe, View Schedule 80 steel pipe dimensions in mm
Dimension Standard Schedule 80 seamless pipe
| Nominal size [inches] | Outside diameter [inches] | Outside diameter [mm] | Wall thickness [inches] | Wall thickness [mm] | Weight [lb/ft] | Weight [kg/m] |
|---|---|---|---|---|---|---|
| 1/2 | 0.840 | 21.3 | 0.083 | 2.11 | 0.68 | 1.00 |
| 3/4 | 1.050 | 26.7 | 0.083 | 2.11 | 0.87 | 1.29 |
| 1 | 1.315 | 33.4 | 0.109 | 2.77 | 1.41 | 2.11 |
| 1 1/4 | 1.660 | 42.2 | 0.109 | 2.77 | 1.82 | 2.71 |
| 1 1/2 | 1.900 | 48.3 | 0.109 | 2.77 | 2.1 | 3.13 |
| 2 | 2.375 | 60.3 | 0.109 | 2.77 | 2.66 | 3.96 |
| 2 1/2 | 2.875 | 73.0 | 0.120 | 3.05 | 3.56 | 5.29 |
| 3 | 3.500 | 88.9 | 0.120 | 3.05 | 4.37 | 6.50 |
| 3 1/2 | 4.000 | 101.6 | 0.120 | 3.05 | 5.01 | 7.46 |
| 4 | 4.500 | 114.3 | 0.120 | 3.05 | 5.66 | 8.42 |
| 5 | 5.563 | 141.3 | 0.134 | 3.40 | 7.82 | 11.64 |
| 6 | 6.625 | 168.3 | 0.134 | 3.40 | 9.35 | 13.91 |
| 8 | 8.625 | 219.1 | 0.148 | 3.76 | 13.50 | 20.10 |
| 10 | 10.750 | 273.1 | 0.165 | 4.19 | 18.79 | 27.96 |
| 12 | 12.750 | 323.9 | 0.180 | 4.57 | 24.34 | 36.22 |
| 14 | 14.000 | 355.6 | 0.188 | 4.78 | 27.97 | 41.62 |
| 16 | 16.000 | 406.4 | 0.188 | 4.78 | 32.02 | 47.65 |
| 18 | 18.000 | 457.0 | 0.188 | 4.78 | 36.05 | 53.65 |
| 20 | 20.000 | 508.0 | 0.218 | 5.54 | 46.42 | 69.09 |
| 22 | 22.000 | 559.0 | 0.218 | 5.54 | 51.14 | 76.10 |
| 24 | 24.000 | 610.0 | 0.250 | 6.35 | 63.93 | 95.13 |
| 30 | 30.000 | 762.0 | 0.312 | 7.92 | 99.60 | 148.22 |
Ready Stock of 2 inch schedule 80 steel pipe, 316 ss schedule 80 pipes, Buy Jindal ss 304 schedules 80 pipes at reasonable cost

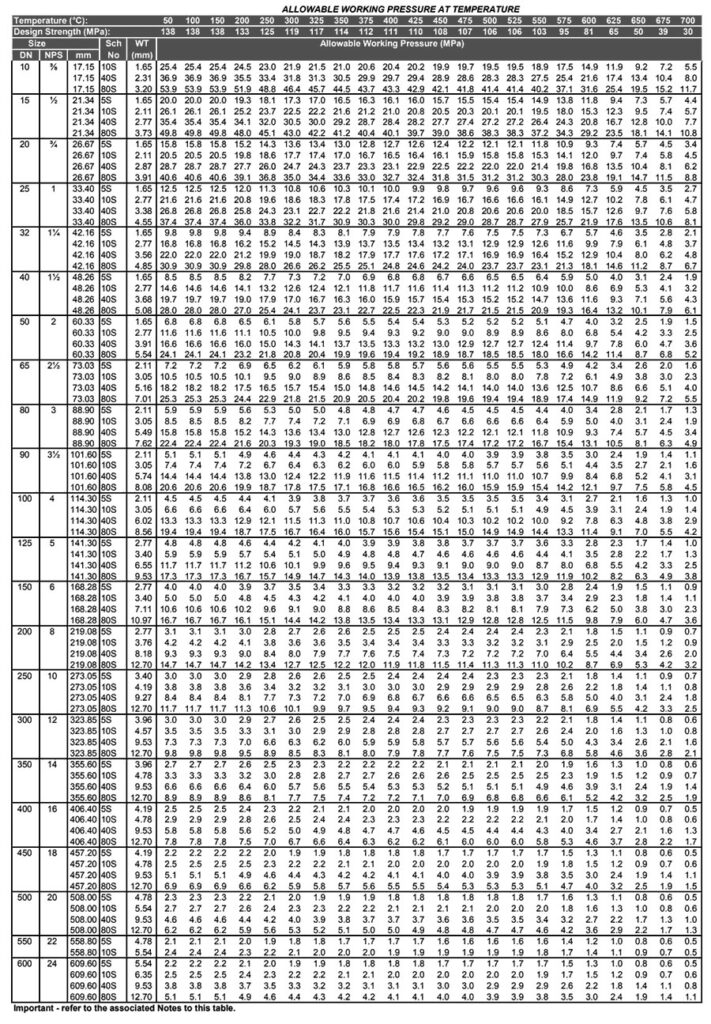

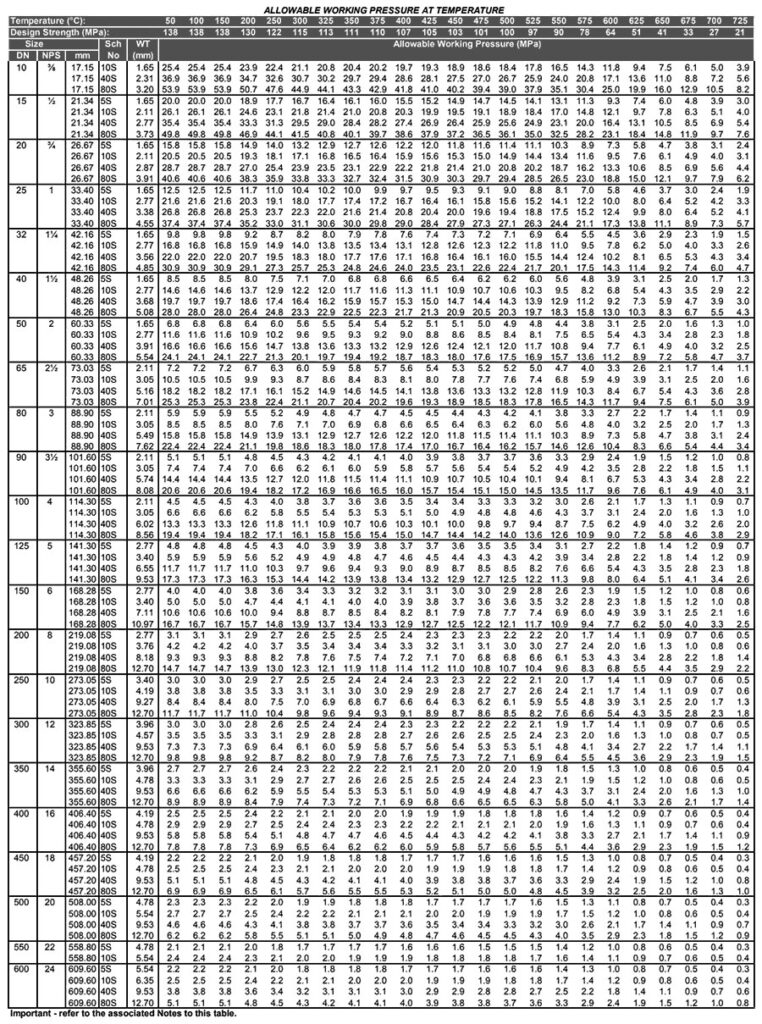

Pressure Rating Of 316 SS schedule 80 pipes
