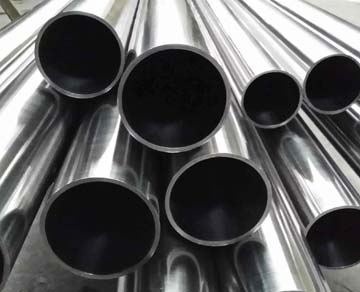

Stainless Steel 304L Pipe

SA 312 TP304L Pipe is one of the widely used grades of stainless steel made pipes in the Oil and Gas Industry. The 304 material has high strength and considerable corrosion resistance. The material is also cheaper than many other alloys and it is cost effective to use. The Stainless Steel 304L Pipe is a lower carbon version of the 304 material. The lower carbon content enables easy welding and reduces the localized corrosion. Also, the SS 304L Seamless Pipe is tougher and has high wear and tear properties.

Metallon Pipings FZ LLC is a exporter and supplier of various grades and specification of 304 Pipe such as the ASTM A554 TP304L. The application of these tube could be seen in the food processing, chemical processing, petroleum, oil and gas and in power generation industries. Our INOX 304L Pipe products are made of high quality standards. We manufacture the ASTM A270 TP304L tube under the standards and test them with international quality. There are electric resistant welded and the SS 304L seamless pipe available in this grade. The welded ones are stronger but the seamless ones are more precise in dimensions. You can get the 304L SS sanitary pipe and other specific application tubes from us. Please make an inquiry about your product needs with us. Metallon Pipings FZ LLC can supply Stainless Steel 304L Pipe to Saudi Arabia, Malaysia, Indonesia and MENA countries within 7 Days. Also export AISI 304L Seamless Pipes in Netherlands, USA, South Africa, Abu Dhabi and Qatar from ex-stock.

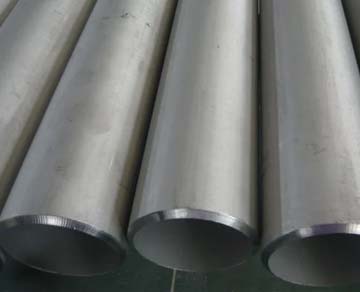

ASTM A312 TP304L Seamless Pipe Supplier in UAE

Stainless Steel 304L Pipe Specifications

Specifications	ASTM A312 / ASME SA312 TP 304L
Standard Size	1 / 8″ – 16″
Length	Custom
Schedule	5 to XXH
Heat Treatment	Normalized & Tempered, Normalized
Manufacturing Techniques	Normalized and as Rolled
Finishing Treatment	Cold Finished / Hot Finished
DN	DN 6 to DN 750
Form	Square, Round, Rectangle
End	Plain / Beveled
Group	ISO Group M

Manufacturer of SS 304 Pipe in ERW, Seamless and Welded Process, Check Dimensions

Pipe Size (INCHES)	Pipe Length (ft per square foot of surface)		Weight		Transverse Areas (in2) (MM)2			Volume (ft3/ft)	Diameter (in) (MM)		N.T (in) (MM)
Pipe Size (INCHES)	Internal Surface (ft)	External Surface (ft)	(kg/m)	(lb/ft)	Steel	Internal	External	Volume (ft3/ft)	Internal	External	N.T (in) (MM)
2 ½	1.55	1.33	8.62	5.79	1.70	4.79	6.49	0.0333	2.47	2.875	0.20
24	0.17	0.16	254.48	171.00	50.30	402.10	452.40	2.7930	22.63	24.000	0.69
1/8	14.20	9.43	0.36	0.24	0.07	0.06	0.13	0.0004	0.27	0.405	0.07
20	0.20	0.19	183.05	123.00	36.15	278.00	314.15	1.9260	18.81	20.000	0.59
¼	10.49	7.07	0.63	0.42	0.13	0.10	0.23	0.0007	0.36	0.540	0.09
18	0.23	0.21	156.26	105.00	30.85	224.00	254.85	1.5550	16.88	18.000	0.56
2	1.85	1.61	5.43	3.65	1.08	3.36	4.43	0.0233	2.07	2.375	0.15
3/8	7.75	5.66	0.84	0.57	0.17	0.19	0.36	0.0013	0.49	0.675	0.09
14	0.28	0.27	93.75	63.00	18.64	135.30	153.94	0.9354	13.13	14.000	0.44
½	6.14	4.55	1.26	0.85	0.25	0.30	0.55	0.0021	0.62	0.840	0.11
4	0.95	0.85	16.06	10.79	3.17	12.73	15.90	0.0884	4.03	4.500	0.24
12	0.32	0.30	79.77	53.60	15.74	111.90	127.64	0.7763	11.94	12.750	0.41
3 ½	1.08	0.95	13.56	9.11	2.68	9.89	12.56	0.0687	3.55	4.000	0.23
6	0.63	0.58	28.23	18.97	5.58	28.89	34.47	0.2006	6.07	6.625	0.28
1 ½	2.37	2.01	4.04	2.72	0.80	2.04	2.84	0.0141	1.61	1.900	0.15
3	1.25	1.09	11.27	7.58	2.23	7.39	9.62	0.0513	3.07	3.500	0.22
16	0.25	0.24	116.08	78.00	24.35	176.70	201.05	1.2230	15.00	16.000	0.50
¾	4.64	3.64	1.68	1.13	0.33	0.53	0.87	0.0037	0.82	1.050	0.11
10	0.38	0.36	60.24	40.48	11.90	78.85	90.76	0.5476	10.02	10.750	0.37
5	0.76	0.69	21.74	14.61	4.30	20.00	24.30	0.1389	5.05	5.563	0.26
1	3.64	2.90	2.50	1.68	0.49	0.86	1.36	0.0060	1.05	1.315	0.13
8	0.48	0.44	42.49	28.55	8.40	50.02	58.42	0.3552	7.98	8.625	0.32
1 ¼	2.77	2.30	3.38	2.27	0.67	1.50	2.16	0.0104	1.38	1.660	0.14

304 Stainless Steel Pipe Pressure Rating

Pipe Outside Diameter (INCHES)	W.T. of Pipe/Tube in (INCHES)
	Working Pressure in (psig)
	.049	.095	.028	.109	.065	.120	.083	.035
1/2	3200				4400			2300
1		3400		3900	2200	4300	2900
3/8	4400				6100			3100
1/4	7000		3700		9500			4800
5/16	5400				7300			3700
1/8			7900					10100
3/4	2200	4600			3000		4000

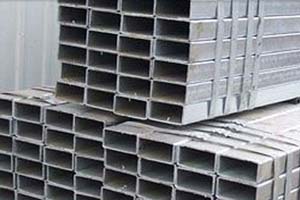

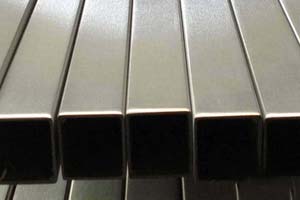

INOX AISI 304L Pipe in Round, Square and Rectangular Shapes

Dual-certified SUS 304L Pipe as per ASTM A312/A312M Standard

ASME B36.19M
ASME B36.19
EN 10216 – 2
EN 10216 – 5
DIN 17458
DIN 17456
EN 10088-2
EN 10217-7
EN 10088-3
NSF 61

Welding Electrodes of 304L Stainless Steel Pipe

Material	Grade of Stick Welding Electrode
SUS304L SS Pipe Welding	ER308

Stainless Steel 304L Pipe Chemical Composition

Grade	Si, (Silicon)	N, (Nitrogen)	P, (Phosphorous)	Ni, (Nickel)	S, (Sulfur)	Mn, (Manganese)	Cr, (Chromium)	C, (Carbon)
SS 304L	1.00 Max	0.10	0.045 Max	8.0-12.0	0.03	2.0 Max	18.0-20.0	0.03 Max

Mechanical Properties of 304L Stainless Steel Seamless Pipe

Grade	Tensile Strength in (Mpa)	Elongation in (5 Inch 50 MM)	Yield Strength in (0.2% Proof) (Mpa)	Hardness
Grade	Tensile Strength in (Mpa)	Elongation in (5 Inch 50 MM)	Yield Strength in (0.2% Proof) (Mpa)	Brinell(HB)	Rockwell B(HR B)
SS 304L	485 Mpa	40	170 Mpa	201 HB	92 HR B

ASTM A312 TP304L Pipe Equivalent

STANDARD	BS	AFNOR	EN	GOST	UNS	JIS	WERKSTOFF NR.
304L SS	3304S11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11	03Х18Н11	S30403	SUS 304L	1.4306 / 1.4307

Stainless Steel 304L Material Properties

Grade	Specific Heat 0-1000C in (J/kg.K)	Density (kg/m3)	Elastic Modulus in (GPa)	Electrical Resistivity in (n.m)	Mean Coefficient of Thermal Expansion in (m/m/0C)			Thermal Conductivity in (W/m.K)
Grade	Specific Heat 0-1000C in (J/kg.K)	Density (kg/m3)	Elastic Modulus in (GPa)	Electrical Resistivity in (n.m)	0-5380C	0-3150C	0-1000C	at 5000C	at 1000C
304L SS	500 J/kg.K	8000 kg/m3	193 GPa	720	18.4	17.8	17.2	21.5	16.2

Applications of Stainless Steel 304L Pipe

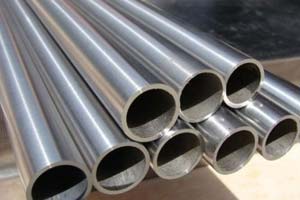

AISI 304L Welded Pipe Schedule Chart

NPS	Outer Diameter (OD)	SCH 10	SCH 40	SCH 80	SCH 5
1-1/2″	1.9	0.109	0.145	0.2	0.065
3″	3.5	0.12	0.216	0.3	0.083
1/2″	0.84	0.083	0.109	0.147	0.065
3-1/2″	4	0.12	0.226	0.318	0.083
4″	4.5	0.12	0.237	0.337	0.083
1-1/4″	1.66	0.109	0.14	0.191	0.065
2″	2.375	0.109	0.154	0.218	0.083
1″	1.315	0.109	0.133	0.179	0.065
2-1/2″	2.875	0.12	0.203	0.276	0.083
3/4″	1.05	0.083	0.113	0.154	0.065

Surface Finish of ASTM A312 TP304L Seamless Pipe

Surface Finish		External Surface (OD)		Internal Surface (ID)
		RA (Roughness Average)		RA (Roughness Average)
		μm	μ inch	μm	μ inch

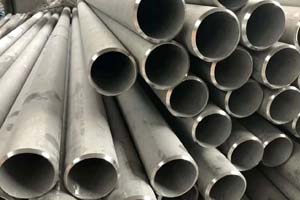

Electro Polish	(EP)	0.8	32	0.38,0.25,0.20;0.13	15,10,7,5
Annealed & Pickled	(AP)	1.0 or Not Defined	40 or Not Defined	Not Defined	Not Defined
Mechanical Polish	(MP)	0.8	32	1.0,0.8,0.6,0.5	40,32,25,20
Beight Annealed	(BA)	0.8	32	1.0,0.8,0.6,0.5	40,32,25,20
