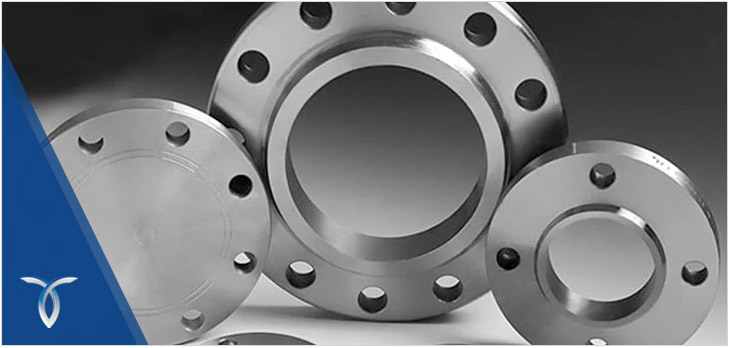

Stainless Steel 310H Pipe Flanges, SS 310S Weld Neck Flange, ANSI B16.5 SS 310H Orifice Flange, SS 310H Nippo Flanges, SS UNS S31000 Pipe Flanges, Stainless Steel 310S RTJ Flange Supplier in UAE.
Metallon Pipings FZ LLC is one of the prominent dealer and whole seller for high quality SS 310S / 310H Flanges, where the heat treatment is given on the continuously rolling hearth furnace and the furnace is fitted with temperature recorders and controllers. After the heat treatment process, Stainless Steel 310S Slip On Flanges and pipes are straightened and subjected to pickling for removing scales from the surface. In some cases, the required size of Stainless Steel 310H Threaded Flanges may not be obtained from the mill directly, so then the cold operation process can be used to obtain the desired size. In cold drawing process, Stainless Steel 310H Weld Neck Flanges are coated with oxalic and soap solution.
SS 310S Slip On Flanges, SS 310H Lap Joint Flange, SS DIN 1.4845 Socket Weld Flanges, ASTM A182 SS 310S Threaded Flanges, SS 310H Spacer, UNS S31009 SS WNRF Flanges Exporter, SS 310S Spectacle Blind Flange, SS 310H Spade Flanges, SS 310S Blind Flanges Dealer.
This solution in Stainless Steel 310S Blind Flanges acts as a lubricant to reduce friction while cold drawing operation. In the cold drawing process, Stainless Steel UNS S31009 / S31008 Socket Weld Flanges is drawn over the bench using die plugs. The drawn – out Stainless Steel 310S Lap Joint Flanges is then subjected to cleaning, heat treatment, pickling and straightening. Stainless Steel 310H Ring Joint Type Flanges is marked with grade of material, size, heat number and the stamp of third party inspection before passing on to stainless steel pipe exporters. Stainless Steel 310S Spectacle Blind Flanges thus produced will undergo certain testing and quality checks. This process for Stainless Steel 310H Spacer Flanges is followed by proper packing and dispatch.
Standard Specification For SS 310S / 310H Flanges
Specifications
ASTM A182 / ASME SA182
Size
1/2″ (15 NB) to 48″ (1200NB)
Standards
ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
SS 310S / 310H Pipe Flanges Chemical Composition
Grade
C
Mn
Si
P
S
Cr
Mo
Ni
N
SS 310S
0.08 max
2 max
1.00 max
0.045 max
0.030 max
24.00 – 26.00
0.75 max
19.00 – 21.00
53.095 min
SS 310H
0.04 – 0.10
2 max
1.00 max
0.045 max
0.030 max
24.00 – 26.00
–
19.00 – 21.00
53.885 min
SS 310S / 310H Plate Flanges Mechanical Properties
Density
Melting Point
Tensile Strength
Yield Strength (0.2%Offset)
Elongation
8.0 g/cm3
1400 °C (2550 °F)
Psi – 75000 , MPa – 515
Psi – 30000 , MPa – 205
35 %
7.9 g/cm3
1402 °C (2555 °F)
Psi – 75000 , MPa – 515
Psi – 30000 , MPa – 205
40 %
SS 310S / 310H Plate Flanges Equivalent Grades
STANDARD
WERKSTOFF NR.
UNS
JIS
BS
GOST
AFNOR
EN
SS 310S
1.4845
S31008
SUS 310S
310S16
20Ch23N18
–
X8CrNi25-21
SS 310H
–
S31009
–
–
–
–
–
Stainless Steel 310S / 310H Flanges Packaging
Stainless Steel 310S / 310H Flanges are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our SS 310S / 310H Flange are manufactured in accordance with international standards. Stainless Steel 310S / 310H Pipe Flange are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Stainless Steel 310S / 310H Plate Flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on 310S / 310H Stainless Steel Flanges.
Contact us to know more.
