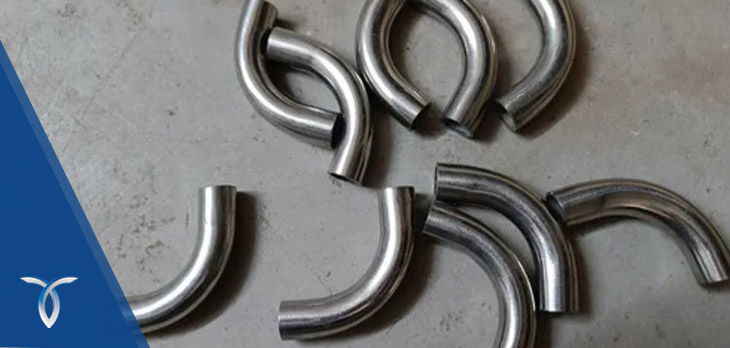

Stainless Steel 316 / 316Ti Long Radius Pipe Bend

Stainless Steel 316 / 316Ti Long Radius Pipe Bend

Stockist of Steel WP316 Long Radius Bend, Global Supplier of SS WP316Ti Long Radius Pipe Bend, SS 316 Long Radius Pipe Bend, SS UNS S31600 Long Radius Pipe Bend, Stainless Steel 316Ti Long Radius Pipe Bend, SS 316 Long Radius Pipe Bend, ANSI B16.9 Long Radius Pipe Bend, ANSI B16.28 Long Radius Pipe Bend, MSS SP-43 Long Radius Pipe Bend, MSS SP-75 Long Radius Pipe Bend Dealer in UAE.

We are disciplined and we are devoted to precision. We stand by the principles of quality and safety, thereby adopting standards and processes that are secure, quality-driven and assure maximum output. For this, we invest in premium resources and dependable technology and machinery. Our greatest strength, however, is our skilled workforce. We are a supplier and exporter of Stainless Steel 316 Long Radius Pipe Bend, which are superior grade pipe bends owing to the addition of Molybdenum that results into an overall corrosion resistance enhancement.

Werkstoff No 1.4841 SS Long Radius Pipe Bend, Stainless Steel 310 Long Radius Pipe Bend, Manufacturer Of ASTM A403 310 Stainless Steel Long Radius Pipe Bend, Stainless Steel ASTM A403 310 Long Radius Pipe Bend, 310H SS Long Radius Pipe Bend, ANSI B16.9 SS UNS S31009 3D Long Radius Pipe Bend in UAE.

Our ASTM A182 Stainless Steel 316 Long Radius Pipe Bend are available in several bend angles, they are obtained through the process of welding as they contain low Carbon which nullifies the possibility of Carbide precipitation during welding. The high Nickel content manages to prevent sensitization at grain boundaries, avoiding intergranular corrosion; a feature our UNS S31600 SS Long Radius Pipe Bend, making them favourable to function in oilfield Fabrications and offshore cranes services. A mixed resistance harboured due to the mix of Nickel and Molybdenum, in WNR 1. 4401 SS Long Radius Pipe Bend, wins the battle against every corrosion causing element, be it hydrochloric, acetic or sulphuric acid.

Standard Specification For SS 316 / 316Ti Long Radius Pipe Bend

SpecificationsASTM A403 & ASME SA403
DimensionsASME/ANSI B16.9 / B16.28 and MSS SP-43 / SP-75
SizeSeamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″)
Outer Diameter38.0 mm – 206.0 mm
Wall Thickness1.5 mm / 2.0 mm / 3.0 mm – greater wall thickness at request
Bend Radius75 / 100 / 150 / 250 / 300 / 500 / 800 / 1,000 / 1,200 / 1,500 mm
Bending Radius(R)R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Bending angle (θ)15°, 30°, 45°, 60°, 90°, 135°, 180°

SS 316 / 316Ti Long Radius Pipe Bend for Chemical Composition

GradeCMnSiPSCrMoNiFe
SS 3160.08 max2.0 max1.0 max0.045 max0.030 max16.00 – 18.002.00 – 3.0011.00 – 14.0067.845 min
SS 316Ti0.08 max2.0 max0.75 max0.045 max0.030 max16.00 – 18.002.00 – 3.0010.00 – 14.0068.395 min

SS 316 / 316Ti Long Radius Pipe Bend For Mechanical Properties

GradeDensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
SS 3168.0 g/cm31400 °C (2550 °F)Psi – 75000 , MPa – 515Psi – 30000 , MPa – 20535 %
SS 316Ti8.0 g/cm31399 °C (2550 °F)Psi – 75000 , MPa – 515Psi – 30000 , MPa – 20535 %

SS 316 / 316Ti Long Radius Pipe Bend For Equivalent Grades

STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
SS 3161.4401 / 1.4436S31600SUS 316316S31 / 316S33Z7CND17‐11‐02X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316Ti1.4571S31635SUS 316Ti320S3108Ch17N13M2TZ6CNDT17‐123X6CrNiMoTi17-12-2

Stainless Steel 316 / 316Ti Long Radius Pipe Bend Packaging

Stainless Steel 316 / 316Ti Long Radius Pipe Bend are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our SS 316 / 316Ti Long Radius Pipe Bend are manufactured in accordance with international standards. Stainless Steel 316 / 316Ti Long Radius Pipe Bend are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Stainless Steel 316 / 316Ti Long Radius Pipe Bend are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on 316 / 316Ti Stainless Steel Long Radius Pipe Bend.

Contact us to know more.
