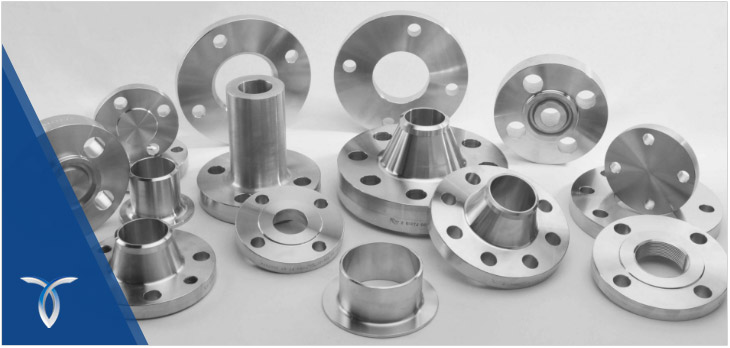

SS UNS S31700 Pipe Flanges, ANSI B16.5 SS 317l Orifice Flange, Stainless Steel 317 Pipe Flanges, 150# ANSI SS 317L Flanges, SS 317 Spacer, Stainless Steel 317L Slip On Flanges Supplier in UAE.
Metallon Pipings FZ LLC leading stockiest, exporter, and supplier of high quality SS 317 Flanges, which are hardened machining and becomes more difficult and probably impossible. Stainless Steel 317L Slip On Flanges is capable of attaining, after heat treatment, the highest strength, hardness and wear resistance of all the stainless alloys. It’s very high carbon content of 1.0% is responsible for these characteristics, which make Stainless Steel 317 Threaded Flanges particularly suited to such applications as ball bearings and valve parts. Stainless Steel UNS S31700 Weld Neck Flanges have lower attainable hardness but slightly higher corrosion resistances, where chips are tough and stringy so chip breakers are important.
SS 317 Blind Flanges, SS 317L Spacer, SS DIN 1.4449 Socket Weld Flanges, ASTM A182 SS F317 Threaded Flanges, ASME SA182 SS 317L Lap Joint Flange, SS 317 Spectacle Blind Flange, SS 317L Spade Flange, 317 SS WNRF Flanges Exporter, SS 317L Weld Neck Flange Dealer.
Corrosion resistance is generally lower than the common austenitic Stainless Steel 317 Blind Flanges, and their useful operating temperature range is limited by their loss of ductility at sub – zero temperatures and loss of strength by over-tempering at elevated temperatures. In the annealed condition, Stainless Steel 317L Socket Weld Flanges is relatively easily machined; approximately the same as for high speed steel. The great benefit of Stainless Steel 317 Lap Joint Flanges (and of other precipitation hardening grades of stainless steel) is that they are generally supplied in the solution treated condition, in which they are just machinable, and then can be age hardened to achieve quite high strengths. This aging treatment in Stainless Steel 317L Ring Joint Type Flanges is so low in temperature that there is no significant distortion.
Standard Specification For SS 317 / 317L Flanges
Specifications
ASTM A182 / ASME SA182
Size
1/2″ (15 NB) to 48″ (1200NB)
Standards
ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
SS 317 / 317L Pipe Flanges Chemical Composition
Grade
C
Mn
Si
P
S
Cr
Mo
Ni
N
SS 317
0.08 max
2 max
1.00 max
0.045 max
0.030 max
18.00 – 20.00
3.00 – 4.00
11.00 – 15.00
57.845 min
SS 317L
0.035 max
2 max
1.00 max
0.045 max
0.030 max
18.00 – 20.00
3.00 – 4.00
11.00 – 15.00
57.89 min
SS 317 / 317L Plate Flanges Mechanical Properties
Grade
Density
Melting Point
Tensile Strength
Yield Strength (0.2%Offset)
Elongation
SS 317
7.9 g/cm3
1400 °C (2550 °F)
Psi – 75000 , MPa – 515
Psi – 30000 , MPa – 205
35 %
SS 317L
7.9 g/cm3
1400 °C (2550 °F)
Psi – 75000 , MPa – 515
Psi – 30000 , MPa – 205
35 %
Equivalent Grades for SS 317 / 317L Plate Flanges
STANDARD
WERKSTOFF NR.
UNS
JIS
BS
GOST
AFNOR
EN
SS 317
1.4449
S31700
SUS 317
–
–
–
–
SS 317L
1.4438
S31703
SUS 317L
–
–
–
X2CrNiMo18-15-4
Stainless Steel 317 / 317L Flanges Packaging
Stainless Steel 317 Flanges are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our SS 317L Flange are manufactured in accordance with international standards. Stainless Steel 317 Pipe Flange are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Stainless Steel 317L Plate Flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on 317 Stainless Steel Flanges.
Contact us to know more.
Looking for more details on our products? Fill up the form and our team of experts will contact you shortly
