Stainless Steel UNS S34700 Long Radius Pipe Bend, Global Supplier of SS WP347H Long Radius Pipe Bend, Stainless Steel 347 Long Radius Pipe Bend, Best Price of 347 Stainless Steel Long Radius Pipe Bend Exporter, SS 347 Long Radius Pipe Bend, Stainless Steel ASTM A403 UNS S34709 Long Radius Pipe Bend Dealer in UAE.

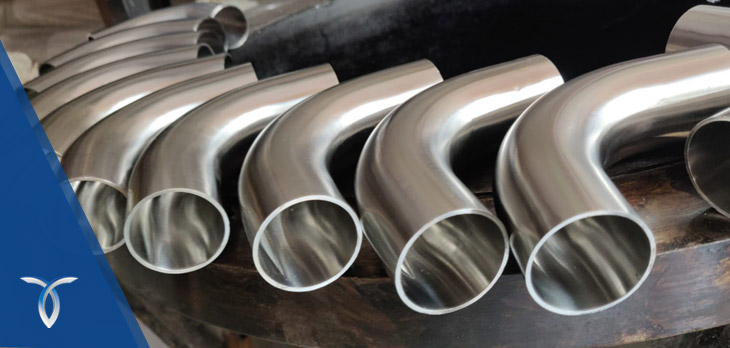

We are disciplined and we are devoted to precision. We stand by the principles of quality and safety, thereby adopting standards and processes that are secure, quality-driven and assure maximum output. For this, we invest in premium resources and dependable technology and machinery. Our greatest strength, however, is our skilled workforce. We are a supplier and exporter of Stainless Steel 347 / 347H Long Radius Pipe Bend which are Niobium stabilised stainless steel pipe bends that provide resistance to sensitization at higher temperatures. Our ASME SA182 Stainless Steel 347 / 347H 3D Long Radius Pipe Bend have a smoother bend that has a radius equal to 3x of the pipe’s diameter, suitable to use in the general refinery piping systems, where it counters general corrosion due to its good mechanical properties. UNS S34700/34709 Stainless Steel Long Radius Pipe Bend are an inexpensive alternative compared to other costly bends, their induction bending process making it possible for us to sell them at affordable prices.
Wrought Austenitic Stainless Steel 347H 5D Long Radius Pipe Bend, Stockholder Of Stainless Steel 347 10D Long Radius Pipe Bend, Stockist of Steel WP347 Long Radius Pipe Bend, ASME SA403M Stainless 347H Customized Long Radius Pipe Bend Wholesaler, Stainless Steel WP347 45 Degree Long Radius Pipe Bend Traders in UAE.
We supply SS WNR 1.4550/ WNR 1. 4961 Long Radius bends to the cement, engineering and fertilizer industry.
Standard Specification For SS 347 / 347H Long Radius Pipe Bend
SS 347 / 347H Long Radius Pipe Bend for Chemical Composition
Grade
C
Mn
Si
P
S
Cr
Mo
Ni
Fe
SS 347
0.08 max
2.0 max
1.0 max
0.045 max
0.030 max
17.00 – 20.00
10xC – 1.10
9.00 – 13.00
62.74 min
SS 347H
0.04 – 0.10
2.0 max
1.0 max
0.045 max
0.030 max
17.00 – 20.00
8xC – 1.10
9.00 – 13.00
63.72 min
SS 347 / 347H Long Radius Pipe Bend For Mechanical Properties
Grade
Density
Melting Point
Tensile Strength
Yield Strength (0.2%Offset)
Elongation
SS 347
8.0 g/cm3
1454 °C (2650 °F)
Psi – 75000 , MPa – 515
Psi – 30000 , MPa – 205
35 %
SS 347H
8.0 g/cm3
1454 °C (2650 °F)
Psi – 75000 , MPa – 515
Psi – 30000 , MPa – 205
35 %
SS 347 / 347H Long Radius Pipe Bend For Equivalent Grades
STANDARD
WERKSTOFF NR.
UNS
JIS
BS
GOST
AFNOR
EN
SS 347
1.4550
S34700
SUS 347
–
08Ch18N12B
–
X6CrNiNb18-10
SS 347H
1.4961
S34709
SUS 347H
–
–
–
X6CrNiNb18-12
Stainless Steel 347 / 347H Long Radius Pipe Bend Packaging
Stainless Steel 347 / 347H Long Radius Pipe Bend are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our SS 347 / 347H Long Radius Pipe Bend are manufactured in accordance with international standards. Stainless Steel 347 / 347H Long Radius Pipe Bend are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Stainless Steel 347 / 347H Long Radius Pipe Bend are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on 347 / 347H Stainless Steel Long Radius Pipe Bend.
Contact us to know more.
Looking for more details on our products? Fill up the form and our team of experts will contact you shortly
