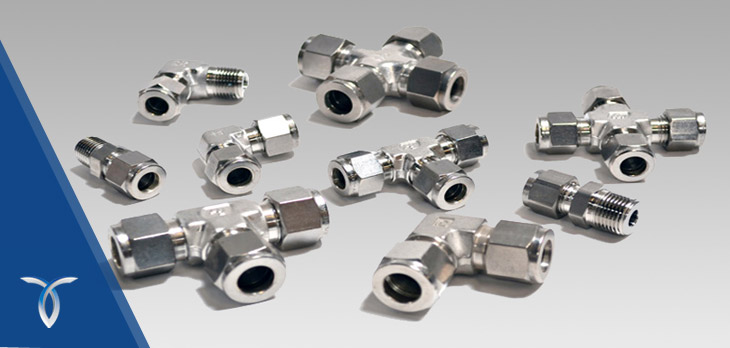

Stainless Steel 347 / 347H Tube Fittings

ANSI B16.11 Stainless Steel 347 Tube Fittings, SS S34700 Tube Fittings, ASTM A182 347 SS Tube 45 Elbow, SS 1.4550 90 Elbow, Stainless Steel 347H Tube Fittings, Stainless Steel 347H Tube Fittings Supplier in UAE.

We are engaged in offering a wide range of Stainless Steel 347/347H Tube Fittings, Stainless Tube Fittings, and Stainless Steel Pipe Fittings, which includes Male Connectors, Female Connectors, Stainless Steel Union and Other Stainless Steel Tube Fittings.

SS 347 Male Connector, Stainless Steel 347H High Pressure Tube Fittings, Stainless Steel 347 Reducers Stockist, ASME SA 182 SS 347H Union, 347 SS Port Connector, SUS 347H Tube Fittings, SS 347 Tube Male Tee, Stainless Steel 347H Union Exporter in UAE.

Metallon Pipings FZ LLC is one of the leading Exporter, and Supplier of SS 347/347H Tube Fittings using high quality raw materials as per customer specific requirements. Our offered range of stainless steel tube fittings is widely used in various application industries such as power plants, automobile, heavy engineering, offshore and chemical etc.

Standard Specification For SS 347 / 347H Tube Fittings

Specifications	ASTM A/ASME SA213/A249/A269
Dimensions	ASTM, ASME and API
Size	1/8″NB TO 30″NB IN
Thickness	0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
Schedule	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type	Seamless / ERW / Welded / Fabricated / LSAW Tubes
Form	Round, Square, Rectangular, Hydraulic Etc
Length	Single Random, Double Random & Cut Length.
End	Plain End, Beveled End, Treaded

SS 347 / 347H Tube Fittings for Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
SS 347	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 – 20.00	10xC – 1.10	9.00 – 13.00	62.74 min
SS 347H	0.04 – 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 – 20.00	8xC – 1.10	9.00 – 13.00	63.72 min

SS 347 / 347H Tube Fittings For Mechanical Properties

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
SS 347	8.0 g/cm3	1454 °C (2650 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %
SS 347H	8.0 g/cm3	1454 °C (2650 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

SS 347 / 347H Tube Fittings For Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 347	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10
SS 347H	1.4961	S34709	SUS 347H	–	–	–	X6CrNiNb18-12

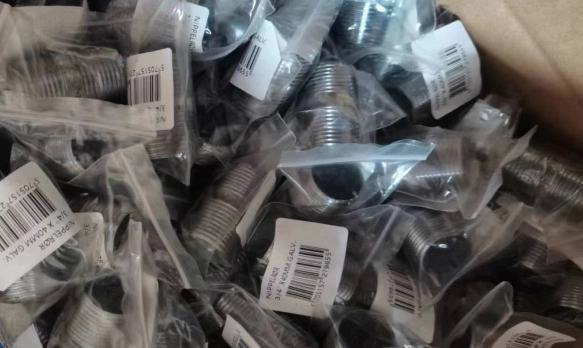

Stainless Steel 347 / 347H Tube Fittings Packaging

Stainless Steel 347 / 347H Tube Fittings are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our SS 347 Tube Fittings are manufactured in accordance with international standards. Stainless Steel 347H Tube Fittings are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Stainless Steel 347 / 347H Tube Fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on 347 / 347H Stainless Steel Tube Fittings.

Contact us to know more.
