Stainless Steel Square Tube

SS 304 Square Tubing, 316 SS Square Tube Supplier

Stainless Steel Square Tube is one form of the pipes. There are round, square, rectangular, hexagonal and hydraulic pipe types in the stainless steel varieties. Metallon Pipings FZ LLC is a leading supplier of the SS 304 square tubing in different dimensions and scales. There are 304, 316 grades of austenitic stainless steels that are mostly used in industries. There are also other types of stainless steel pipes such as duplex, ferritic, martensitic and alloy steel materials. Some known branded pipes such as the Jindal SS square tube are also available.

The square cross section of the tubes provides good geometric strength. The pipes are therefore used in high strength applications. There are high pressure and high temperature services such as the heat exchangers which use the pipes as well. The 316 ss square tubing is strong and corrosion resistant. The 316 material has chromium, nickel and molybdenum in the composition. This combination allows for increased corrosion resistance with 215MPa minimum yield strength 505MPa minimum tensile strength. The tubes can also operate under temperatures up to 870 degrees Celsius. The SS Square Welded Tube has use cases in the oil and gas, petroleum, petrochemical, construction and in structural applications as well. There are higher grades such as the SS317 Square Tubes which are made of the 317 grade material which has 517MPa minimum tensile strength. It is useful in high strength demanding applications. The ASTM A270 Seamless Square Tube is used in high pressure, high temperature services as well as general corrosive services too. Please contact us for the full catalog of the SS square tube and the pricing.

Best price of Stainless Steel Square ERW Tube in UAE, cut to size ASTM A270 square Tube.

Specification Chart of Stainless Steel Square Tubes

Pipe Size	12.75 X 12.75, 15 X 15, 20 X 20, 25 X 25, 30 X 30, 40 X 40, 50 X 50, 60 X 60, 75 X 75, 80 X 80, 90 X 90, 100 X100
Stainless Steel Square Pipe Grades	TP – 304/L/H, TP – 316/L/H/Ti, TP – 317L, TP – 321/H, TP – 347/H, 202, JT – 7, J4 – 1, TP – 409/L, TP – 410, TP – 430Ti, TP 439
Stainless Steel SquarePipe Standards	ASTM A249 – A269 – A312 – A358 – A409 – A554 – A778 – A789 – A790
TOLERANCE on Length	Commercial Length: 6000mm +/- 30mm Fix Length: from 1200 mm up to 12000mm with a tolerance up to -0/+ 5mm
Stainless Steel Square Pipe Finish	Polished Grit 120 – 600, Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1mm,Mirror Polished

SS square tube exporter in UAE available in various grades, finish and sizes

Buy SS 304 square Tubing, SS317 Square Tubes, ASTM A270 Seamless Square Tube at factory price in UAE

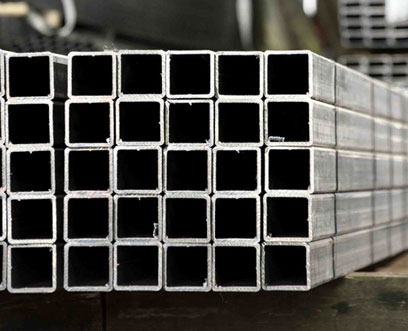

Basic Types Of SS 304 square tubing

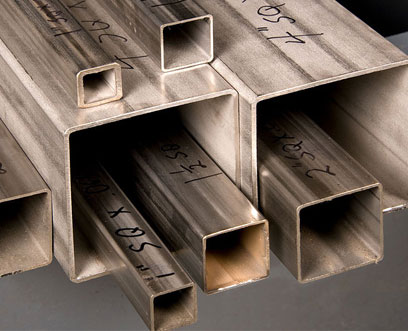

stainless steel rectangle square tube mirror finished 20*20mm

SS square tube exporter in UAE provide next day delivery at nearest location

Jindal SS square tube Dimension Standard

MM	0.65	0.80	0.90	0.95	1.00	1.20	1.50	2.00	2.50
12.5 x 12.5	0.075	0.091	0.102	0.107	0.112	0.133	0.163
20 x 20				0.176	0.184	0.220	0.271	0.354	0.433	0.508
25 x 25				0.221	0.232	0.277	0.343	0.450	0.553	0.652
30 x 30				0.267	0.280	0.335	0.415	0.516	0.673	0.796
38 x 38				0.340	0.358	0.427	0.531	0.700	0.866	1.027
40 x 40				0.358	0.376	0.450	0.559	0.738	0.898	1.084
50 x 50					0.473	0.565	0.703	0.930	1.153	1.372

SS square tube exporter in UAE as per ASME B36.19 standard

Check Stainless Steel Square Tubes Dimension chart, Ready stock of Jindal Stainless Steel Square Tubes, SS Square Welded Tube

Standard Weight Chart of SS Square Welded Tube

Square Hollow Section	Size	kg / m
Black SS Square Pipe	12 x 12 x 1.5 mm	0.59
Silver SS Square Pipe	15 x 15 x 1.2 mm	0.54
Welded Stainless Steel Square Pipe	15 x 15 x 1.5 mm	0.66
Stainless Steel Box Pipe	20 x 20 x 1.2 mm	0.73
Stainless Steel ERW Square Pipes	20 x 20 x 1.5 mm	0.90
Stainless Steel Square Pipe	20 x 20 x 2.0 mm	0.18
SS Square Pipe	25 x 25 x 1.2 mm	0.93
Ferritic Stainless Steel Square Pipe	25 x 25 x 1.5 mm	1.15
Austenitic Stainless Steel Square Pipe	25 x 25 x 2.0 mm	1.50
Martensitic Stainless Steel Square Pipe	25 x 25 x 3.0 mm	2.22
Austenitic Chromium Nickel Stainless Steel Square Pipe	30 x 30 x 1.2 mm	1.11
Chromium Nickel Stainless Steel Square Pipe	30 x 30 x 1.5 mm	1.37
Chromium Stainless Steel Square Pipe	30 x 30 x 2.0 mm	1.84
Ferritic Stainless Steel grade Square Pipe	30 x 30 x 3.0 mm	2.72
Austenitic Stainless Steel grade Square Pipe	40 x 40 x 1.2 mm	1.50
Martensitic Stainless Steel grade Square Pipe	40 x 40 x 1.5 mm	1.86
Austenitic and Ferritic Stainless Steel Square Pipe	40 x 40 x 2.0 mm	2.45
Super Austenitic Stainless Steel Square Pipe	40 x 40 x 3.0 mm	3.76

Stainless Steel Square ERW Tube Schedule Chart

PIPE	NB SIZES	SCH 5	SCH 10	SCH 40	SCH 80	SCH 160
Stainless Steel Square Pipe	1/8″
Stainless Steel Square Pipe	1/4″
SS Square Pipe	3/8″
Ferritic Stainless Steel Square Pipe	1/2″
Austenitic Stainless Steel Square Pipe	3/4″
Martensitic Stainless Steel Square Pipe	1″
Austenitic Chromium Nickel Stainless Steel Square Pipe	1 1/4″
Chromium Nickel Stainless Steel Square Pipe	1 1/2″
Chromium Stainless Steel Square Pipe	2″
Ferritic Stainless Steel grade Square Pipe	2 1/2″
Austenitic Stainless Steel grade Square Pipe	3″
Martensitic Stainless Steel grade Square Pipe	4″
Austenitic and Ferritic Stainless Steel Square Pipe	5″
Super Austenitic Stainless Steel Square Pipe	6″

View Stainless Steel Square Pipe Dimensions And Weights, Ready Stock of SS square tube, 304 SS square tubing, Check 316 Stainless steel square tubing sizes chart

ASTM A270 square Tube Size Chart In Mm

Nominal		SS Square Pipe Schedule 5			SS Square Pipe Schedule 10			SS Square Pipe Schedule 40
Inch	MM	Wt./MM	Kg./M	Kg./Ft	Wt./MM	Kg./M	Kg./Ft	Wt./MM	Kg./M	Kg./Ft
1 / 2	21	1.65	0.801	0.244	2.11	0.999	0.305	2.77	1.270	0.387
3 / 4	21.30	1.65	1.020	0.311	2.11	1.280	0.390	2.87	1.680	0.512
1	26.70	1.65	1.290	0.393	2.77	2.090	0.637	3.38	2.500	0.762
1 1 / 4	33.40	1.65	1.650	0.503	2.77	2.690	0.820	3.56	3.380	1.030
1 1 / 2	42.20	1.65	1.900	0.579	2.77	3.110	0.948	3.68	4.050	1.230
2	48.30	1.65	3.340	0.728	2.77	3.920	1.200
2 1 / 2	73.00	2.11	3.690	1.130	3.05	5.260	1.600
3	88.90	2.11	4.510	1.380	3.05	6.450	1.970
3 1 / 2	101.60	2.11	5.190	1.580	3.05	7.400	2.260

Stainless Steel Square Pipe Chemical Composition Table

STAINLESS STEEL PIPE GRADES	UNS	C	Mn	P	S	Si	Cr	Ni	Mo
TP304	S30400	0.08	2	0.045	0.03	1	18.0-20.0	8.0-11.0
TP304L	S30403	0.035	2	0.045	0.03	1	18.0-20.0	8.0-13.0
TP316	S3160	0.08	2	0.045	0.03	1	16.0-18.0	11.0-14.0	2.0-3.0
TP316L	S31603	0.035	2	0.045	0.03	1	16.0-18.0	10.0-14.0	2.0-3.0

SS square tube Mechanical Properties

Material	Heat	Temperure	Tensile Strength	Yield Strength	Elongation %, Min
	Treatment	Min.	Ksi (MPa), Min.	Ksi (MPa), Min.
		º F(º C)
TP304	Solution	1900 (1040)	75(515)	30(205)	35
TP304L	Solution	1900 (1040)	70(485)	25(170)	35
TP316	Solution	1900(1040)	75(515)	30(205)	35
TP316L	Solution	1900(1040)	70(485)	25(170)	35
