Introduction
Constantly being exposed to seawater, chlorides, high humidity, and corrosive chemicals may quickly deteriorate conventional piping materials in the marine and desalination sectors, which operate in some of the harshest environments on earth. For long-term dependability, safety, and economical operation, choosing the appropriate piping material is crucial.
One of the most dependable nickel-copper alloys for marine and seawater applications is Monel 400 Pipes. They are a popular option for offshore platforms, desalination plants, shipbuilding, power generating, and chemical processing facilities due to their remarkable resistance to seawater corrosion, biofouling, and stress corrosion cracking.
The characteristics, benefits, uses, specifications, and selection factors of Monel 400 pipes for desalination and maritime projects are examined in this handbook.
What Are Monel 400 Pipes?
The composition of Monel 400, a solid-solution nickel-copper alloy, is roughly 63% nickel and 28–34% copper, with trace quantities of silicon, iron, manganese, and carbon. This special formulation maintains exceptional mechanical strength over a broad temperature range and offers exceptional corrosion resistance in both freshwater and saltwater settings.
Monel 400 is a favored material for vital maritime piping systems because it works remarkably well in continually flowing seawater, in contrast to many other stainless steels.
To satisfy the demands of various industrial applications, Monel 400 pipes are offered in seamless and welded versions.
Key Properties of Monel 400 Pipes
Exceptional Seawater Corrosion Resistance
One of the most important advantages of Monel 400 is its outstanding resistance to seawater corrosion. The alloy performs exceptionally well in both static and fast-moving seawater, where many conventional metals experience rapid deterioration.
This makes Monel 400 an ideal solution for:
- Seawater intake pipelines
- Marine cooling systems
- Offshore piping
- Desalination facilities
High Mechanical Strength
Monel 400 maintains excellent tensile strength and toughness under demanding operating conditions. Its high strength allows it to withstand high-pressure systems while maintaining structural integrity.
This property makes it suitable for:
- High-pressure piping
- Offshore platforms
- Marine process systems
- Industrial cooling circuits
Excellent Resistance to Chlorides
One of the most difficult situations for piping materials is one that is high in chloride. Excellent resistance to corrosion caused by chloride makes Monel 400 less likely to cause early pipe failure and expensive maintenance.
Resistance to Stress Corrosion Cracking
Stress corrosion cracking is a common issue in many alloys exposed to seawater and chlorides. Monel 400 has excellent resistance to this type of corrosion, ensuring greater reliability in critical piping systems.
Good Weldability and Fabrication
Monel 400 can be fabricated using standard industrial welding methods. Its good weldability simplifies installation and reduces fabrication costs for large projects.
Wide Operating Temperature Range
Monel 400 maintains its mechanical properties across a broad temperature range, making it suitable for both low-temperature and moderately high-temperature applications.
Chemical Composition of Monel 400
The excellent performance of Monel 400 is due to its balanced chemical composition, which typically includes:
- Nickel: 63% minimum
- Copper: 28–34%
- Iron: Maximum 2.5%
- Manganese: Maximum 2%
- Carbon: Maximum 0.3%
- Silicon: Maximum 0.5%
- Sulfur: Maximum 0.024%
The high nickel content provides corrosion resistance, while copper enhances strength and resistance to seawater environments.
Advantages of Monel 400 Pipes
Monel 400 offers several benefits that make it a preferred material for marine and desalination projects.
Long Service Life
Its superior corrosion resistance allows Monel 400 piping systems to operate efficiently for decades with minimal degradation.
Reduced Maintenance Costs
Because the alloy resists corrosion and biofouling, maintenance requirements are significantly lower than with conventional carbon steel systems.
Improved Reliability
Monel 400 maintains consistent performance even in highly corrosive environments, reducing unexpected shutdowns and equipment failures.
Excellent Marine Performance
The alloy performs exceptionally well in saltwater applications, making it one of the most reliable materials for offshore and coastal infrastructure.
Cost-Effective Lifecycle
Although the initial investment is higher than standard stainless steel, the lower maintenance requirements and extended service life often result in lower overall lifecycle costs.
Applications of Monel 400 Pipes

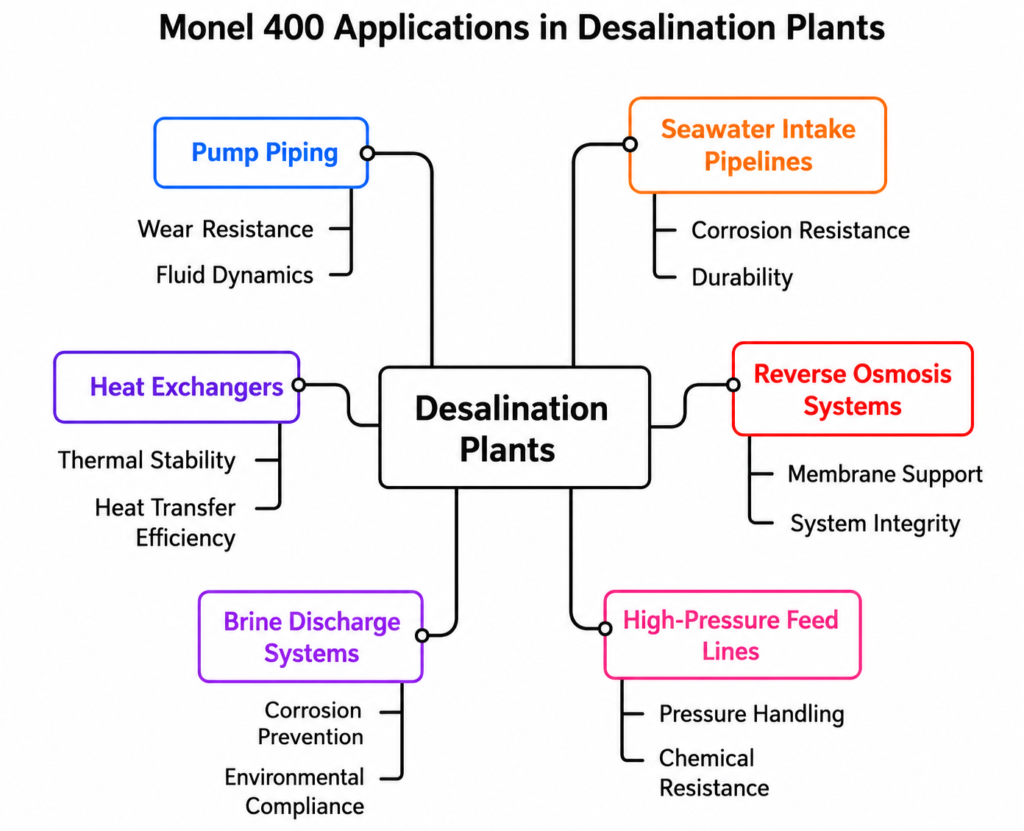

Desalination Plants
Desalination facilities process large volumes of seawater under high pressure and challenging operating conditions. Monel 400 is widely used in:
- Seawater intake pipelines
- Reverse osmosis systems
- High-pressure feed lines
- Brine discharge systems
- Heat exchangers
- Pump piping
Its corrosion resistance ensures reliable long-term operation.
Marine and Shipbuilding Industry
Ships and offshore vessels require piping systems capable of withstanding continuous exposure to seawater.
Typical applications include:
- Ballast water systems
- Fire protection systems
- Cooling water pipelines
- Bilge systems
- Marine process piping
Offshore Oil and Gas Platforms
Offshore installations operate in highly corrosive marine environments where material reliability is essential.
Monel 400 pipes are used for:
- Seawater cooling systems
- Firewater systems
- Utility piping
- Offshore process lines
- Pump discharge systems
Power Generation Plants
Power stations located near coastal regions often use seawater for cooling purposes.
Monel 400 is commonly installed in:
- Condenser systems
- Cooling water circuits
- Heat exchangers
- Circulating water systems
Chemical Processing Industry
Monel 400 also performs well in certain chemical processing environments involving acids, alkalis, and salt solutions.
Applications include:
- Chemical transfer pipelines
- Process equipment
- Storage systems
- Heat exchangers
Standards and Specifications
Monel 400 pipes are manufactured according to internationally recognized standards to ensure quality and performance.
Common specifications include:
- ASTM B165 – Seamless Pipe and Tube
- ASTM B725 – Welded Pipe
- ASTM B775 – Welded Pipe for Corrosive Service
- ASTM B366 – Pipe Fittings
- ASTM B564 – Forged Components
- ASME SB165
- ASME SB725
- ASME SB366
These standards define material composition, dimensions, testing requirements, and mechanical properties.
Monel 400 vs Stainless Steel
Many engineers compare Monel 400 with stainless steel when selecting materials for marine applications.
For highly corrosive marine and desalination environments, Monel 400 generally provides superior long-term performance.
Factors to Consider When Selecting Monel 400 Pipes
Before selecting Monel 400, engineers should evaluate:
Operating Environment
Assess chloride concentration, seawater exposure, and chemical compatibility.
Pressure and Temperature
Ensure the selected pipe dimensions and wall thickness match the operating conditions.
Fabrication Requirements
Choose seamless or welded pipes based on project specifications and installation requirements.
Lifecycle Cost
Although Monel 400 has a higher purchase price, its durability often reduces maintenance and replacement costs over the life of the system.
Compliance with Standards
Verify that the material meets applicable ASTM, ASME, and project-specific requirements.
Choosing a Reliable Monel 400 Pipe Supplier
Selecting the right supplier is just as important as choosing the correct material. A reliable supplier should provide:
- Certified Monel 400 materials
- Compliance with ASTM and ASME standards
- Mill Test Certificates (MTC)
- EN 10204 3.1 certification
- Third-party inspection support
- Complete material traceability
- Global export capabilities
- Technical assistance for material selection
Partnering with an experienced supplier helps ensure consistent product quality and timely delivery for critical projects.
Conclusion
One of the most reliable piping options for desalination and maritime applications is Monel 400 pipes. They are the best option for offshore platforms, desalination plants, shipbuilding, power production, and coastal industrial sites due to their exceptional resistance to seawater corrosion, chlorides, stress corrosion cracking, and biofouling.
Monel 400 offers outstanding long-term value through increased service life, reduced maintenance costs, and greater operational reliability, even though the initial investment may be more than that of traditional materials. Project owners may create robust and effective piping systems that can function dependably in the most challenging marine conditions for decades by choosing the right pipe specifications, adhering to international standards, and collaborating with a reliable supplier.
